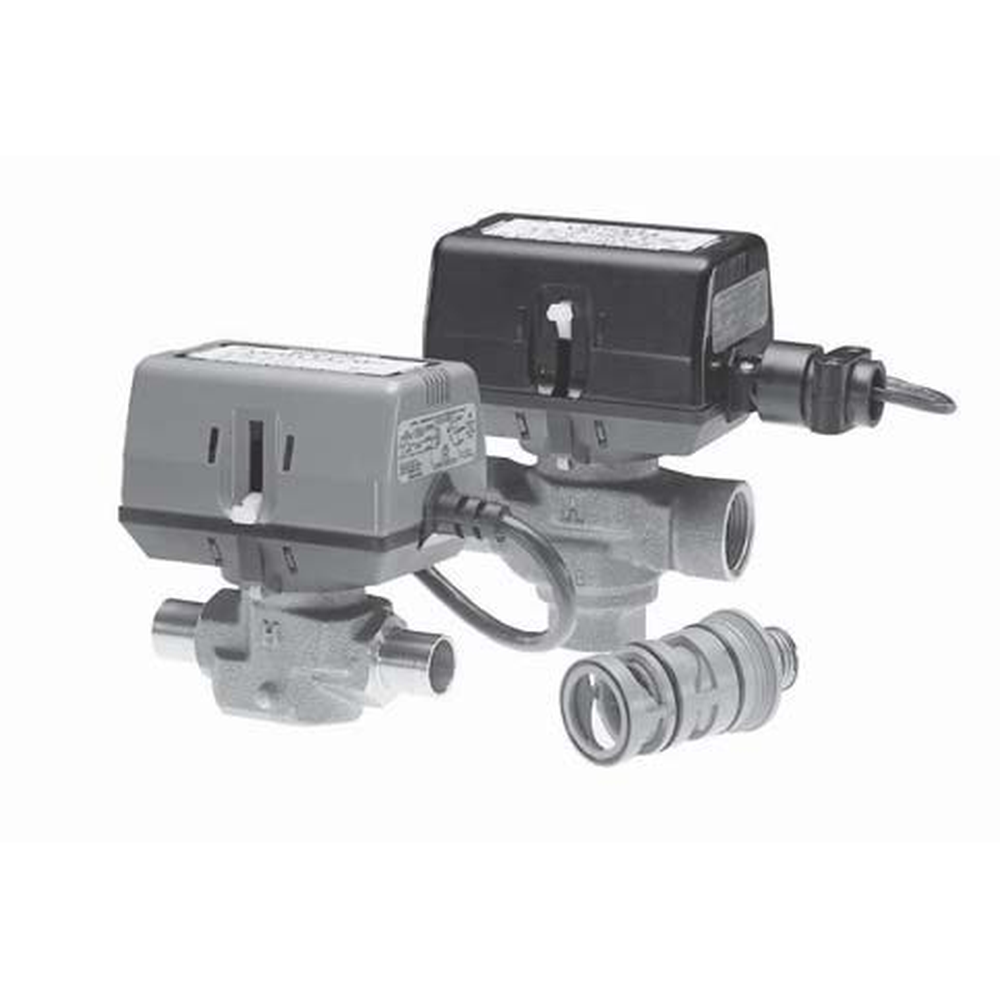

Honeywell Home VC8110ZZ32 2-position low volt actuator for VC series valves

Roll over image to zoom in Click on image to zoom

Honeywell Home 2-Position Low Volt Actuator for VC Series Valve VC8110ZZ32/E - Bulk Egg-Crate Pack

Name: Honeywell Home 2-Position Low Volt Actuator for VC Series Valve VC8110ZZ32/E - Bulk Egg-Crate Pack
Brand: Honeywell Home
SKU: HONE-VC8110ZZ32/E
Price: 65.01 USD
Availability: InStock

Honeywell HomeSKU: HONE-VC8110ZZ32/E

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$65.01

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–2 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Control Signal	SPST, two-position
Supply Voltage	24 V AC
Frequency	60 Hz
Power Consumption	6 VA
Drive Time	6 sec
Fail-Safe	Stays in place
Close-off Pressure	60 psid
Stroke	0.4 in.
Connection Type	6-pin Molex(TM) connector
Connection Length	8 in.
Used With	VC Series Valve
Application	HVAC
Includes	Trane label
Protection Class	IP40, double insulated
Dimensions	2.8 in high x 3.7 in wide x 2.7 in deep
Approvals	UL Recognized (File MH11826), CSA Certified (LR1322-367), CE
Packaging	Egg-crate pack (/E version)
Warranty	1 year

Installation Instructions for VC2, VC4, VC60, VC8 On-Off Actuators (English) PDF ↗

Which version do I need? Same part and specifications as VC8110ZZ32/U (individually boxed); only the packaging differs. This VC8110ZZ32/E is bulk egg-crate pack. See also: Honeywell Home VC8110ZZ32/U 2-Position Low Volt Actuator for VC Series Valve - Individually Boxed.

The VC8110ZZ32/E is a two-position, 24 VAC actuator for Honeywell Home VC series valve bodies. It mounts on the valve assembly and drives the cartridge open and closed on a signal from the zone control.

It takes an SPST two-position signal, draws 6 VA, and has a 6-second drive time. Wiring connects through a 6-pin Molex connector. The /E version is packed in egg-crate packaging, and Resideo lists the same specifications as for the VC8110ZZ32/U. A Trane label is included.

What a complete VC zone valve takes: a valve assembly and an actuator, ordered separately. This listing is the actuator.

VC valve assemblies this actuator works with

Brand: Honeywell Home
Manufacturer Part #: VC8110ZZ32/E
Series: VC
Control type: Two-position, SPST
Voltage: 24 V AC, 60 Hz
Connector: 6-pin Molex
Category: Zone Valve Actuators

Full Specifications

Application	HVAC
Approvals and Standards	UL Recognized, File# MH11826, CSA Certified: LR1322-367, CE Approval: 89/336/EEC, CE Approval: 73/23/EEC
For Use With	VC Series Valve
Compatible With	Use in cold, warm, and hot water applications
Control Signal	SPST, Two position
Includes	Trane label
Mounting Type	Direct Coupled
Supply Voltage	24 V AC
Power Supply Frequency	60 Hz
Power Consumption	6 VA
Drive Time	6 sec
Fail-Safe Operation Type	Stays in place
Differential pressure for close-off (Max)	60 psid, 400 kPa
Number of Internal Auxiliary Switches	0
Connection Type	6-pin Molex(TM) connector
Connection Length	8 in, 0.2 m
Stroke (Max)	0.4 in, 10 mm
Media Temperature (Max)	203 °F, 95 °C
Ambient Operating Temperature (Min)	32 °F, 0 °C
Ambient Operating Temperature (Max)	150 °F, 65 °C
Shipping and Storage Temperature (Min)	-40 °F, -40 °C
Shipping and Storage Temperature (Max)	150 °F, 65 °C
Operating Relative Humidity	5% to 95% Non-condensing
Protection Class	IP40, Double Insulated
Housing Material	Plastic
Product Height	2.8 in, 70 mm
Product Width	3.7 in, 94 mm
Product Depth	2.7 in, 68 mm
Product Weight	0.57 lb, 0.26 kg
Warranty	1 Year
