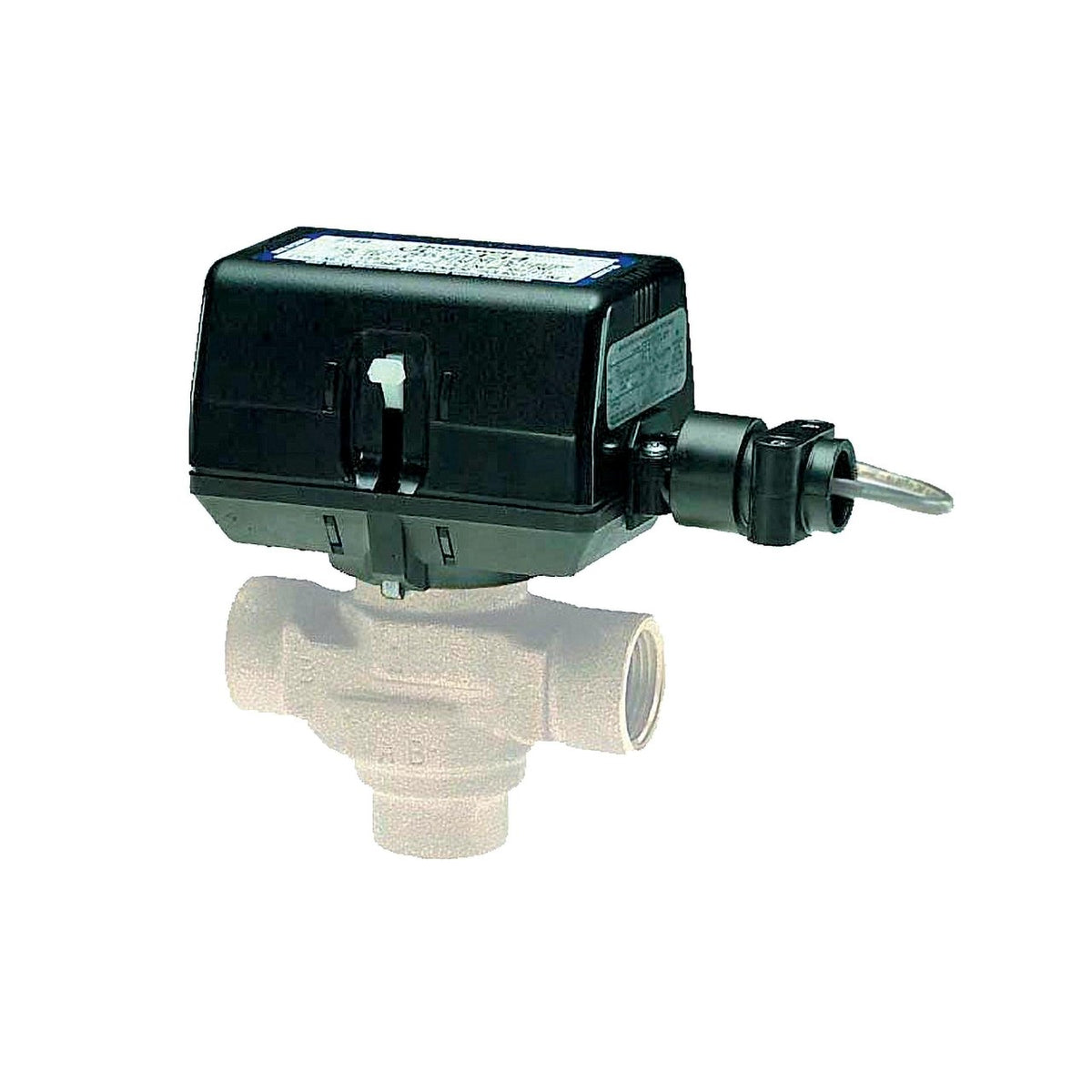

Honeywell Home VC8114ZZ11/U VC On/Off Actuator, Plenum Cable

The Honeywell Home VC8114ZZ11 is a 24 Vac on/off actuator for VC Series hydronic valves with 1000 Series two-way and 6000 Series three-way cartridges. It takes an SPST two-position control signal, mounts directly on the valve, and drives the 0.4 in stroke in 6 seconds. It has a 5 ft plenum-rated cable and a flexible conduit adapter, draws 6 VA, and closes off against up to 60 psid. Maximum fluid temperature is 203 °F.

Key Features

• 24 Vac, 60 Hz, 6 VA; SPST two-position (on/off) control
• 6 second drive time; 0.4 in (10 mm) maximum stroke
• 5 ft plenum-rated cable; flexible conduit adapter included
• Direct-coupled mounting; the actuator head can be installed without draining the system
• Close-off differential pressure up to 60 psid
• Double insulated, IP40 plastic housing; no internal auxiliary switch
• Ambient temperature 32 °F to 140 °F; fluid temperature up to 203 °F

Applications

• On/off zone control with VC Series two-way and three-way valves
• Cold, warm and hot water hydronic systems
• Installations that call for plenum-rated cable

Before You Order

• Model number on the existing actuator: VC8114 is on/off, 24 Vac, with cable and no end switch
• Valve cartridge series: 1000 Series two-way or 6000 Series three-way
• Control wiring from the thermostat or zone controller
• Cable: 5 ft plenum cable rather than a Molex connector
• Whether the existing actuator has an end switch; this model has no auxiliary switch

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VC8114ZZ11/U
• Application: HVAC
• Approvals and Standards: Listed 94-5V, CSA Certified: LR1322-367, CE Approval: 89/336/ECC, CE Approval: 73/23/EEC
• For Use With: VC Series Valves, 1000 Series 2-way, 6000 Series 3-way
• Compatible With: Use in cold, warm, and hot water applications
• Control Signal: SPST, Two position
• Warranty: 1 Year
• Includes: Flexible conduit adapter
• Media Temperature (Max): 203 °F, 95 °C
• Mounting Type: Direct Coupled
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 140 °F, 60 °C
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Shipping and Storage Temperature (Max): 150 °F, 65 °C
• Operating Relative Humidity (Min): 5% Non-condensing
• Operating Relative Humidity (Max): 95% Non-condensing
• Protection Class: Double Insulated, IP40
• Fail-Safe Operation Type: Stays in place
• Drive Time: 6 sec
• Supply Voltage: 24 V AC
• Power Supply Frequency: 60 Hz
• Power Consumption: 6 VA
• Differential pressure for close-off (Max): 60 psid, 400 kPa
• Actuator Connection: Valve
• Connection Length: 5 ft., 1.5 m
• Connection Type: Plenum-rated cable
• Stroke (Max): 0.4 in, 10 mm
• Product Height: 2.8 in, 70 mm
• Product Weight: 0.75 lb, 0.34 kg
• Product Width: 3.7 in, 94 mm
• Product Depth: 2.7 in, 68 mm
• Housing Material: Plastic
• UPC: 085267817585
• Country of Origin: HU
• Category: Zone Valve Replacement Heads
