Description

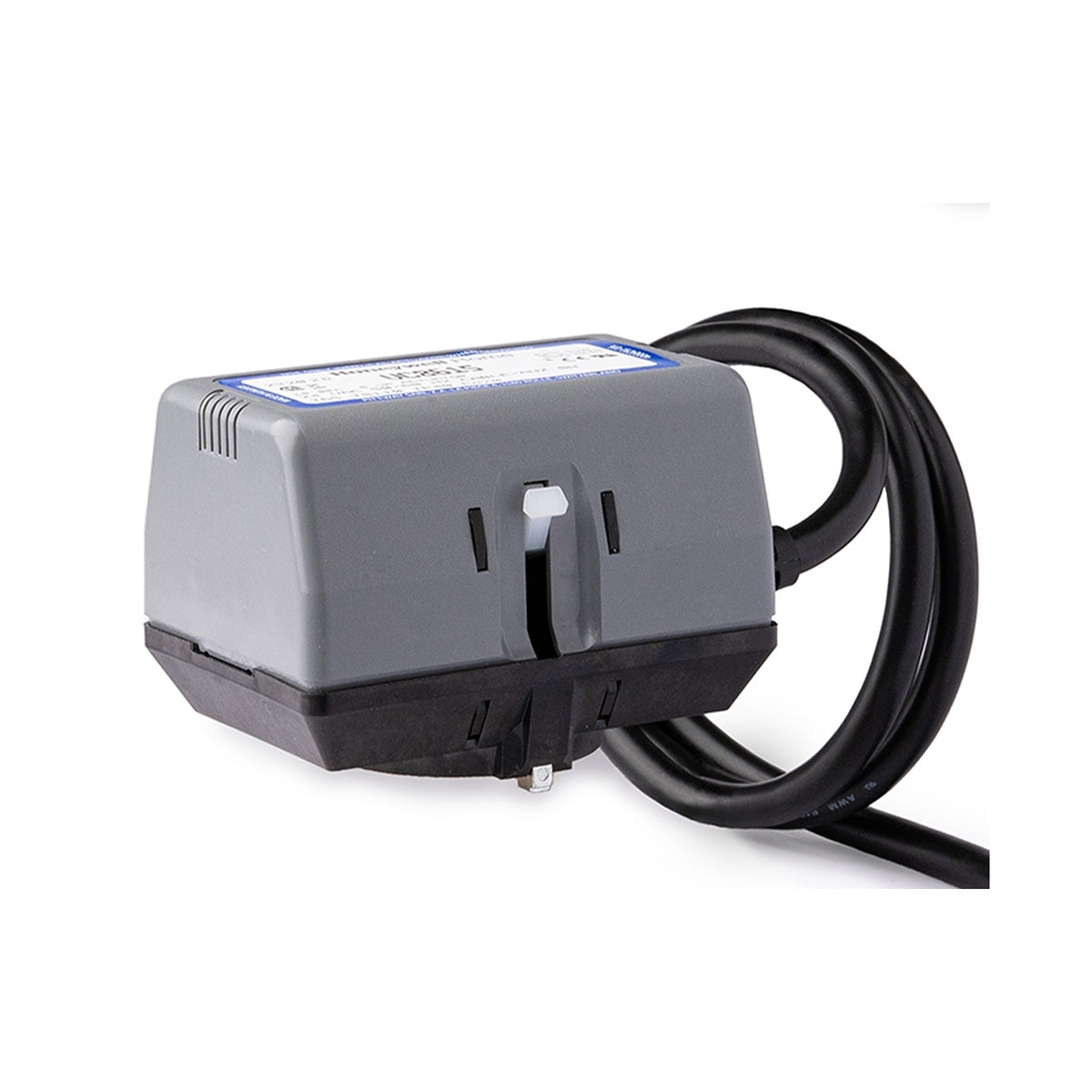

VC series valve item.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VC8011ZZ00/U
- Application: HVAC
- Approvals and Standards: UL Recognized, File# MH11826, CSA Certified: LR1322-367, CE Approval: 89/336/ECC, CE Approval: 73/23/EEC
- For Use With: VC Series Valve, T8601D, T8401C, T8360
- Control Signal: SPST, Two position
- Warranty: 5 years
- Includes: 3/8 in Flexible conduit adapter, Valve body
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 150 °F, 65 °C
- Shipping and Storage Temperature (Min): -40 °F, -40 °C
- Shipping and Storage Temperature (Max): 150 °F, 65 °C
- Fail-Safe Operation Type: Stays in place
- Drive Time: 6 sec
- Supply Voltage: 24 V AC, 240 V AC
- Power Supply Frequency: 50 Hz, 60 Hz
- Power Consumption: 6 VA
- Actuator Connection: Valve
- Connection Length: 39 in, 1 m
- Connection Type: Plenum-rated cable
- Product Height: 2.8 in, 70 mm
- Product Weight: 0.75 lb, 0.34 kg
- Product Width: 3.7 in, 94 mm
- Product Depth: 2.7 in, 68 mm
- Housing Material: Plastic
- UPC: 085267133227
- Country of Origin: HU
- Category: Zone Valve Replacement Heads
