| Pipe Size | 1/2 in. |
| Connection Type | Female NPT |
| Body Pattern | Three-way A-AB-B |
| Valve Type | Cartridge Cage Valve |
| Valve Action | Stem up to close A port |
| Actuation | Must be purchased separately |
| Capacity (Cv) | 3.7 Cv |
| Flow Characteristic | Linear |
| Timing | When used with VC series Actuator--On/Off models with 6 seconds |
| Close-off Pressure | 60 psi |
| Fluid Temperature | 34 F to 203 F |
| Ambient Temperature | 32 F to 150 F |
| Controlled Fluid | Chilled or hot water with up to 60% Glycol |
| Materials (Body) | Bronze |
| Materials (Stem) | Stainless Steel |
| Materials (Seat) | EPDM O-ring seals on Noryl piston |
| Materials (Packing) | EPDM rubber |
| Used With | VC actuators, 2-position, On-Off Type |
| CSA | CSA Certified |
| Maximum Safe Operating Pressure (psi) | 300 psi |
| Materials (Cartridge) | Ryton™, Noryl™ engineering plastic |
| Stem Travel (in.) | 0.4 in. |
Description

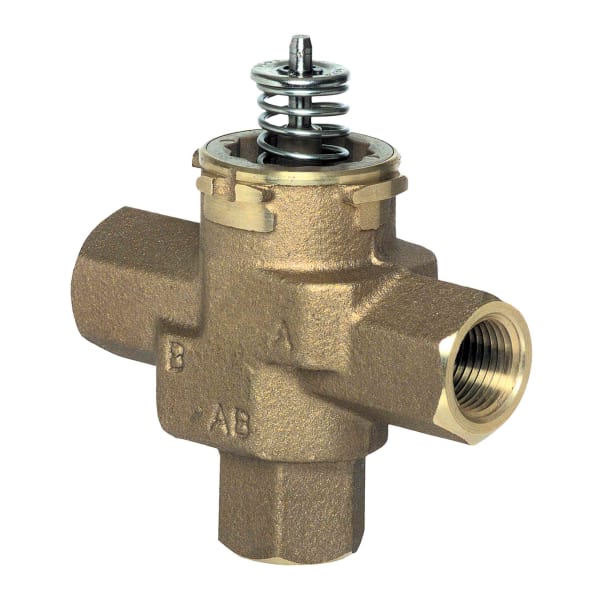

The VCZNB6100 is a three-way VC cartridge cage valve from Resideo (Honeywell Home), 1/2 in female NPT, 3.7 Cv, linear flow.
Three-way means the water always has somewhere to go. When the zone is satisfied the valve diverts flow to the bypass instead of stopping it, so the circulator never ends up pushing against a closed system — the case that makes pumps noisy and short-lived.
Linear flow is the reason to pick this over a quick-opening valve. Flow follows stem position proportionally, so a control that modulates gets an usable response across the whole travel rather than most of the flow appearing in the first fraction of the stroke.
The cartridge cage design puts the working parts in a replaceable cartridge inside the bronze body. The body stays soldered or threaded into the pipe; what wears comes out.
With a VC series actuator the on/off models drive in about 6 seconds. Close-off is 60 psi, well above what a residential loop develops.
The actuator is sold separately. This is the valve assembly; pair it with a VC series actuator.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VCZNB6100/U
- Type: Three-way VC cartridge cage valve
- Body pattern: Three-way A-AB-B
- Pipe size: 1/2 in
- Connection: Female NPT
- Flow capacity: 3.7 Cv
- Flow characteristic: Linear
- Close-off pressure: 60 psi
- Fluid temperature: 34 F to 203 F
- Body material: Bronze
- Actuator: Sold separately
- UPC: 085267815291
- Category: 3-Way Zone Valves
