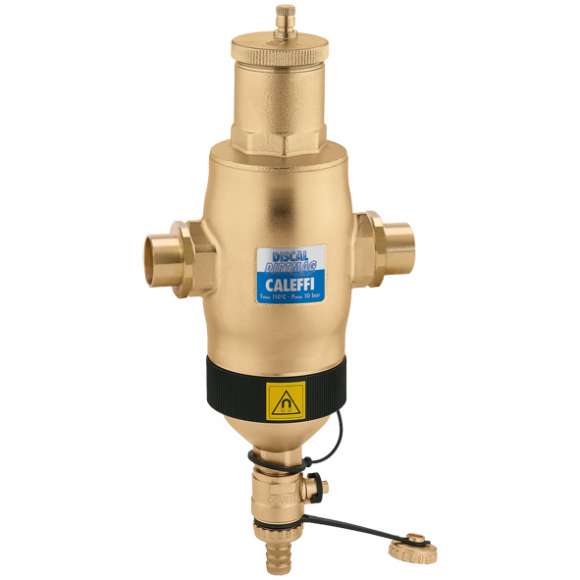

Caleffi 546167A DISCAL DIRTMAG Air & Dirt Separator with Magnet 1-1/4" Press

The Caleffi 546167A is a 1-1/4" DISCAL DIRTMAG air and dirt separator with magnet and press connections. It removes air, dirt and magnetic iron particles from closed-loop hydronic heating and cooling systems in a single device.

DISCAL DIRTMAG units combine two functions: an internal element that releases entrained air and microbubbles through the automatic air vent on top, and a dirt collection chamber with a removable magnet that traps dirt and ferrous particles. Debris is flushed out through the bottom drain valve. Installing one unit in place of a separate air separator and dirt separator saves space and fittings in boiler rooms and mechanical rooms.

Before ordering, confirm the 1-1/4" press connection and that your system stays within 150 psi and 250F. Size the separator to the pipe size of the main line where it will be installed.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 546167A
• Series: DISCAL DIRTMAG (5461 Series)
• Type: Air and Dirt Separator with Magnet
• Size: 1-1/4"
• Connection: press
• Max Temperature: 250F
• Max Pressure: 150 psi
• Material: Brass
• UPC: 8016615658569
• Category: Air & Dirt Separators

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Product Brochure (PDF)
