Description

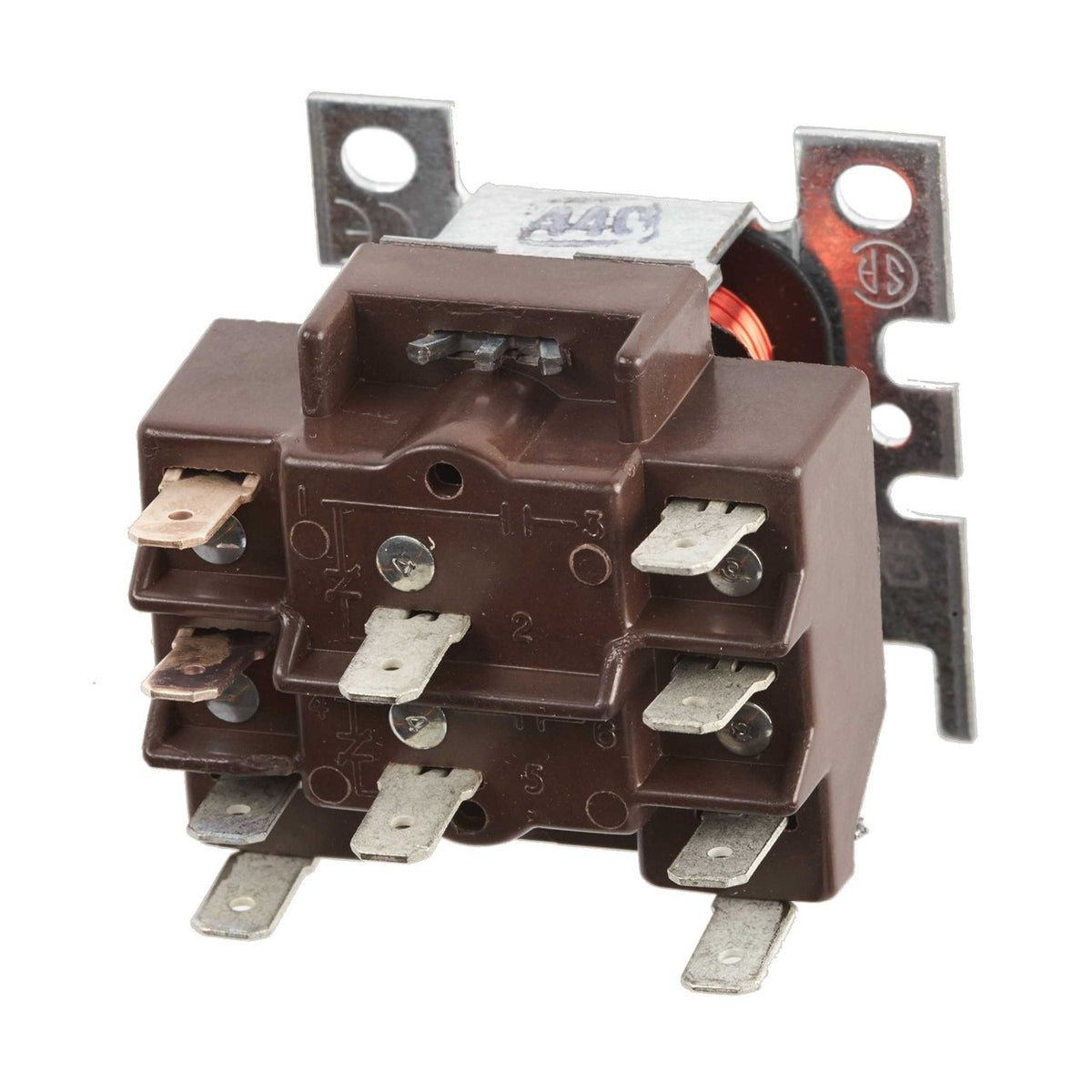

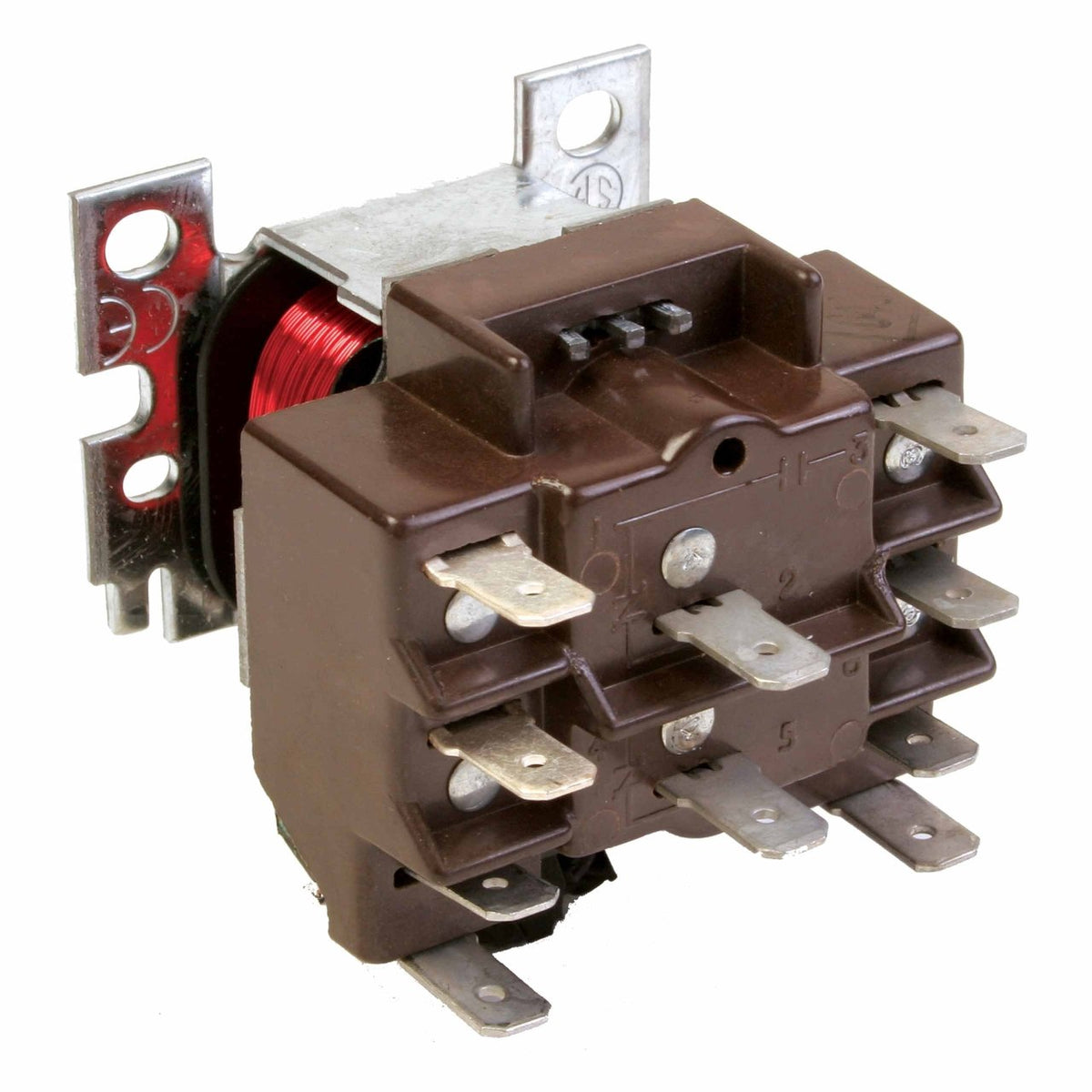

DPST normally open relay (one power and one pilot duty contact) with a 24 V coil and quick-connect terminals.
Features

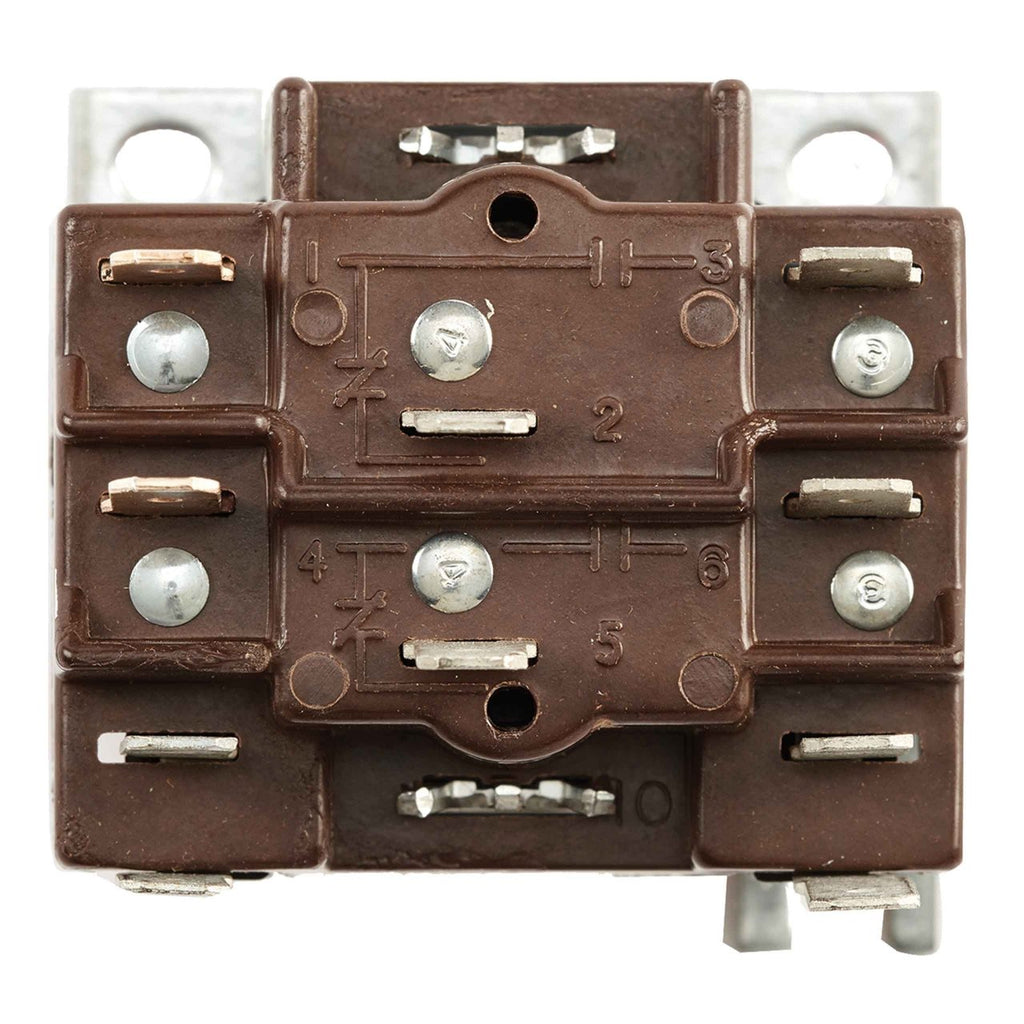

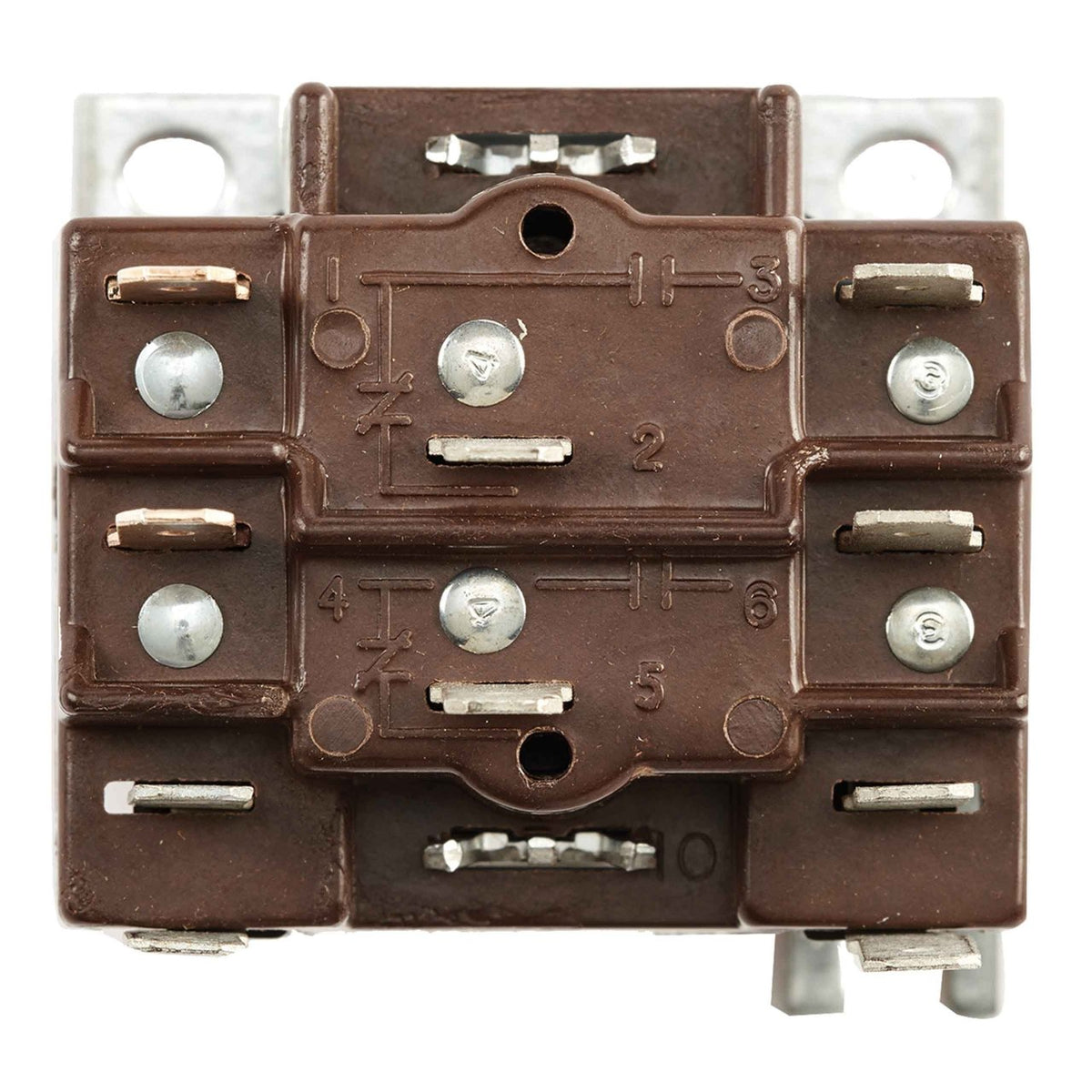

- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
- Open coil assures cooler operation
- Laminated magnet construction for higher efficiency
- Base designed for easy replacement of competitive relays
- Plug compatible with Steveco 90
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: R8222U1079/U
- Application: Powerpile (millivoltage) applications, Pilot duty applications, Power pole applications
- Approvals and Standards: UL Component Recognized: File No.E59779, Guide No.NLDX2, CSA Certified: File No. LR35066, Guide No. 184
- Compatible With: Refrigeration, Air Conditioning
- Coil Rating Voltage: 24 V ac
- Coil Connection Size: 1/4 in, 6 mm
- Coil Connection Type: Quick Connect
- Pilot Duty Rating: Minimum: 3 VA @ 24 V AC, 120 V AC, 480 V AC, Maximum: 25 VA @ 24 V AC, Maximum: 125 VA @ 120 V AC, 240 V AC, & 480 V AC, Resistive: 3 A @ 277 V AC (0.75 power factor), PowerPile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 V DC
- Number of Poles: 2 Poles
- Operating Frequency: 60 Hz
- Power Supply Frequency: 50 Hz, 60 Hz
- Switch Action: DPST (One Power Rated, One Pilot Duty)
- Warranty: 1 Year
- Ambient Operating Temperature (Min): -20 °F, -29°C
- Ambient Operating Temperature (Max): 155 °F, 68 °C
- Mounting Type: Screw Mount
- Product Height: 1.86 in, 47 mm
- Product Length: 2.37 in, 60 mm
- Product Width: 2.1 in, 54 mm
- UPC: 085267310123
- Country of Origin: MX
- Category: Relays
