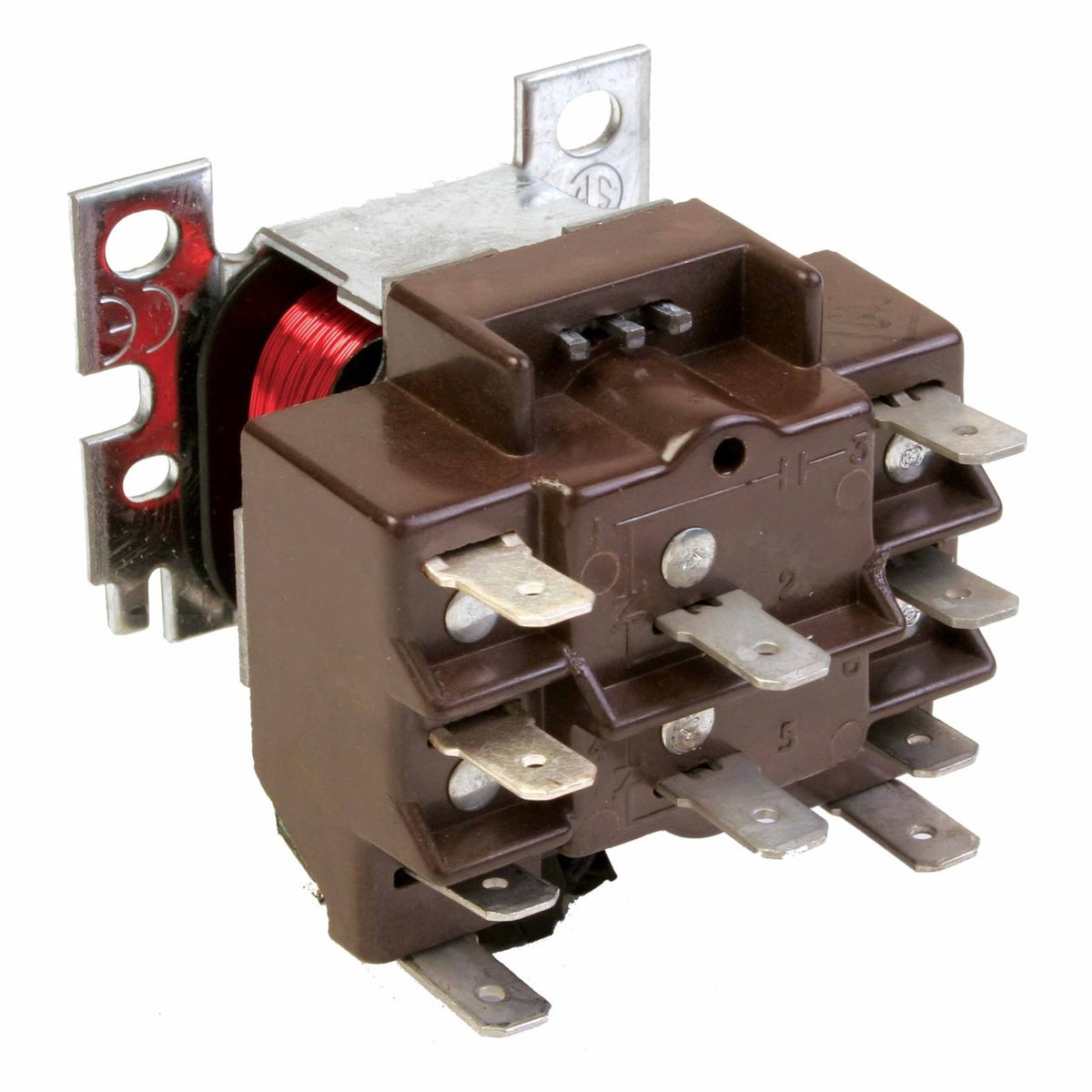

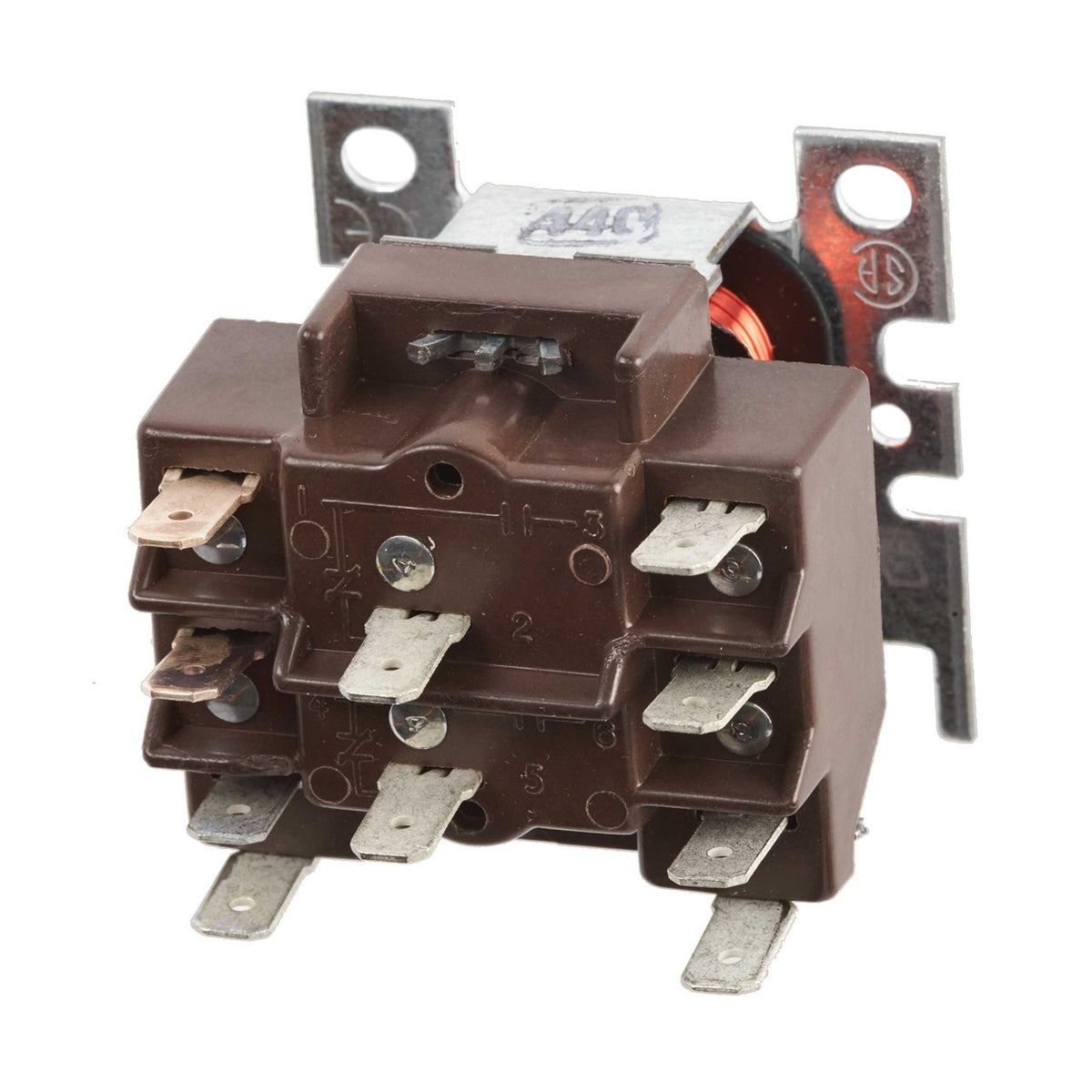

Resideo R8222V1003/U Relay, DPDT, 24 V Coil, Quick Connect Terminals

DPDT relay, listed as normally open (one power and one pilot duty), with a 24 V coil and quick-connect terminals.

Features

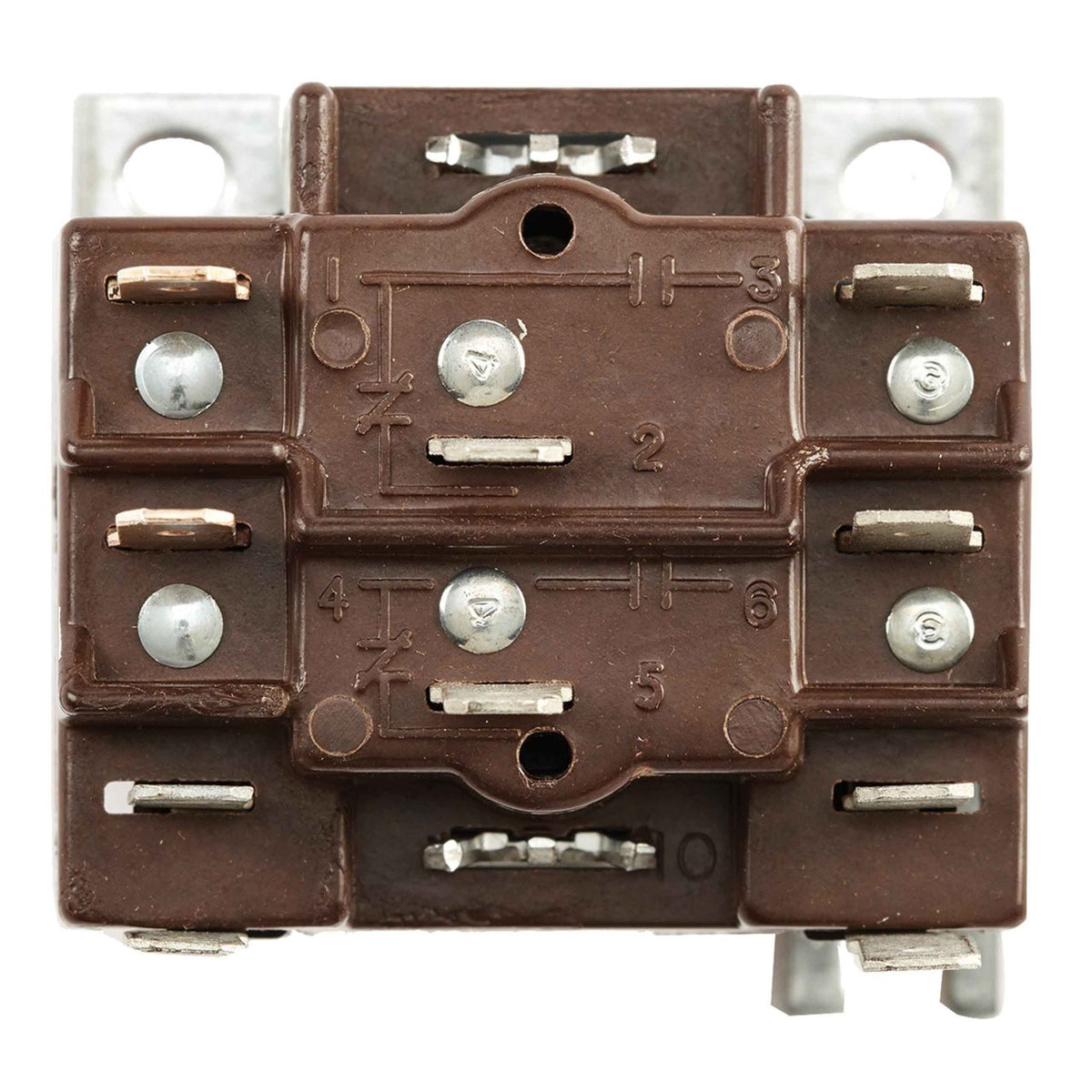

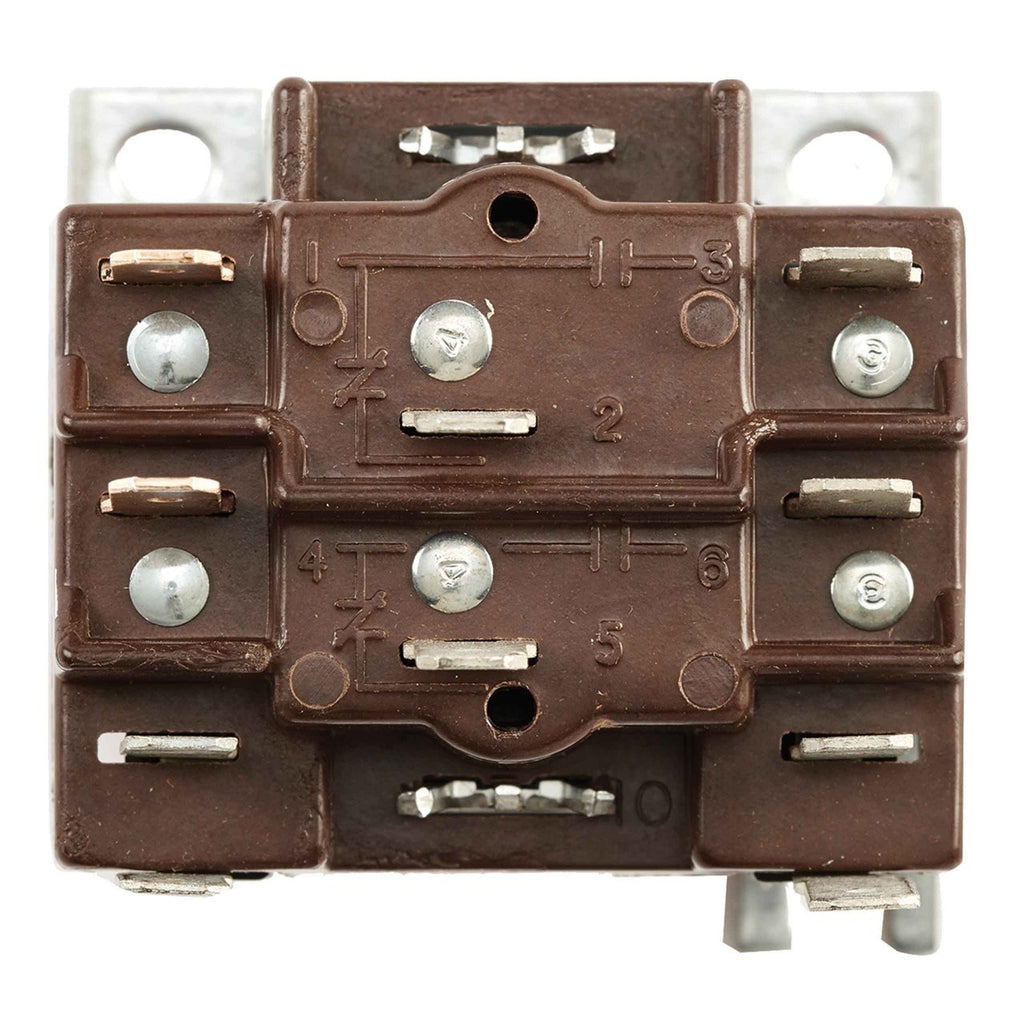

• Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
• Open coil assures cooler operation
• Laminated magnet construction for higher efficiency
• Base designed for easy replacement of competitive relays
• Plug compatible with Steveco 90

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: R8222V1003/U
• Application: Powerpile (millivoltage) applications, Pilot duty applications, Power pole applications
• Approvals and Standards: UL Listed: File No. E59779, Guide No. NLDX2, CSA Certified: File No. LR35066, Guide No. 184
• Compatible With: Refrigeration, Air Conditioning
• Coil Rating Voltage: 24 V ac
• Coil Connection Size: 1/4 in, 6 mm
• Coil Connection Type: Quick Connect
• Pilot Duty Rating: Minimum: 3 VA @ 24 V AC, 120 V AC, 480 V AC, Maximum: 25 VA @ 24 V AC, Maximum: 125 VA @ 120 V AC, 240 V AC, & 480 V AC, Resistive: 3 A @ 277 V AC (0.75 power factor), PowerPile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 V DC
• Number of Poles: 2 Poles
• Operating Frequency: 60 Hz
• Power Supply Frequency: 50 Hz, 60 Hz
• Switch Action: DPDT (One Power Rated, One Pilot Duty)
• Warranty: 1 Year
• Ambient Operating Temperature (Min): -20 °F, -29°C
• Ambient Operating Temperature (Max): 155 °F, 68 °C
• Mounting Type: Screw Mount
• Product Height: 1.87 in, 48 mm
• Product Length: 2.37 in, 60 mm
• Product Width: 2.16 in, 55 mm
• UPC: 085267079723
• Country of Origin: MX
• Category: Relays
