Description

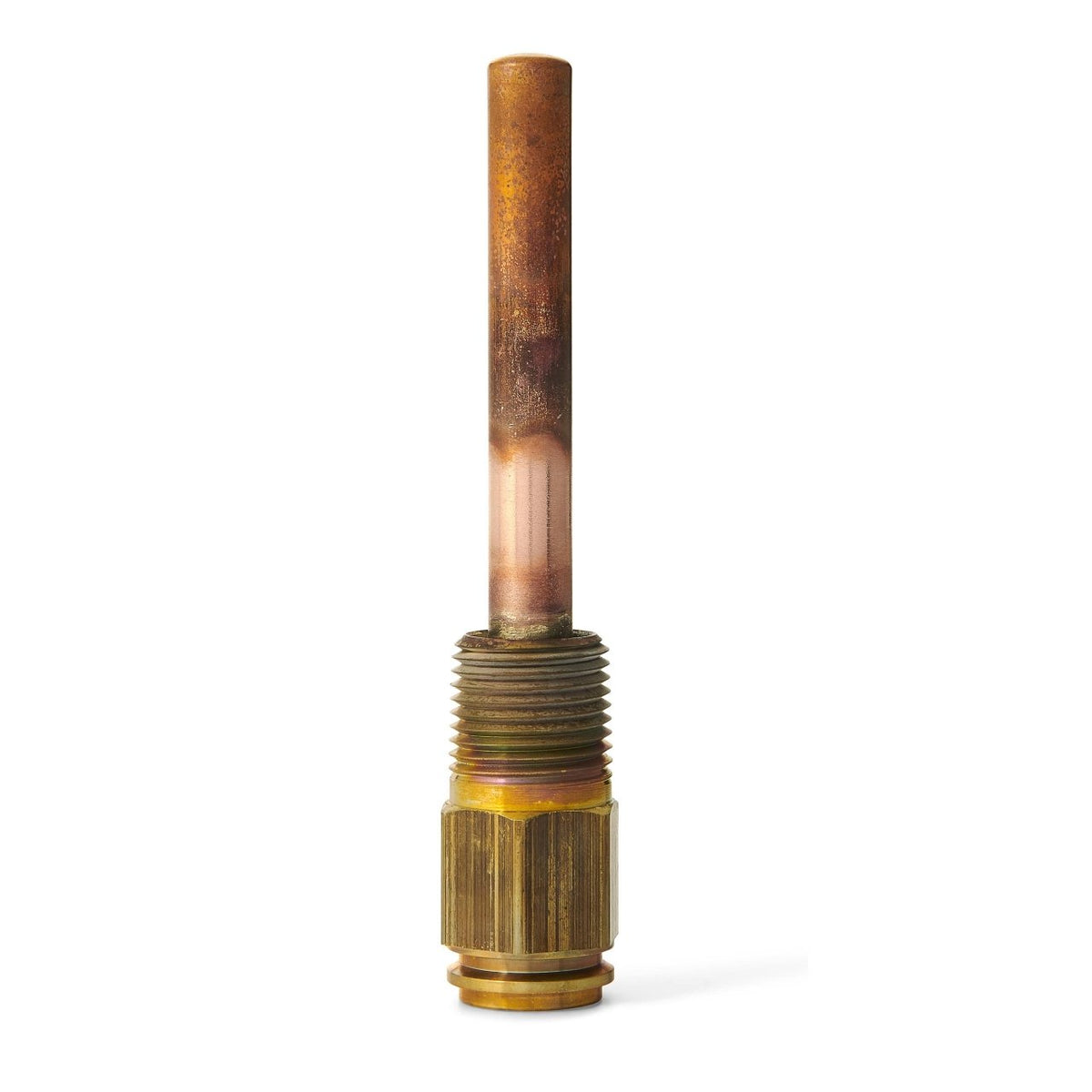

Copper well assembly with 1/2 in NPT connection, 3 in insertion well, for 3 in insulation, including mounting clamp.
Features
- Allow heat transfer while protecting the sensing bulb from contact with the controlled medium
- Permit removal of the sensing bulb for testing or replacement without draining the system
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: 121371L/U
- Application: Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
- For Use With: Aquastat Controllers
- Includes: 121371 Mounting Clamp
- Material: Copper (Cu)
- Operating Pressure (Max): 255 psi @ 300 °F, 1758 kPa @ 149 °C
- Bulb Diameter: 3/8 in
- Capillary Diameter: 5/64 in
- Connection Size: 1/2 in - 14
- Connection Type: NPT
- Well Spud Size: 1/2 in, 13 mm
- Element Insertion Length: 3 in
- Insulation Depth: 3 in
- Product Length: 6 in
- UPC: 085267005487
- Country of Origin: MX
- Category: Aquastats & Wells
