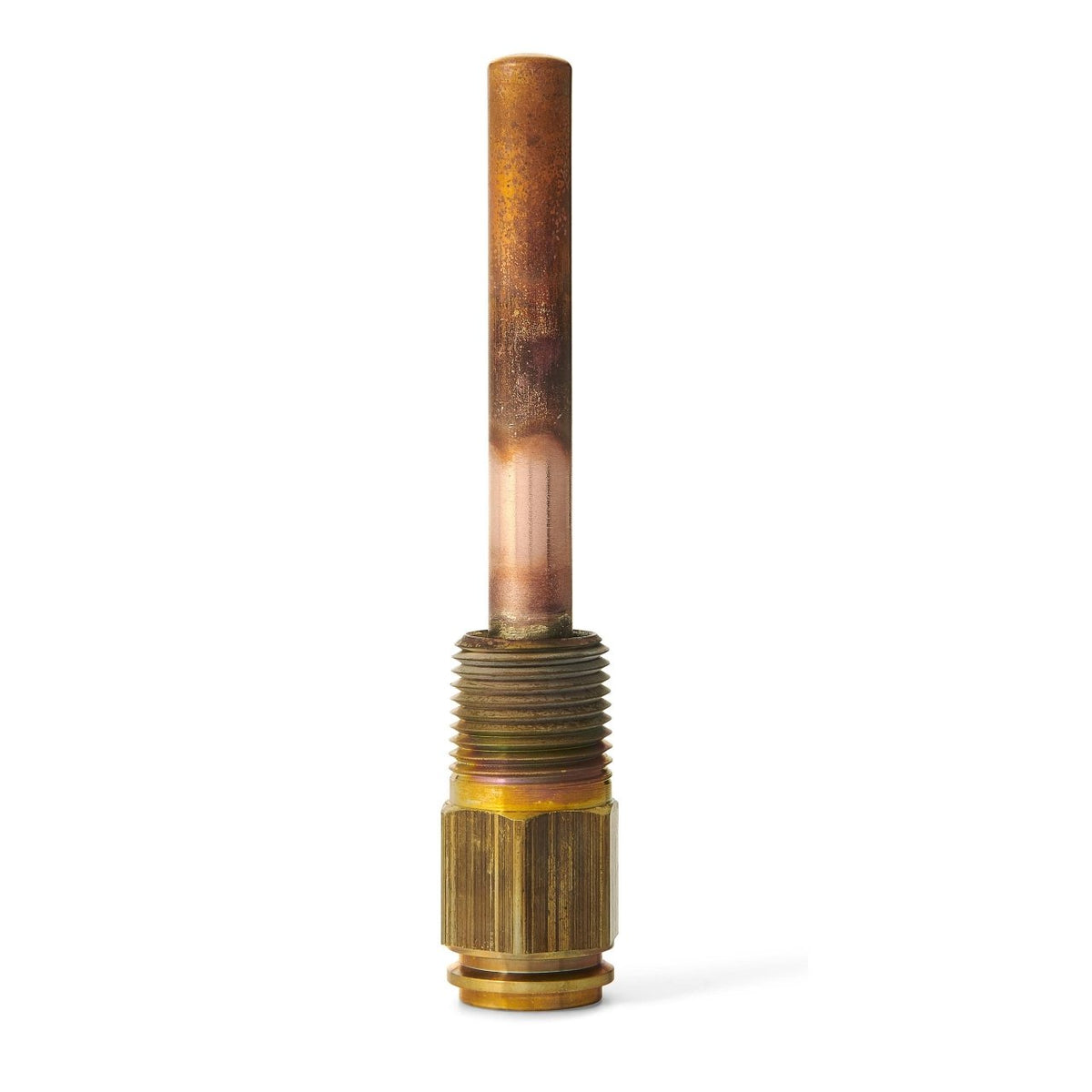

Resideo 123871A/U Copper Well Assembly, 3/4 in NPT, 3 in Insertion, 3 in Insulation
Resideo

Resideo 123871A/U Copper Well Assembly, 3/4 in NPT, 3 in Insertion, 3 in Insulation

Item #
HONE-123871A/U
Mfr. part #
123871A/U
UPC
085267005937
$68.04
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

5% off at checkout with code SAVE5

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.69 lb
  • Box size: 7.7 × 1.75 × 1.65 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #123871A/U
UPC085267005937

Copper well assembly with 3/4 in NPT connection, 3 in insertion well, for 3 in insulation.

Features

  • Functional replacement for 121371M without clamp

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: 123871A/U
  • Application: Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
  • Compatible With: L4006 Aquastats, L4081 Aquastats
  • For Use With: Aquastat Controllers
  • Well: Yes
  • Material: Copper (Cu)
  • Operating Pressure (Max): 255 psi @ 300 °F, 1758 kPa @ 149 °C
  • Bulb Diameter: 3/8 in
  • Connection Size: 3/4 in - 14
  • Connection Type: NPT
  • Well Spud Size: 3/4 in, 19 mm
  • Element Insertion Length: 3 in
  • Insulation Depth: 3 in
  • UPC: 085267005937
  • Country of Origin: MX
  • Category: Aquastats & Wells

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
