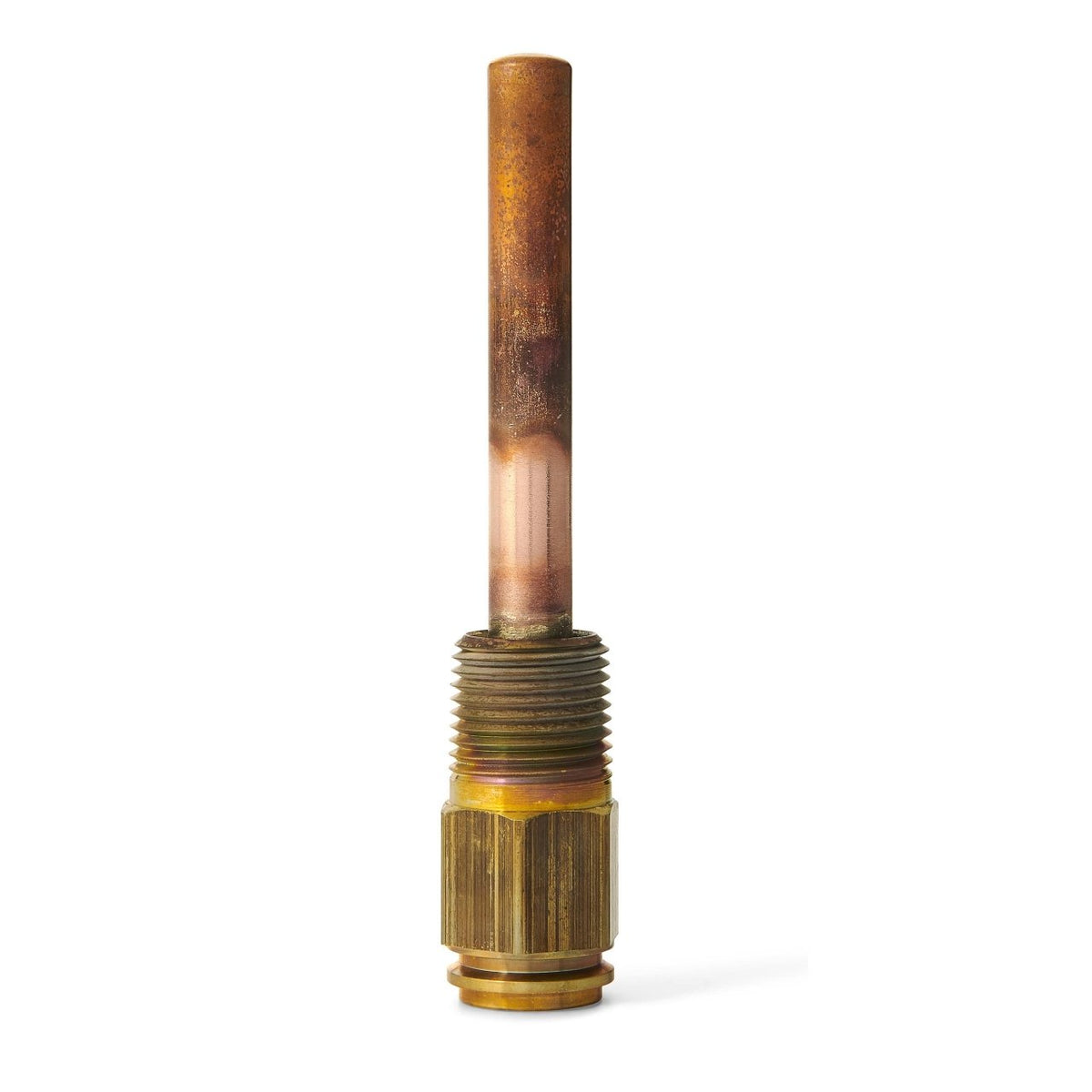

Resideo 121371M/U Copper Well Assembly, 3/4 in NPT, 3 in Insertion, 3 in Insulation

Copper well assembly with 3/4 in NPT connection, 3 in insertion well, for 3 in insulation, including mounting clamp.

Features

• Allow heat transfer while protecting the sensing bulb from contact with the controlled medium
• Permit removal of the sensing bulb for testing or replacement without draining the system

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: 121371M/U
• Application: Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
• For Use With: Aquastat Controllers
• Includes: 121371 Mounting Clamp
• Material: Copper (Cu)
• Operating Pressure (Max): 255 psi @ 300 °F, 1758 kPa @ 149 °C
• Bulb Diameter: 3/8 in
• Capillary Diameter: 5/64 in
• Connection Size: 3/4 in - 14
• Connection Type: NPT
• Well Spud Size: 3/4 in, 19 mm
• Element Insertion Length: 3 in
• Insulation Depth: 3 in
• Product Length: 6 in
• UPC: 085267005494
• Country of Origin: MX
• Category: Aquastats & Wells
