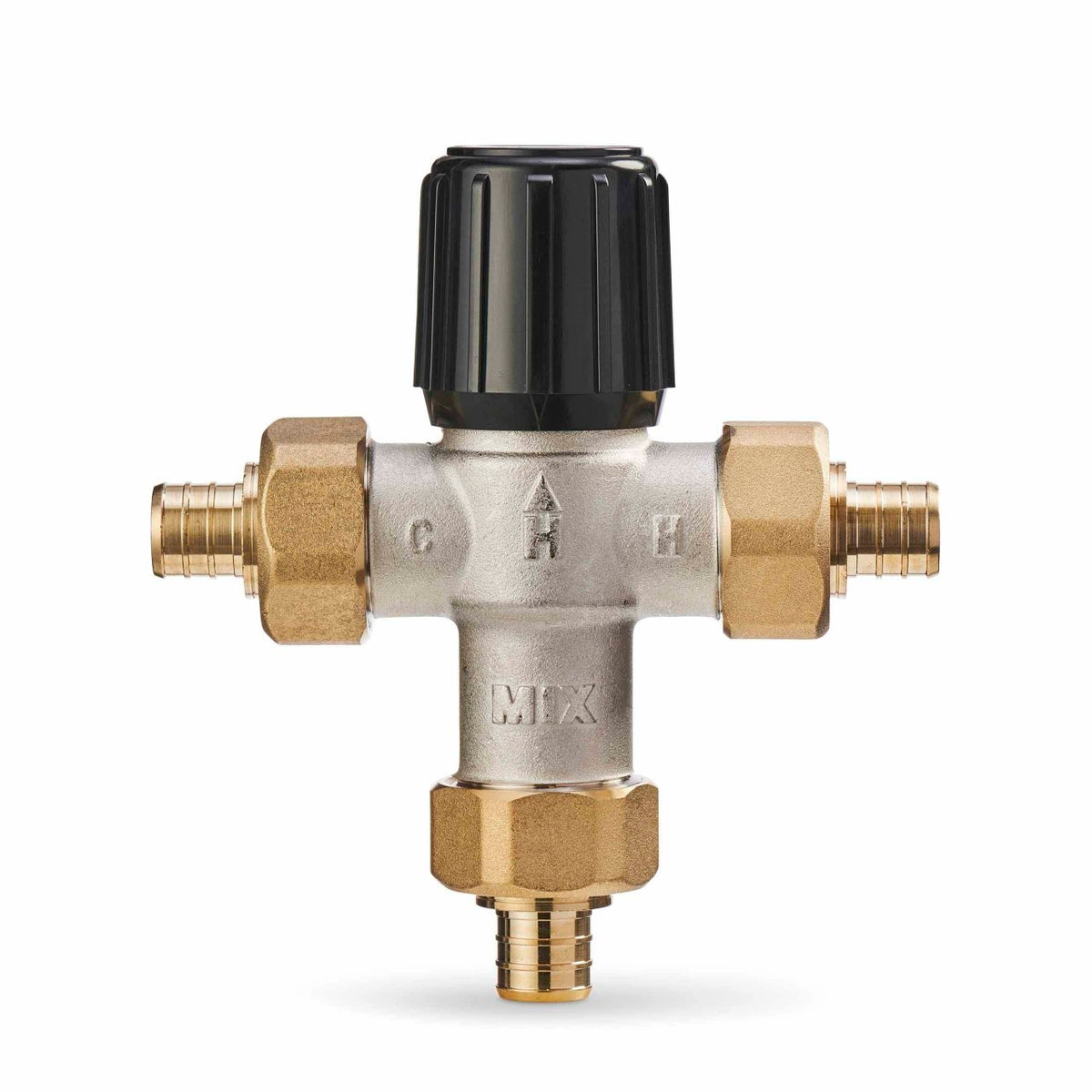

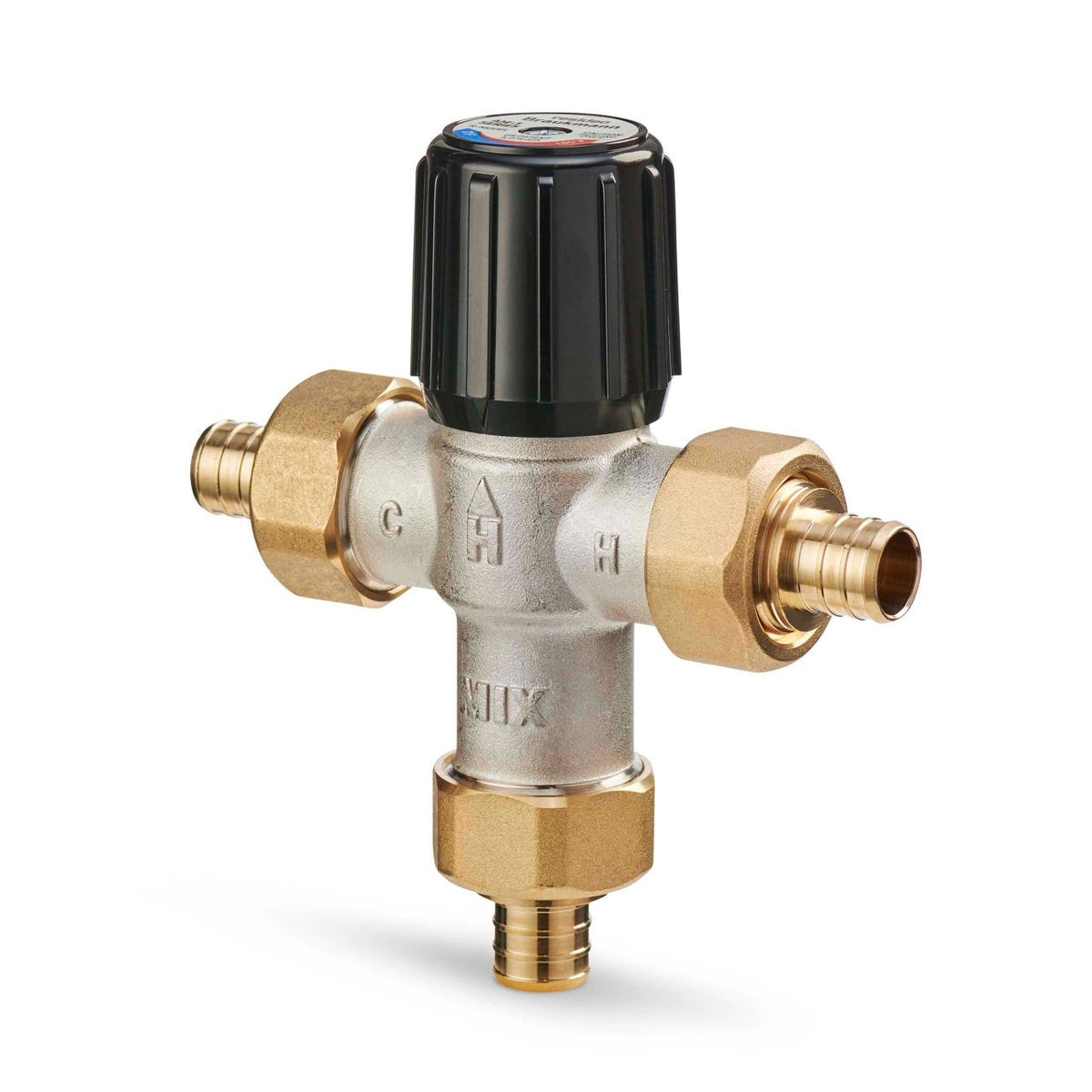

Resideo AM101R-UPEX-1/U AM-1 Mixing Valve, 3/4 in PEX Union, 80–180°F, Heating Only

AM-1 series mixing valve, 3/4 in, with PEX union connections and an 80–180°F range, for heating only with no approvals.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AM101R-UPEX-1/U
• Controlled Media: Non Potable Water
• Re-Circulation: No
• Color: Metallic
• Includes: Check Valves on Hot and Cold Inlets
• Product Height: 5.7 in, 146 mm
• Product Length: 5.3 in, 135 mm
• Warranty: 1 Year
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F, 27 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flex Connector Included: No
• Flow Coefficient: 3.9 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Flow Rate (Max): 12 gpm, 45.4 lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: No
• Media Temperature (Max): 212 °F, 100 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F, 21 °C
• Operating Mixing Temperature (Max): 180 °F, 82 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass
• Accessories: AM101-SB/U, AM1-TAIL101UP-LF, AM-1-025RP/U, AM1-TG101-US-LF/U
• Connection Size: 3/4 in
• Connection Type: Union PEX
• Nominal Diameter: DN20
• Number of Connections: 3
• Valve Body Pattern: Straight Through
• UPC: 085267837125
• Country of Origin: MX
• Category: Mixing Valve - Heating Only
