| Connection Type | 1/4 in. Barbed |
| Electrical Connections | #6-32 Screw terminal with cup washers |
| Electrical Ratings | 278 Va @ 24Vac; 300Va @ 120 to 277Vac |
| Ambient Temperature | -40 F to +190 F |
| Dimensions | 5.0 in. Diameter |
| UL | MFHX2.MP2168 |
| CSA | 112395 |
| Additional Features | Switching Differential: .02"±.01" wc @ minimum set point to approximately .80" wc @ maximum set point |
| Approvals, Factory Mutual | Approved |
| Pilot Duty Ratings | 10 Milliamps @ 5Vdc; Gold Flash Contacts; 15 Amps resistive to 277Vac |
| Setpoint | .05"±.02" wc to 12.0" wc PR |
| Electrical Switch | SPDT |
| Maximum Operating Pressure | 1/2 psi |
Description

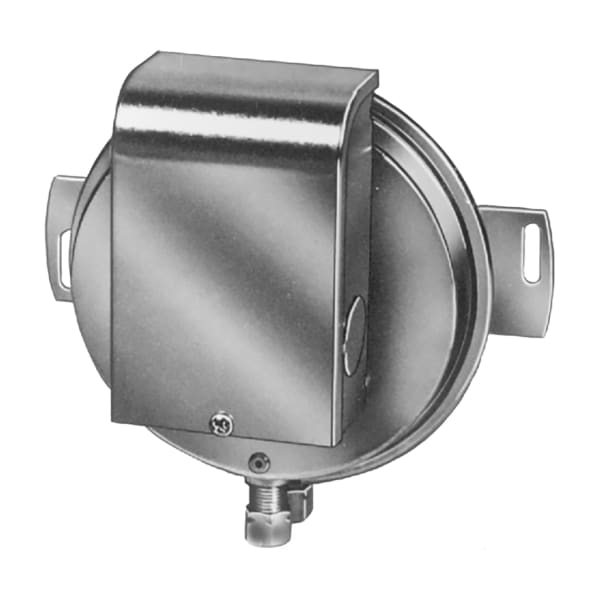

The AP5208-30 is an air pressure switch from Resideo (Honeywell Home), style E121, 1/4 in barbed connection.
A pressure switch proves airflow by measuring it rather than by being pushed. It senses the pressure difference a running fan creates and makes contact when that difference appears — which works in ducts where a sail would foul, and at differentials far too small to move a vane.
Switching differential runs from about 0.02 in w.c. at the minimum set point to roughly 0.80 in w.c. at the maximum, so it covers everything from proving a small exhaust fan to confirming a blower under load.
Gold flash contacts carry pilot duty down to 10 milliamps, which matters when the load is a control input rather than a coil.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AP5208-30/U
- Type: Air pressure switch
- Connection: 1/4 in. Barbed
- Electrical: 278 Va @ 24Vac; 300Va @ 120 to 277Vac
- Pilot duty: 10 Milliamps @ 5Vdc; Gold Flash Contacts; 15 Amps resistive to 277Vac
- Differential: Switching Differential:.02"±.01" wc @ minimum set point to approximately.80" wc @ maximum set point
- Operating range: -40 F to +190 F
- UPC: 085267225359
- Category: Pressure Switches
