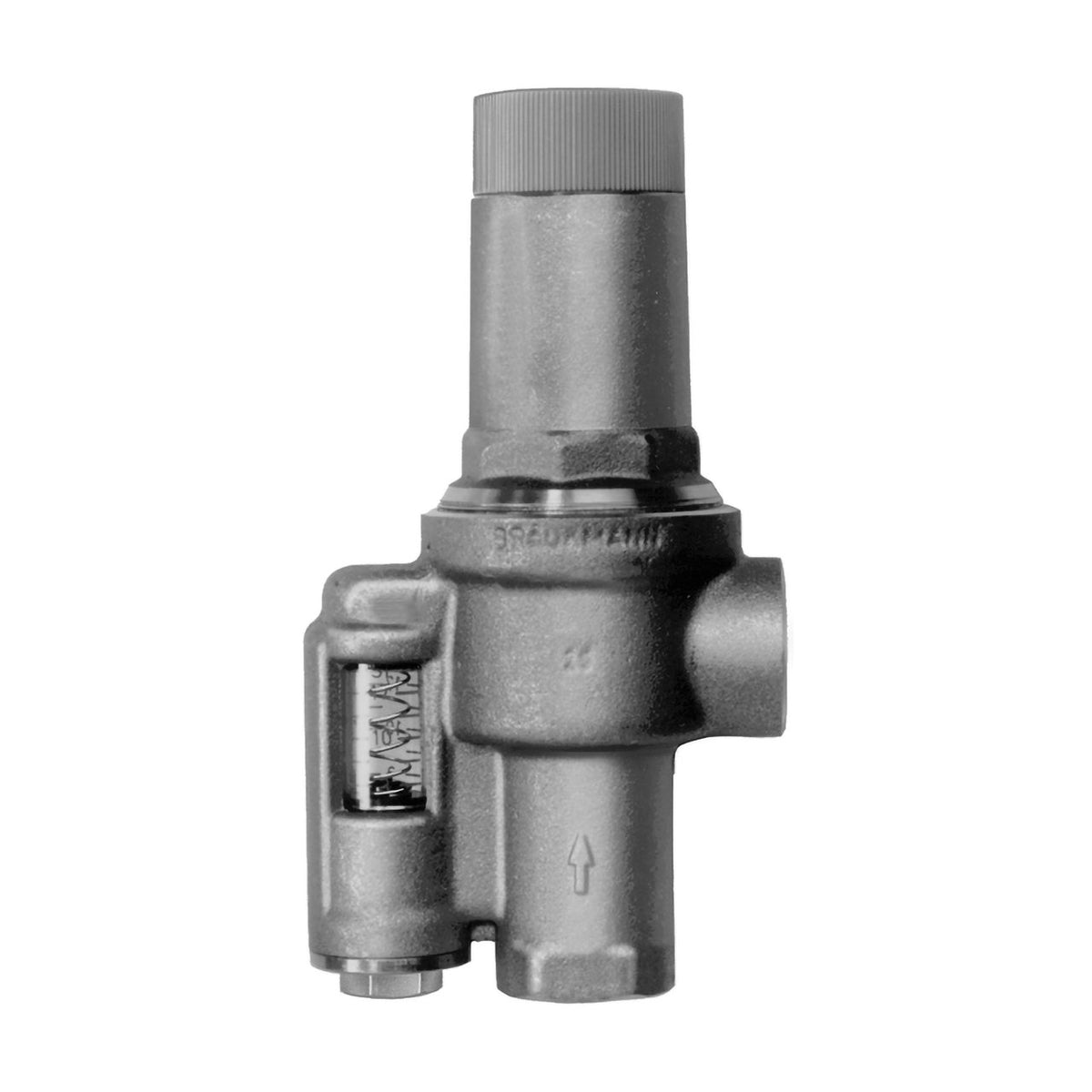

Resideo D146M1032 Differential Pressure Regulating Valve, 3/4 in NPT

3/4 in NPT differential pressure regulating valve.

Features

• Install between supply and return sides of a hydronic system to stabilize pressure differential and reduce the effects of demand changes
• Control maintains a constant differential between the two sides by opening a bypass whenever the difference between supply and return reaches the setpoint
• Provides silent, trouble-free service
• Easy installation
• Requires no electrical hookup
• Easy adjustment of pressure by turning regulating cap
• Built-in differential pressure indicator

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: D146M1032
• Color: Brass
• Connection Size: 3/4 in
• Connection Type: NPT
• Includes: Built-in differential pressure indicator
• Inlet Pressure (Max): 400 psi
• Media Temperature (Max): 230 °F, 110 °C
• Outlet Pressure (Min): 15 psi
• Outlet Pressure (Max): 130 psi
• Pressure Reducing Ratio: 10:1 maximum
• Product Height: 6.25 in, 160 mm
• Product Weight: 2.1 lb
• Product Width: 3.38 in, 86 mm
• Valve Body Material: Brass
• Valve Body Pattern: Elbow
• Warranty: 1 Year
• DN Size: DN20
• Valve Diaphragm Material: EPDM
• UPC: 085267042222
• Country of Origin: DE
• Category: Balancing & Flow Control Valves
