Description

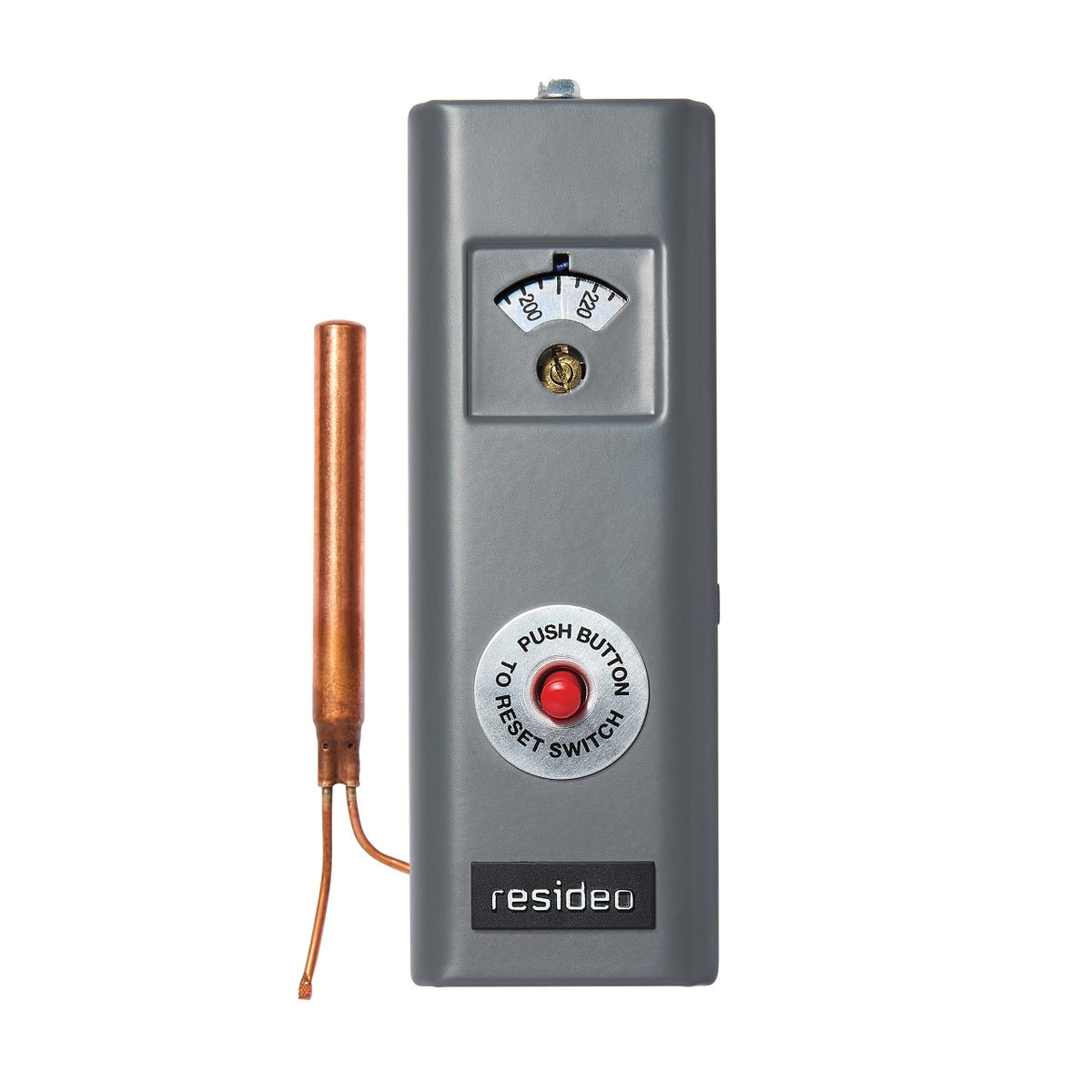

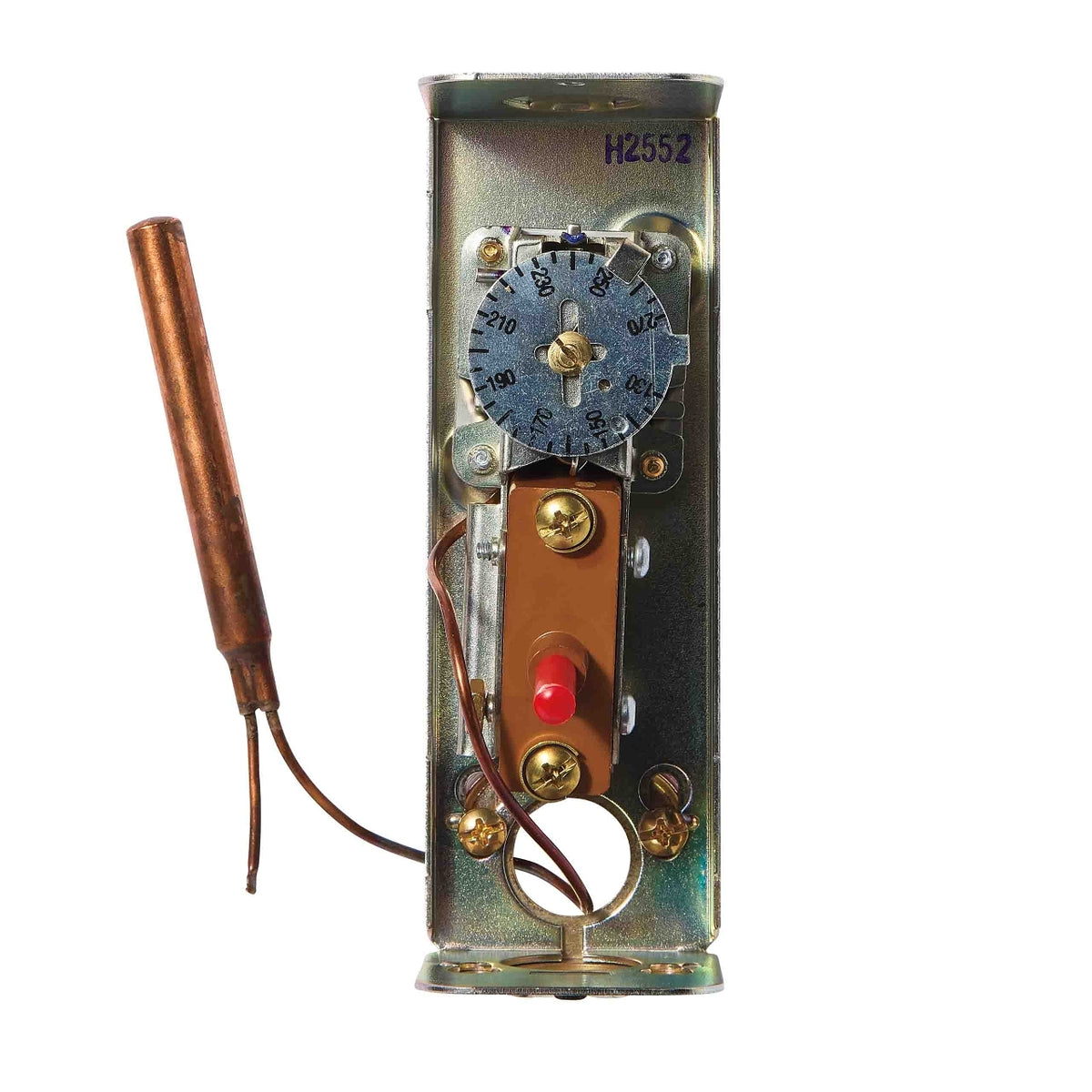

Manual reset aquastat that breaks on temperature rise, 100–200°F range, supplied less well.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: L4006E1125/U
- Application: High Limit Control with Manual Reset
- Approvals and Standards: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1, AGA Certified
- Color: Gray
- Compatible With: Hot Water, Hydronic Heating Systems
- Differential Temperature: Manual Reset
- Operating Temperature (Min): 100 °F, 38 °C
- Operating Temperature (Max): 200 °F, 93 °C
- Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
- Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
- Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 V DC
- Switch Action: Contacts break on temperature rise
- Switch Type: SPST
- Well Spud Size: 1/2 in 14 NPT, 13 mm 14 NPT
- Insulation Depth: 3 in
- Capillary Length: 3 in
- Bulb Diameter: 3/8 in, 10 mm
- Bulb Length: 2 7/8 in, 73 mm
- Bulb Material: Copper (Cu)
- Product Height: 5.63 in, 143 mm
- Product Width: 2 in, 51 mm
- Ambient Temperature (Max): 150 °F, 66 °C
- Hazmat Information: Dangerous Goods in Excepted Quantities
- UPC: 085267166423
- Country of Origin: MX
- Category: Aquastats & Wells
