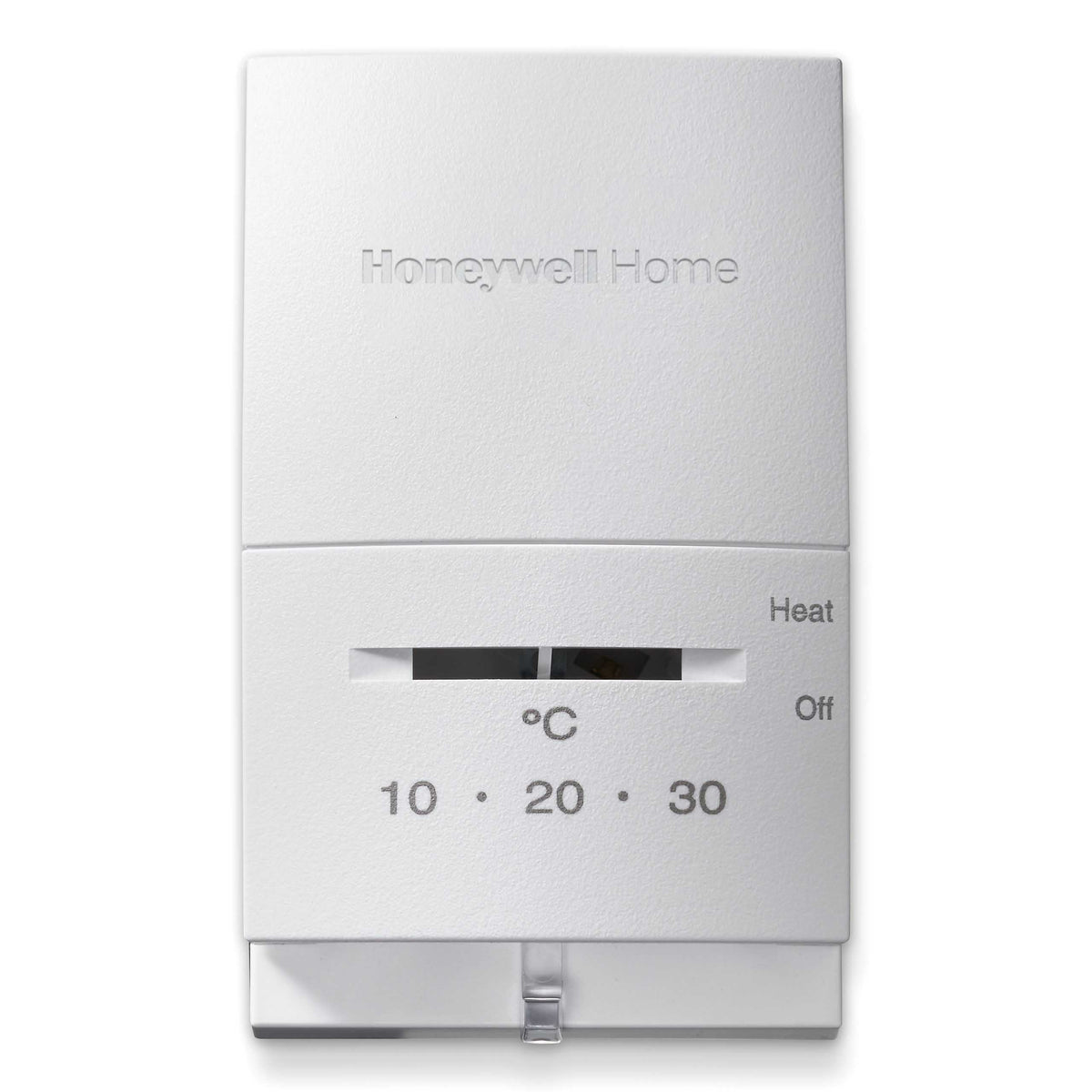

Honeywell Home T827K1017/U Vertical Heat-Only Mechanical Thermostat, 12 VDC or 750 mV, 10–32°C

Vertical heat-only 12 VDC or 750 mV mechanical thermostat with R and W terminals, a 10–32°C scale, and a Heat/Off system switch; no fan switch.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: T827K1017/U
• Application: Heat Only
• Thermostat Type: Mechanical, Non programmable
• Approvals and Standards: CSA Approved; Compliant to CAN/CSA-C828-06, Compliant to CAN/CSA, UL Approved
• Stages: 1 Heat
• Smart Home Integration: No
• Modes of Operation: Heating, Cooling
• Program Type: Manual / Not Programmed
• Energy Star Certified: No
• Alerts and Reminders: Filter Change, High Indoor Temperature, Low Indoor Temperature, WiFi No Internet
• Power Supply: 30 VAC
• Warranty: 5 Years
• WiFi: No
• Z-Wave: No
• RedLINK: No
• Color: Premier White®
• Sensor Type: Bimetal
• Ambient Operating Temperature (Max): 102 °F
• Ambient Operating Temperature (Min): 37 °F
• Differential Temperature: 0.1 °F, 0.1 °C
• Temperature Accuracy: ±2 °F, ±1 °C
• Mounting Type: Vertical Mount
• Scale Markings: Not Applicable
• Shipping and Storage Temperature (Max): 122 °F, 50 °C
• Shipping and Storage Temperature (Min): -4° F, -20° C
• Switch Action: SPST
• Product Height: 3.56 in, 91 mm
• Product Width: 5.81 in, 147 mm
• Product Depth: 1.5 in, 38 mm
• Bulb Diameter: Not Applicable
• Bulb Length: Not Applicable
• UPC: 085267275590
• Country of Origin: MX
• Category: Non-Programmable Thermostats

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
