Description

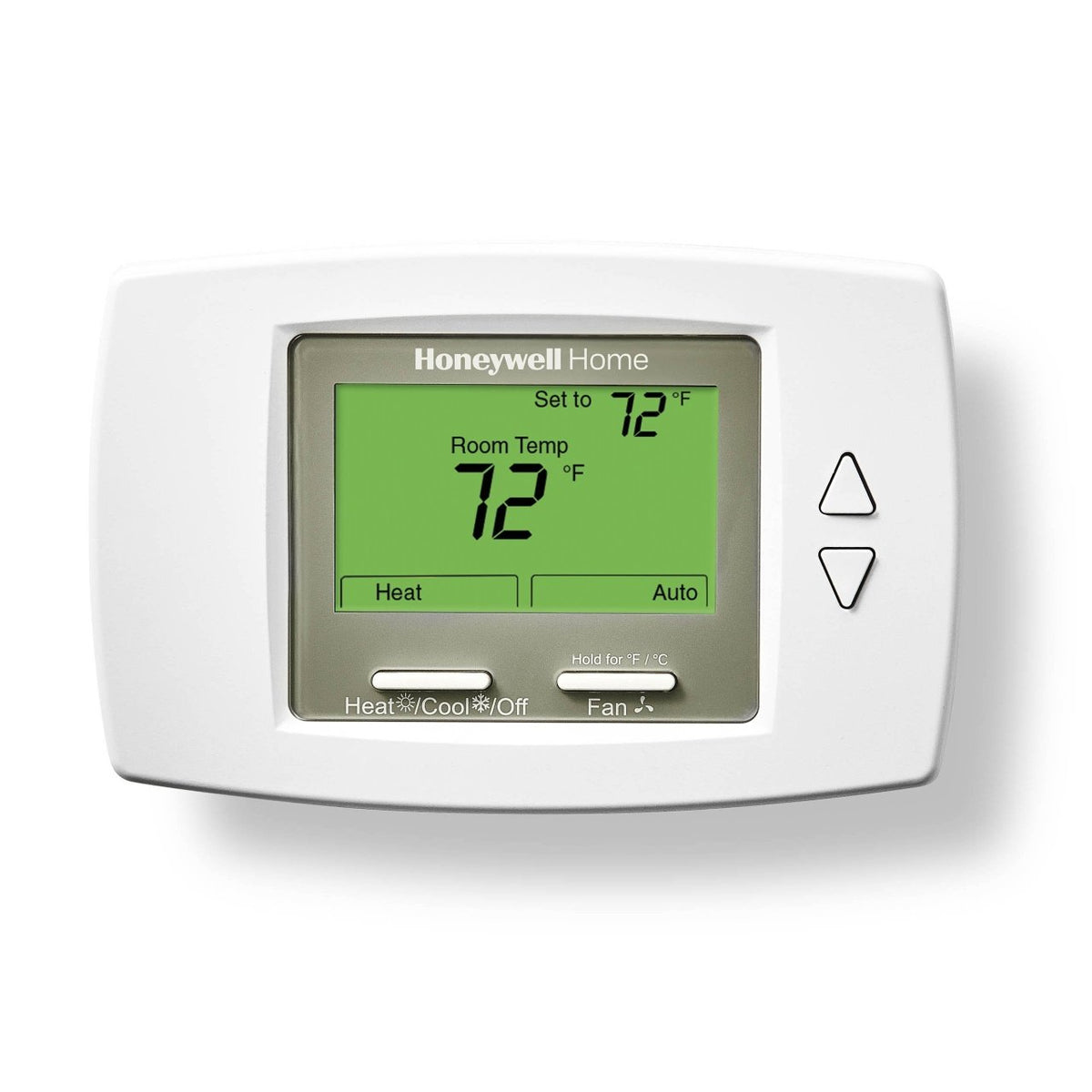

SuitePRO digital thermostat for 2- or 4-pipe fan coils with manual/auto heat-cool changeover, 3-speed fan control and a 50–90°F setting range.
Features
- With its perfect blend of energy savings, attractive design and ease of use
- SuitePRO is the ideal choice for personal-stay buildings with multiple rooms. You’ll enjoy the repeat business that comes from keeping customers comfortable, and you’ll enjoy the added profits of daily energy savings
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TB6575A1000/U
- Application: 2 or 4 pipe fan coil, Heat/Cool manual/auto changeover, 3-speed fan, 120 - 240 Vac
- Thermostat Type: Digital, Non programmable, Fan coil
- Approvals and Standards: CSA Certified, FCC Part 15, Class B, Meets the same requirements as UL-873
- Smart Home Integration: No
- Display Type: LCD Screen
- Touchscreen: No
- Modes of Operation: Heating
- Energy Star Certified: No
- Heat-Cool Changeover: Auto, Manual
- Power Source: Line Voltage
- Warranty: 2 Years
- For Use With: Thermostats/Timers, Single zone Thermostat range
- WiFi: No
- Z-Wave: No
- RedLINK: No
- Color: Premier White®
- Sensor Type: NTC 20 kohm
- Ambient Operating Temperature (Max): 90 °F, 32 °C
- Ambient Operating Temperature (Min): 40 °F, 4 °C
- Operating Relative Humidity (Max): 95% RH, non-condensing
- Operating Relative Humidity (Min): 5% RH, non-condensing
- Mounting Type: Horizontal mounting on 2 x 4 in. (50 mm x 75 mm) single gang electrical box, Vertical mounting 2 x 4 in. or 4 x 4 in junction box with optional wall plate (50033847-001)
- Power Supply Frequency: 50 Hz, 60 Hz
- Shipping and Storage Temperature (Max): 130 °F, 55 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Mounting Location: J-Box
- Product Height: 3.82 in, 97 mm
- Product Width: 5.82 in, 148 mm
- Product Depth: 1.13 in, 29 mm
- UPC: 085267314466
- Country of Origin: MX
- Category: Non-Programmable Thermostats
