| Electrical Ratings | Equipment Interface Module--18 to 30 Vac, 50 Hz; 60 Hz |
| Application | Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity |

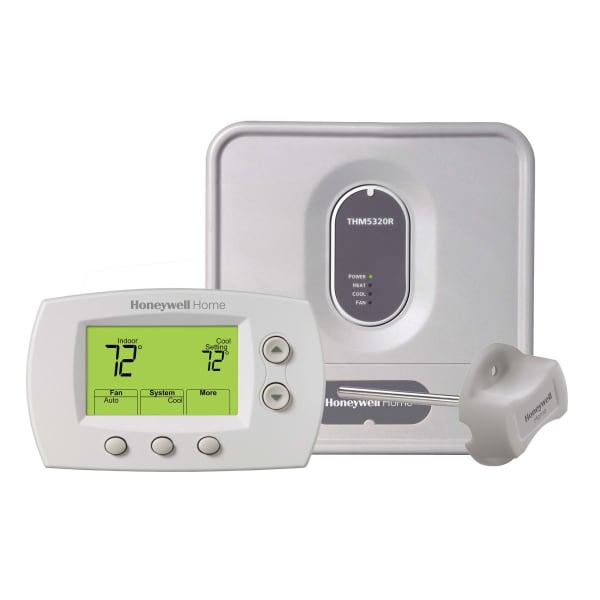

| Includes | C7735A1000 Return Air Sensor; THM5320R1000 Equipment Interface Module; TH5320R1002 Wireless FocusPRO® Non-Programmable Thermostat |
| Stages | Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON |
| Power Method | Thermostat--Battery |
| Terminal Designations | C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS |
| Changeover | Auto or Manual Selectable |
| Cool Current | 1.0 A running |
| Heat Current | 1.0 A running |
| Fan Current | 0.6 A running |
Description
The YTH5320R1000 is a FocusPRO kit from Resideo (Honeywell Home) for TrueZONE panels, covering up to 3 heat and 2 cool stages.
The kit pairs the thermostat with what the zone panel needs to talk to it, which is why it is sold as a kit rather than as a stat on its own. On a TrueZONE system the panel and the thermostat are commissioned together.
Three heat and two cool stages covers a heat pump with auxiliary heat, or a two-stage furnace with two-stage cooling — the staged equipment that a single-stage thermostat cannot drive properly.
Replacing only the thermostat on a system already running? The TH5320R1002 is the stat sold on its own.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: YTH5320R1000/U
- Type: FocusPRO kit for TrueZONE panels
- Stages: Up to 3 heat / 2 cool
- UPC: 085267329415
- Category: Thermostats
