| Operating Temperature | 32 F to 120 F |
| Operating Humidity | 5 to 90% RH, non-condensing |
| Mounting | Horizontal |
| Application | Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity |
| Dimensions | 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep |
| Hazmat Information | NOT RESTRICTED - SPECIAL PROVISION A123 |
| Stages | Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON |
| Power Method | Battery |
| Color | Premier White® |
| Sensor Element | Thermistor |
| Differential Temperature (F) | ± 1 F |
| Changeover | Auto or Manual Selectable |
| Setting Temperature Range (F) | Heat: 40 F to 90 F; Cool: 50 F to 99 F |
| Parts Needed for Operation (not included) - TrueZONE™ System | HZ432 or HZ322 TrueZONE™ panel; THM4000R1000 Wireless Adapter |
| Parts Needed for Operation (not included) - Non-Zoned System | THM5320R1000 Equipment Interface Module |
Description

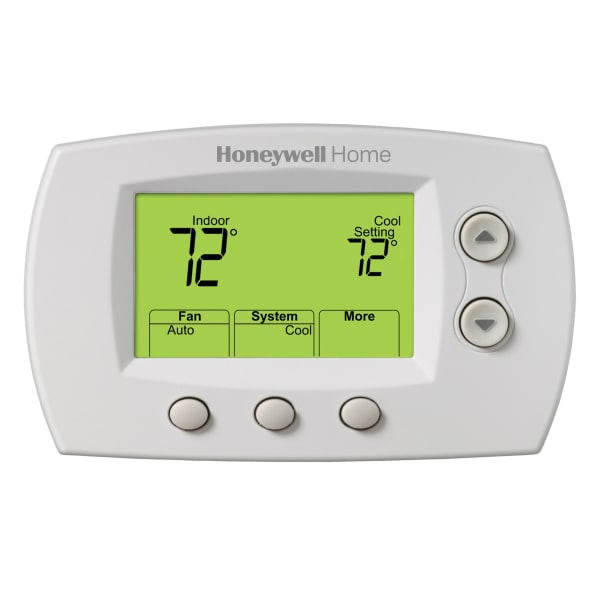

The TH5320R1002 is a non-programmable thermostat from Resideo (Honeywell Home).
A non-programmable thermostat holds one setpoint until someone changes it. That is the whole design, and it is the right design more often than the market admits: in a shop, a rental, a spare room or anywhere occupancy has no schedule, a programmable stat gets overridden permanently within a week and then behaves like this one with extra steps.
Where it hangs decides what it reads. A thermostat measures the air touching it and nothing else, so an interior wall about five feet up, out of direct sun, away from supply registers and doorway drafts, and clear of the back of a wall carrying hot water or flue pipe. Most complaints that a stat is “off by three degrees” are placement, not calibration — the stat is reading the truth about a spot nobody lives in.
These are also the straightforward answer to the C-wire problem. A smart thermostat needs a common wire to power itself continuously, and in an older house that wire is often not in the bundle — which turns a thermostat swap into a wire pull. A non-programmable stat does not draw a continuous 24 V supply for itself, so the wires already on the wall are usually the wires it needs.
If the stat has an adjustable heat anticipator, set it to the current stamped on the primary control rather than leaving it where it arrived. Too low and the burner shuts off early and the room never reaches setpoint; too high and it overshoots and then coasts cold. It is the one adjustment on a stat like this that changes comfort, and the one most often skipped.
Confirm the system type before ordering — low voltage, line voltage and millivolt thermostats look similar and are not interchangeable.
This is the thermostat on its own, for replacing a unit on a system that is already commissioned. For a new install, the YTH5320R1000 FocusPRO kit for TrueZONE panels is the one to order.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH5320R1002/U
- Type: Non-programmable thermostat
- UPC: 085267329392
- Category: Thermostats
