Description

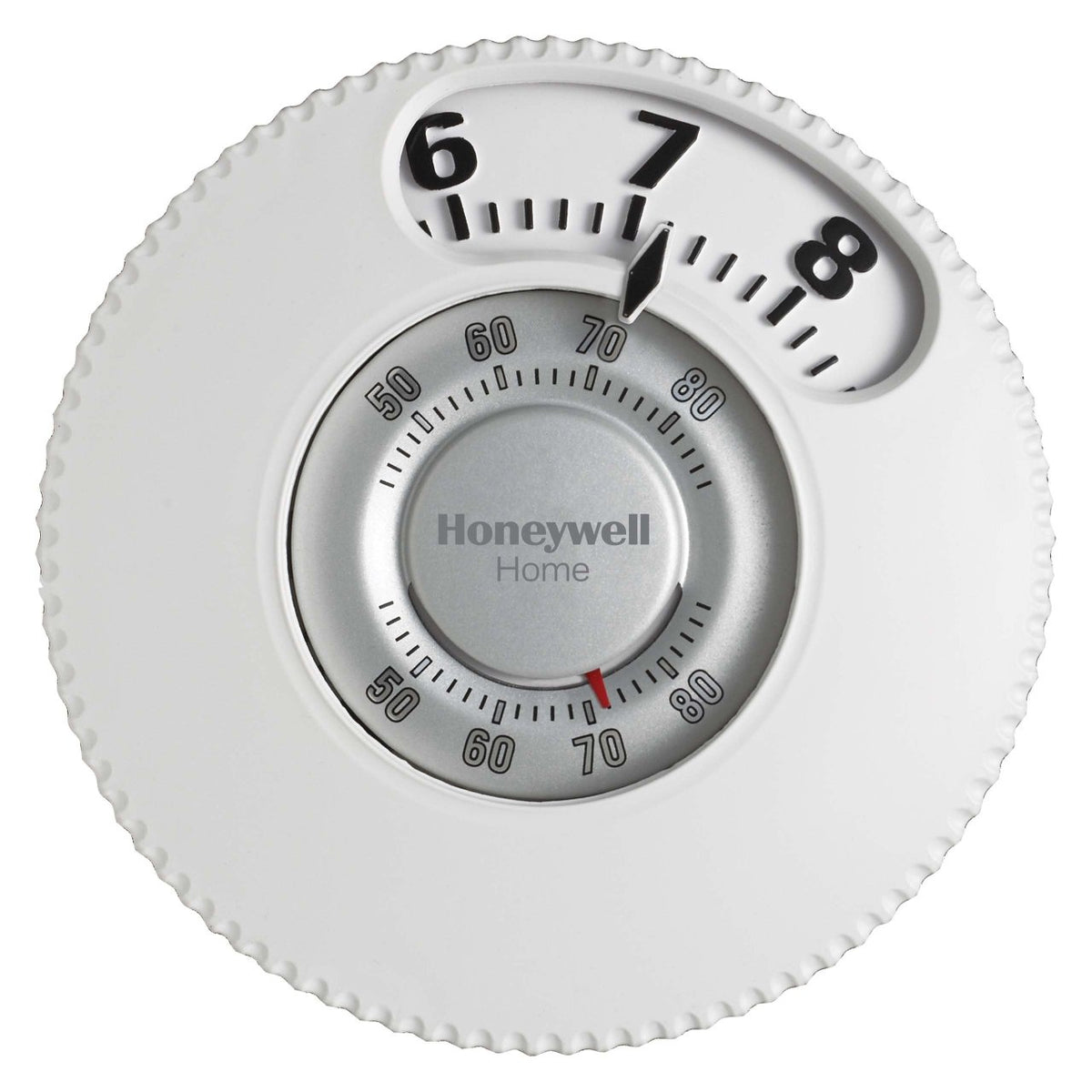

Easy-to-see T87N 1 heat/1 cool thermostat with a 40–90°F scaleplate in Premier White.
Features
- Surface mounting thermostat for applications with hot water storage cylinders or water pipes
- Version available for use as a cylinder thermostat in domestic hot water installations
- Version available for use as a pipe thermostat in fan-coil applications
- Version available for use as a pipe thermostat in frost protection applications
- Version available for use as a pipe thermostat to limit the supply water temperature in underfloor heating and solid fuel systems
- The S.P.D.T. switching action is accomplished by asnap-action MICRO SWITCH which is actuated by a bimetal temperature sensing element
- The desired temperature control point is set by the clearly scaled temperature selector on the front cover
- Wiring terminals are easily accessible
- Screwdriver slot temperature setting, with optional manual setting knob supplied
- CE approved
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: T87N1026/U
- Application: Conventional Systems, Heat Pumps with No Auxiliary Heat
- Thermostat Type: Non programmable
- Approvals and Standards: CE, L641 (product must be wired as shown for CE compliance )
- Stages: 1 Heat/1 Cool
- Smart Home Integration: No
- Display Size: 1.73 sq in
- Touchscreen: No
- Modes of Operation: Cooling, Heating, Emergency Heat
- Program Type: Manual / Not Programmed
- Power Supply: Battery Powered, Hardwired
- Battery Type: Primary
- Frequency: 50 Hz, 60 Hz
- Battery Chemistry: Lithium-Ion
- Warranty: 1 Year
- Includes: 6 in. (152 mm) cover ring and switch position labels
- For Use With: Electronic control of 24 Vac heating and cooling systems
- WiFi: No
- Z-Wave Specifications: Not Applicable
- RedLINK: No
- Color: Premier White®
- Sensor Type: Thermistor
- Temperature Accuracy: 1°C, 2°F
- Mounting Type: Wall Mounted
- Number of Fan Speeds: 1
- Number of Switch Steps: 1, SPDT 230 V AC, 4 A resistive, 2 A inductive
- Set point Temperature (Max): Heat: 90 F, Cool: 99 F
- Set point Temperature (Min): Heat: 40 F, Cool: 50 F
- Shipping and Storage Temperature (Max): 70 °C
- Shipping and Storage Temperature (Min): 0 °C
- Product Height: 3.69 in, 94 mm
- Product Length: 44 mm
- Product Width: 3.69 in, 94 mm
- Product Weight: kg
- Product Depth: 1.09 in, 28 mm
- Hazmat Information: LITHIUM METAL BATTERIES in compliance with Section II of PI970
- UPC: 085267263634
- Country of Origin: MX
- Category: Non-Programmable Thermostats
