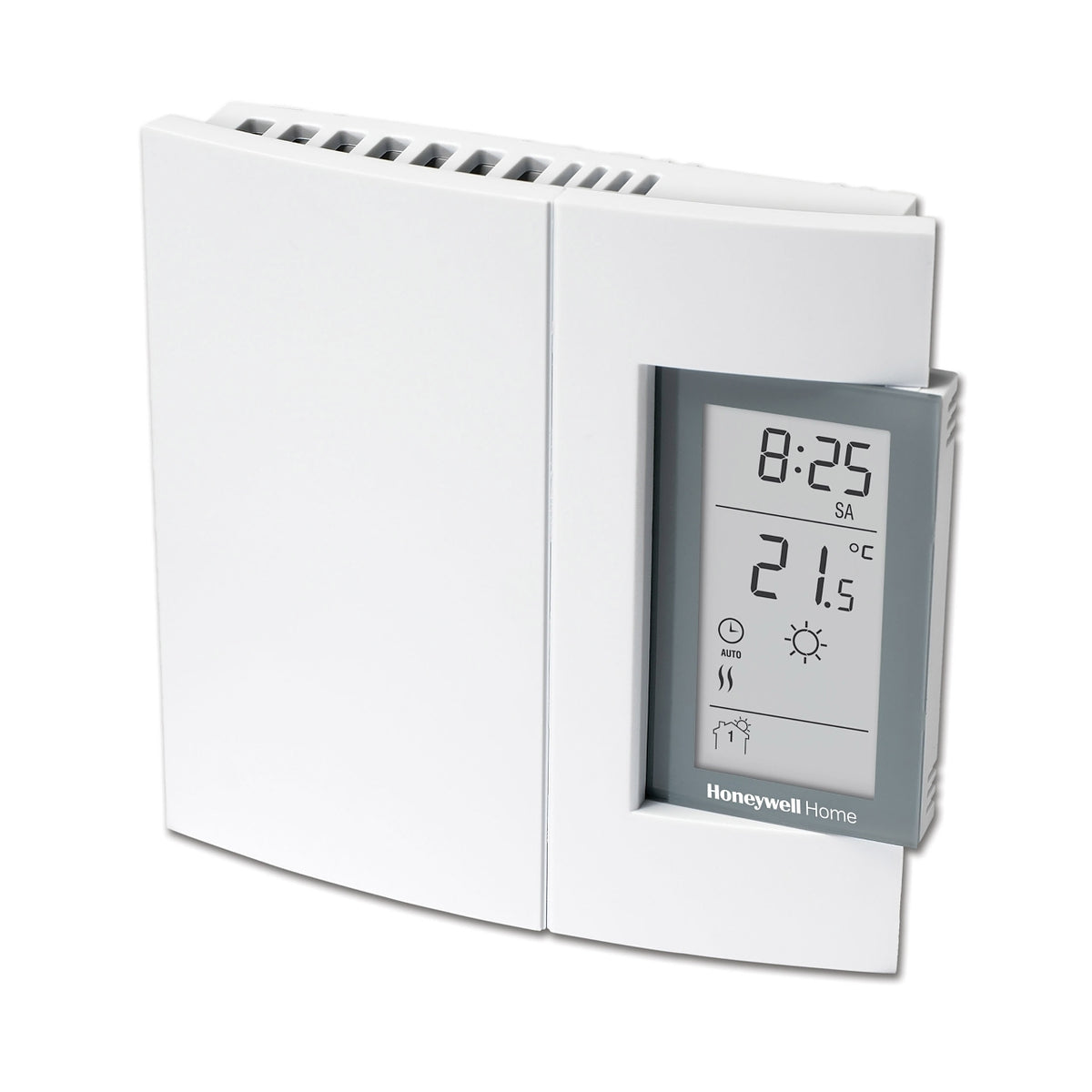

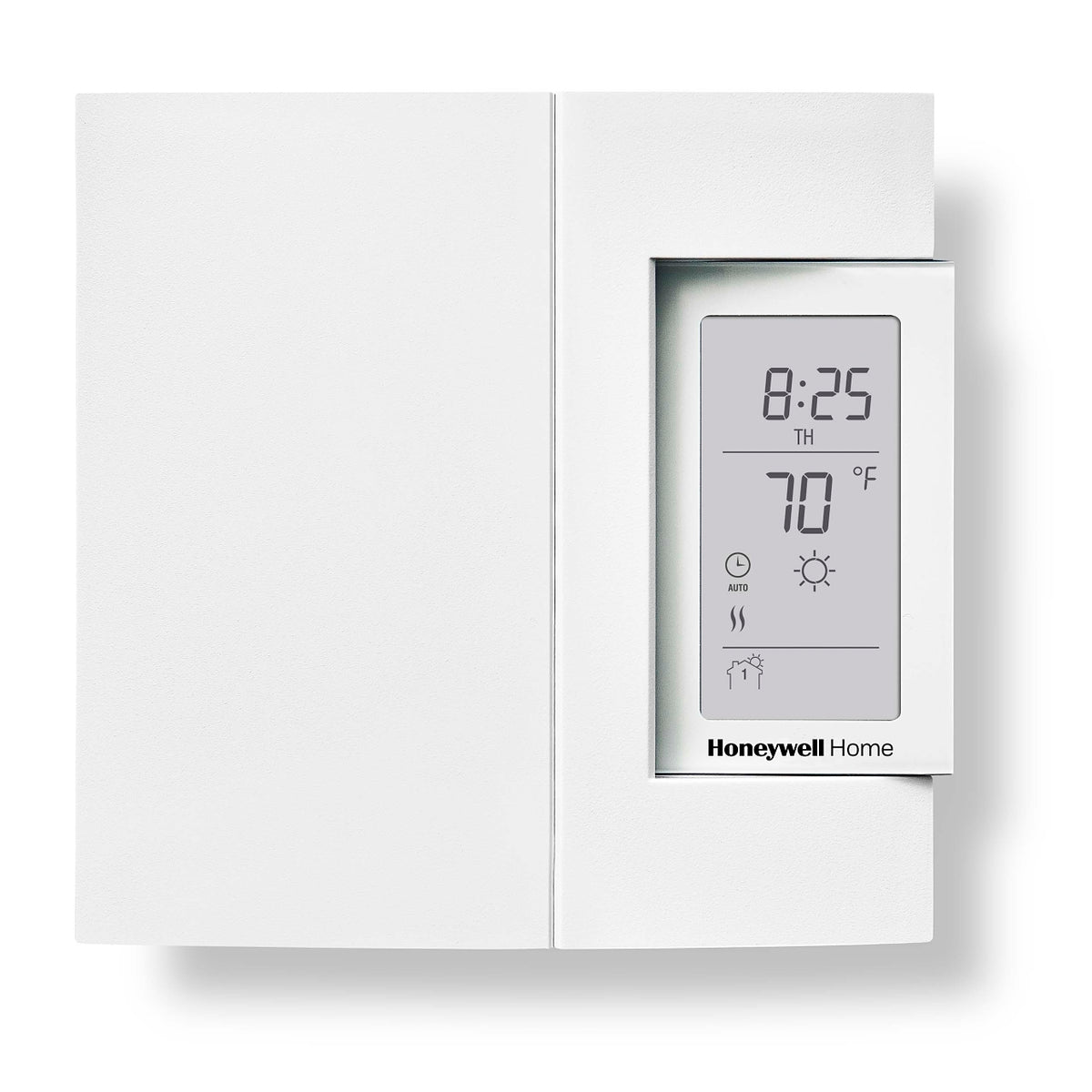

Resideo TH106/U Electric Heat 7-Day Programmable Thermostat, Triac, 120/240 V, 16.7 A

Electric heat triac 7-day programmable thermostat rated 16.7 A at 120/240 V, single pole.

Features

• Wall mounted line voltage fan-coil thermostat
• Dual diaphragm sensing element ensures close temperature control for all loads and applications
• Attractive modern styling makes this thermostat ideal for locating in the occupied space, particularly in offices or hotels
• All versions have heat anticipator, which improves temperature control in both heating and cooling operation
• Thermostat mounts directly onto a wall or conduit box
• Slide switches allow manual control of system operation and fan speed

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: TH106/U
• Application: Electric Heating; Baseboard heater; Radiant ceiling; Convector or Fan-forced Heater
• Thermostat Type: Programmable, Line Voltage
• Approvals and Standards: CE
• Smart Home Integration: No
• Display Type: LCD Screen
• Display Size: 5.09 sq in
• Modes of Operation: Heat
• Programming Features: Economy Mode, Vacation Mode, Comfort Mode, Wake Mode, Leave Mode, Return Mode, Sleep Mode
• Program Type: 7-Day Programmable
• Power Supply: Hardwired
• Frequency: 50 Hz, 60 Hz
• Warranty: 3 Years
• Includes: 2 6-32 Mounting Screws, 2 Solderless connectors
• Z-Wave Specifications: Not Applicable
• RedLINK: No
• Color: White
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 122 °F, 50 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: 1 °F, 0.5 °C
• Clock Type: Week Clock
• Mounting Type: Vertical Mount
• Set point Temperature (Max): 86 °F, 30 °C
• Set point Temperature (Min): 40 °F, 5 °C
• Shipping and Storage Temperature (Max): 50 °C
• Shipping and Storage Temperature (Min): -20 °C
• Switch Action: SPST
• Switch Type: Triac
• Product Height: 4.9 in, 124 mm
• Product Length: 5 in, 127 mm
• Product Width: 1.5 in, 38 mm
• Product Depth: 1.5, 38
• UPC: 775264310607
• Country of Origin: CN
• Category: Line Voltage Thermostats
