Description

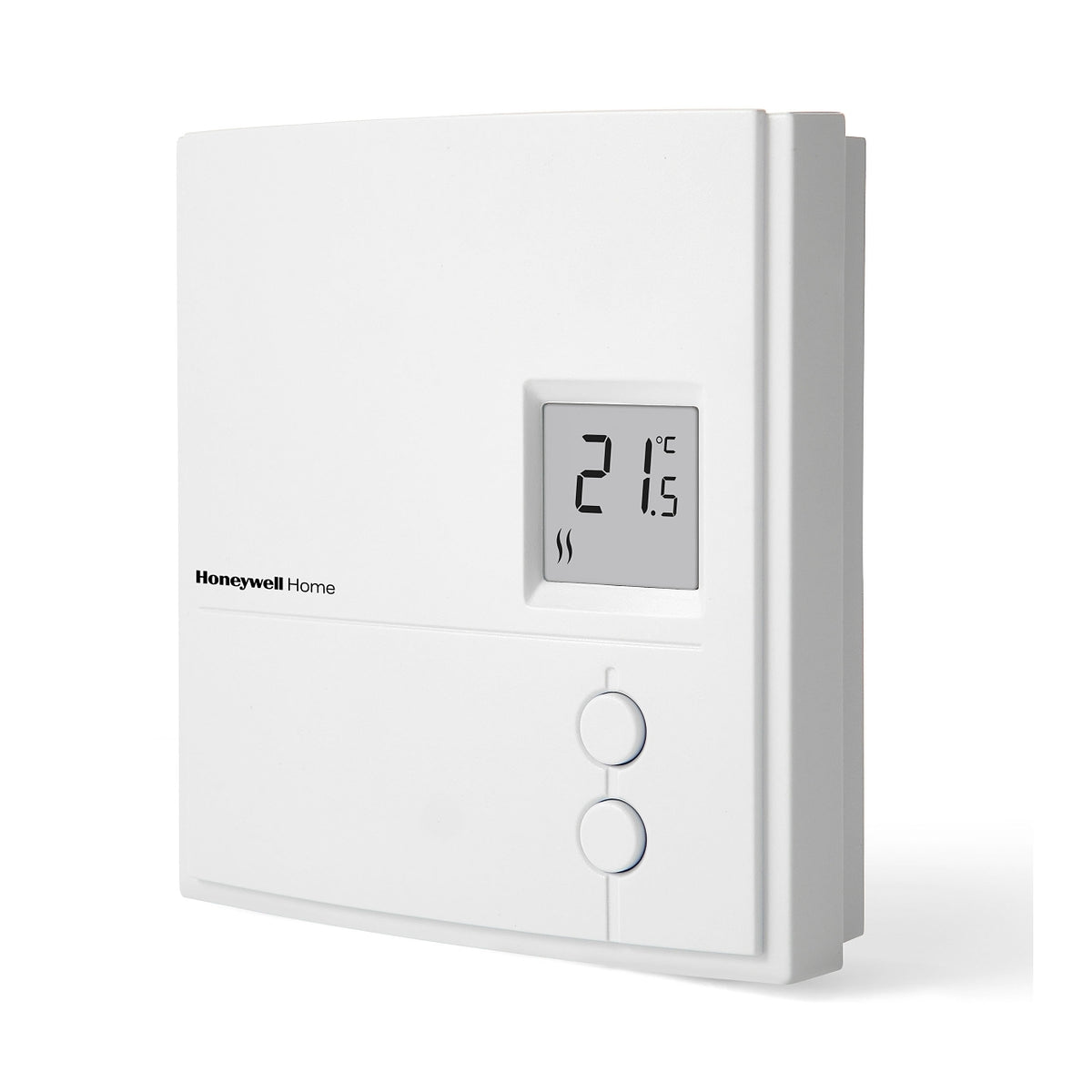

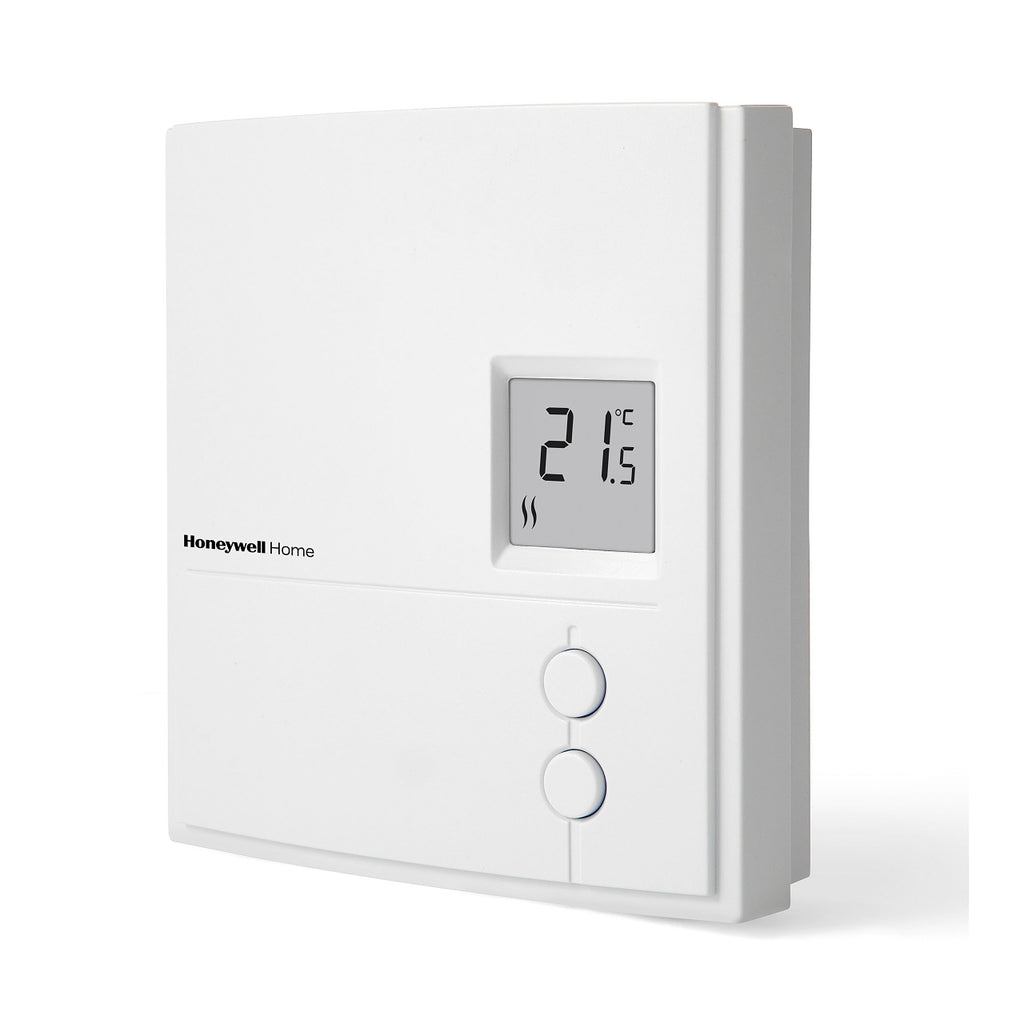

Non-programmable line voltage thermostat rated 3000 W.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH109PROPLUS/U
- Application: 24 V AC Systems
- Thermostat Type: Non programmable
- Smart Home Integration: No
- Display Size: 6.89 sq in
- Displayed Information: Indoor Temperature, Fan, Heating Intensity Indicator
- Energy Star Certified: No
- Power Supply: Hardwired
- Frequency: 60 Hz
- Warranty: 3 Years
- Includes: Thermostat, Installation Guide, Wireless Sensor, Screws, Anchors, Wire Labels
- RedLINK: No
- Color: White
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 102 °F, 39 °C
- Ambient Operating Temperature (Min): 37 °F, 2.8 °C
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Temperature Accuracy: 0.27 °F, 0.15 °C
- Connection Type: Leadwire
- Electrical Connection Type: UWP Mounting System
- Interstage Differential Temperature: 1 to 1.5 °F, 0.5 to 1°C
- Mounting Type: Vertical Mount
- Set point Temperature (Max): 85 °F, 30 °C
- Set point Temperature (Min): 40 °F, 5 °C
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Switch Action: SPST
- Switch Type: Triac
- Product Height: 4.9 in, 124 mm
- Product Length: 4.5 in, 115 mm
- Product Width: 1 in, 26 mm
- Product Depth: 1, 26
- UPC: 194159005914
- Country of Origin: CN
- Category: Line Voltage Thermostats
