Description

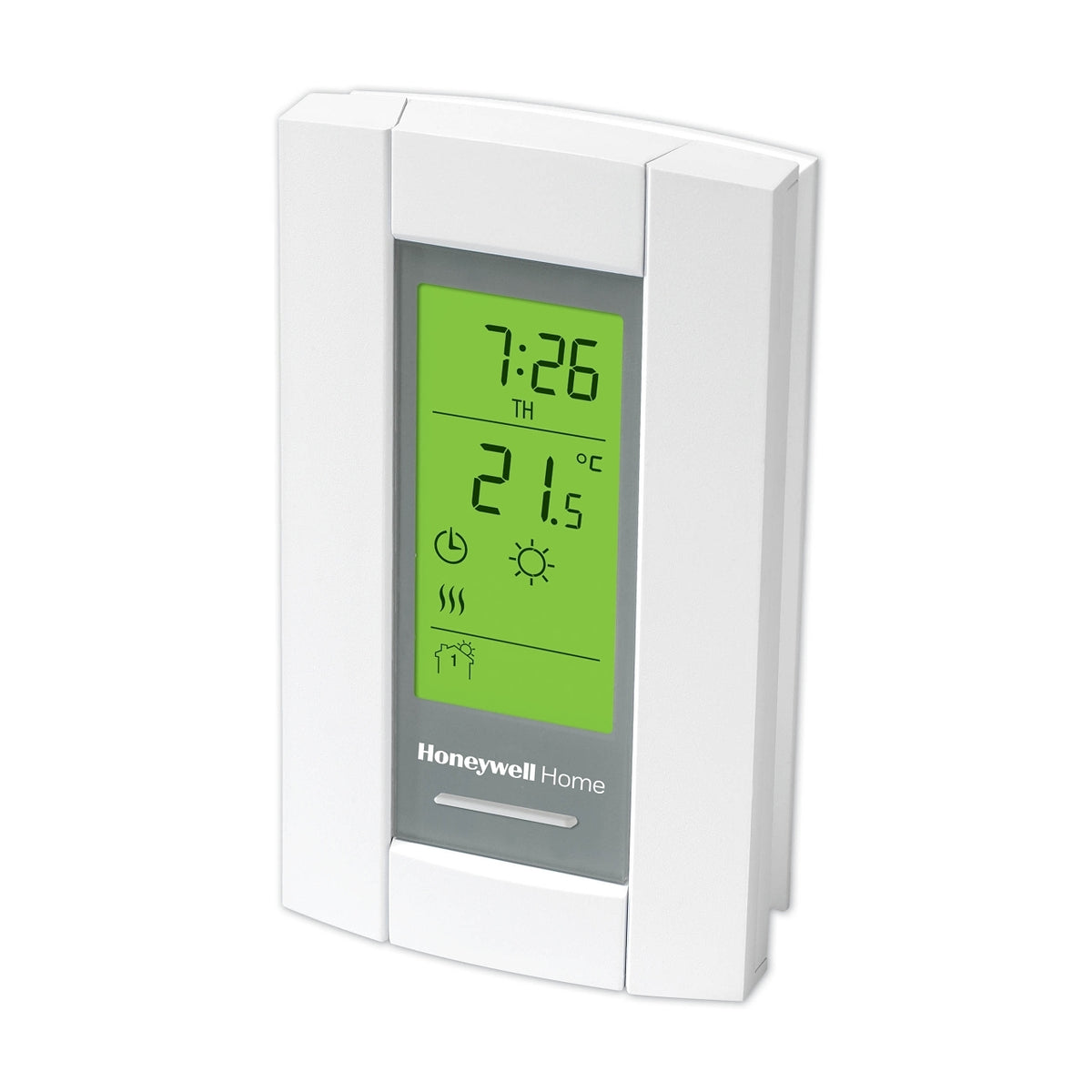

7-day programmable line voltage thermostat for floor heating rated 15 A at 120/240 V, with 5 mA GFCI and a backlit screen.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH115-AF-GA/U
- Application: Radiant floor
- Thermostat Type: Programmable, Line Voltage
- Smart Home Integration: No
- Display Type: LCD Screen
- Display Size: 10 sq in
- Modes of Operation: Heat, Off
- Programming Features: Economy Mode, Vacation Mode, Comfort Mode, Temporary Override
- Program Type: 7-Day Programmable, Manual / Not Programmed
- Energy Star Certified: No
- Power Supply: Hardwired
- Frequency: 60 Hz
- Warranty: 3 Years
- Includes: 15-feet / 4.6-m floor sensor
- For Use With: Aube CT240/CT241 Telephone Controller; Aube AC112-01 15-feet/4.6-m floor sensor
- Z-Wave Specifications: Not Applicable
- RedLINK: No
- Color: White
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 120 °F, 49 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Differential Temperature: 1 °F, 0.5 °C
- Backlight Options: Backlight Button
- Clock Type: Year Clock
- Mounting Type: Vertical Mount
- Set point Temperature (Max): Room: 86 °F, Room: 30 °C, Floor: 104 °F, Floor: 40 °F
- Set point Temperature (Min): Room: 40 °F, Room: 5 °C, Floor: 40 °F, Floor: 5 °F
- Switch Action: DPST
- Switch Type: Relay
- Product Height: 4.9 in, 124 mm
- Product Length: 2.8 in, 70 mm
- Product Width: 0.9 in, 23 mm
- Product Depth: 0.9, 23
- UPC: 775264115707
- Country of Origin: CN
- Category: Line Voltage Thermostats
