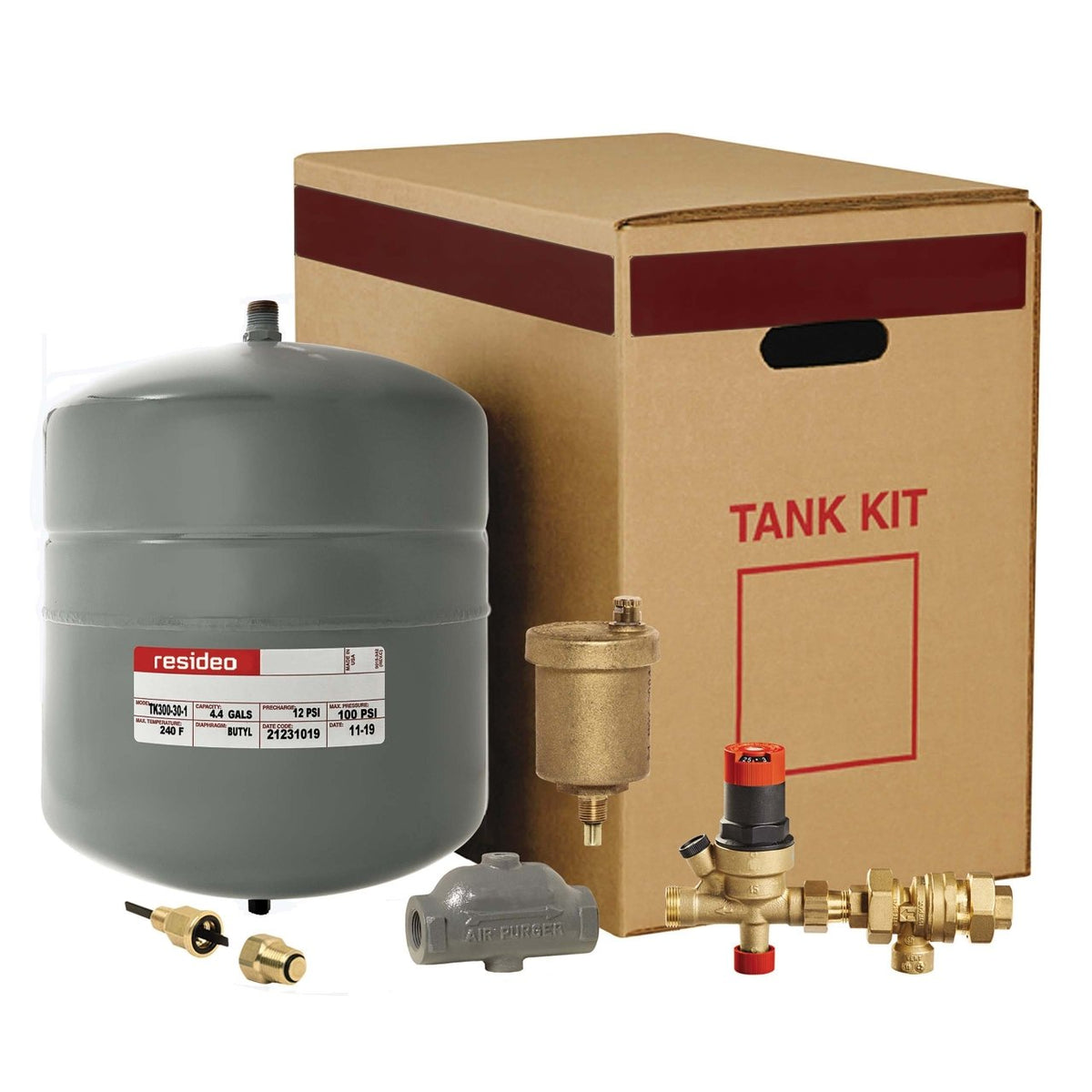

Resideo TK300-30A-1FM/U Boiler Trim Kit with TK300-30 Tank, AP400 1 in Air Purger and FM911 Fill Valve

Boiler trim kit with TK300-30 tank, AP400 1 in NPT air purger, FV180 air vent, FM911 fill valve with backflow preventer, SCV-0125 and SCV-050.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: TK300-30A-1FM/U
• Application: Boiler Installation
• Compatible With: Hot Water, Solar
• Includes: TK300-30, AP401, FV180, SCV-0125, SCV-050, FM911
• Warranty: 1 Year
• Operating Temperature (Max): 240 °F, 115 °C
• Connection Size-Air Purger: 1 in
• Connection Size-Tank: 1/2 in
• Connection Type-Air Purger: Female NPT
• Operating Pressure (Max): 100 psi, 689 kPa
• Pre-Charge Pressure: 12 psi, 83 kPa
• Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
• Product Diameter: 11 in, 279 mm
• Volume: 4.4 gal, 16.7 L
• Maximum Acceptance Volume: 2.5 gal, 9.5 L
• Box Height: 15.5 in, 394 mm
• Box Weight: 16.6 lb, 7.5 kg
• Product Height: 15.5 in, 394 mm
• Product Weight: 16.6 lb, 7.5 kg
• Color: Gray
• UPC: 085267298971
• Country of Origin: US
• Category: Boiler Trim Kits
