Description

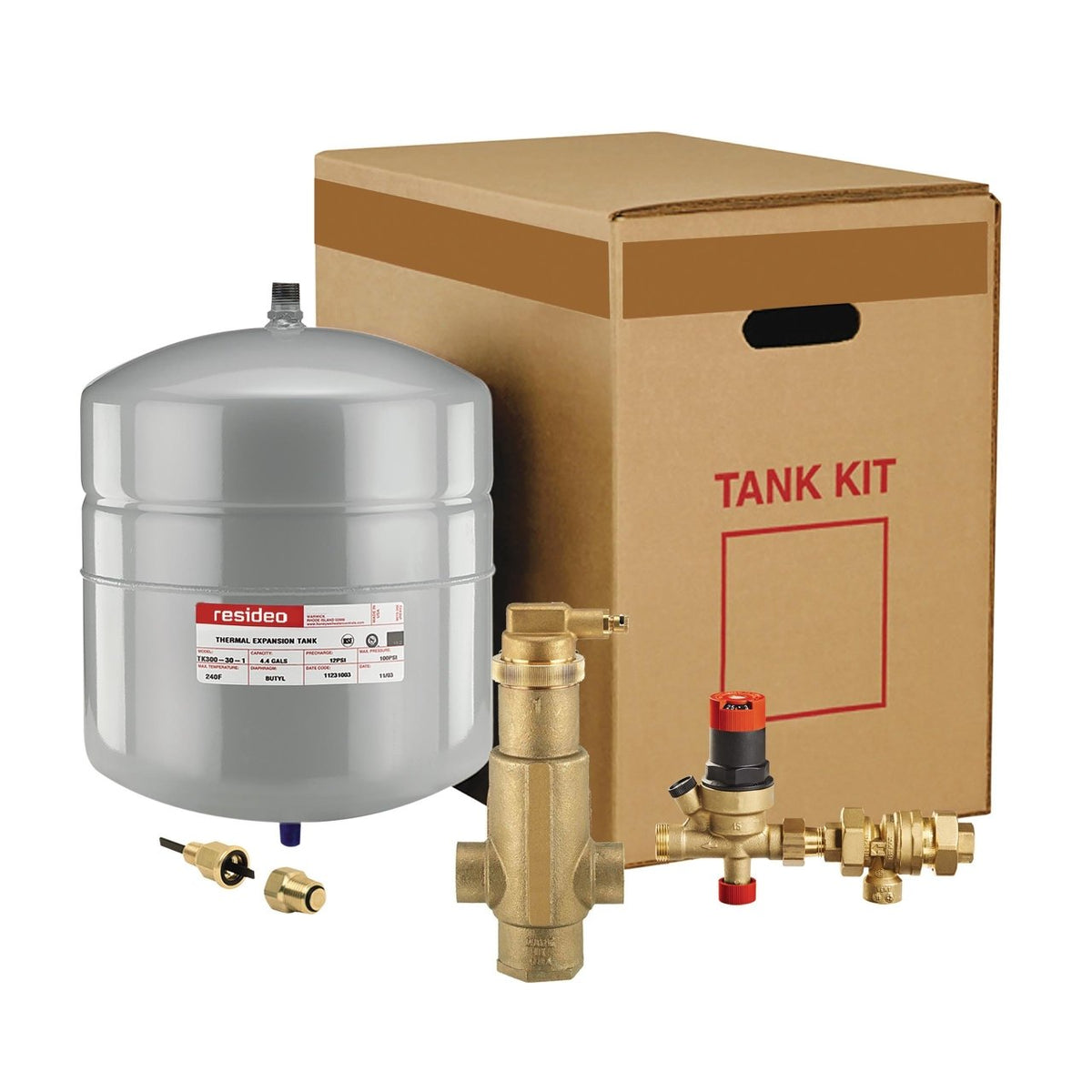

Boiler trim kit with TK300-30 tank, PV100 1 in NPT Supervent, FM911 fill valve with backflow preventer and SCV-050.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TK30PV100FM/U
- Application: Boiler Installation
- Compatible With: Hot Water, Solar
- Includes: TK300-30, PV100, FM911, SCV-050
- Warranty: 1 Year
- Operating Temperature (Max): 240 °F, 115 °C
- Connection Size-SuperVent: 1 in
- Connection Size-Tank: 1/2 in
- Connection Type-SuperVent: Female NPT
- Operating Pressure (Max): 100 psi, 689 kPa
- Pre-Charge Pressure: 12 psi, 83 kPa
- Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
- Product Diameter: 11 in, 279 mm
- Volume: 4.4 gal, 16.7 L
- Maximum Acceptance Volume: 2.5 gal, 9.5 L
- Box Height: 15.5 in, 394 mm
- Box Weight: 16.0 lb, 7.3 kg
- Product Height: 15.5 in, 394 mm
- Product Weight: 16 lb, 7.3 kg
- Color: Gray
- Hazmat Information: Dangerous Goods In Excepted Quantities
- UPC: 085267833790
- Country of Origin: US
- Category: Boiler Trim Kits
