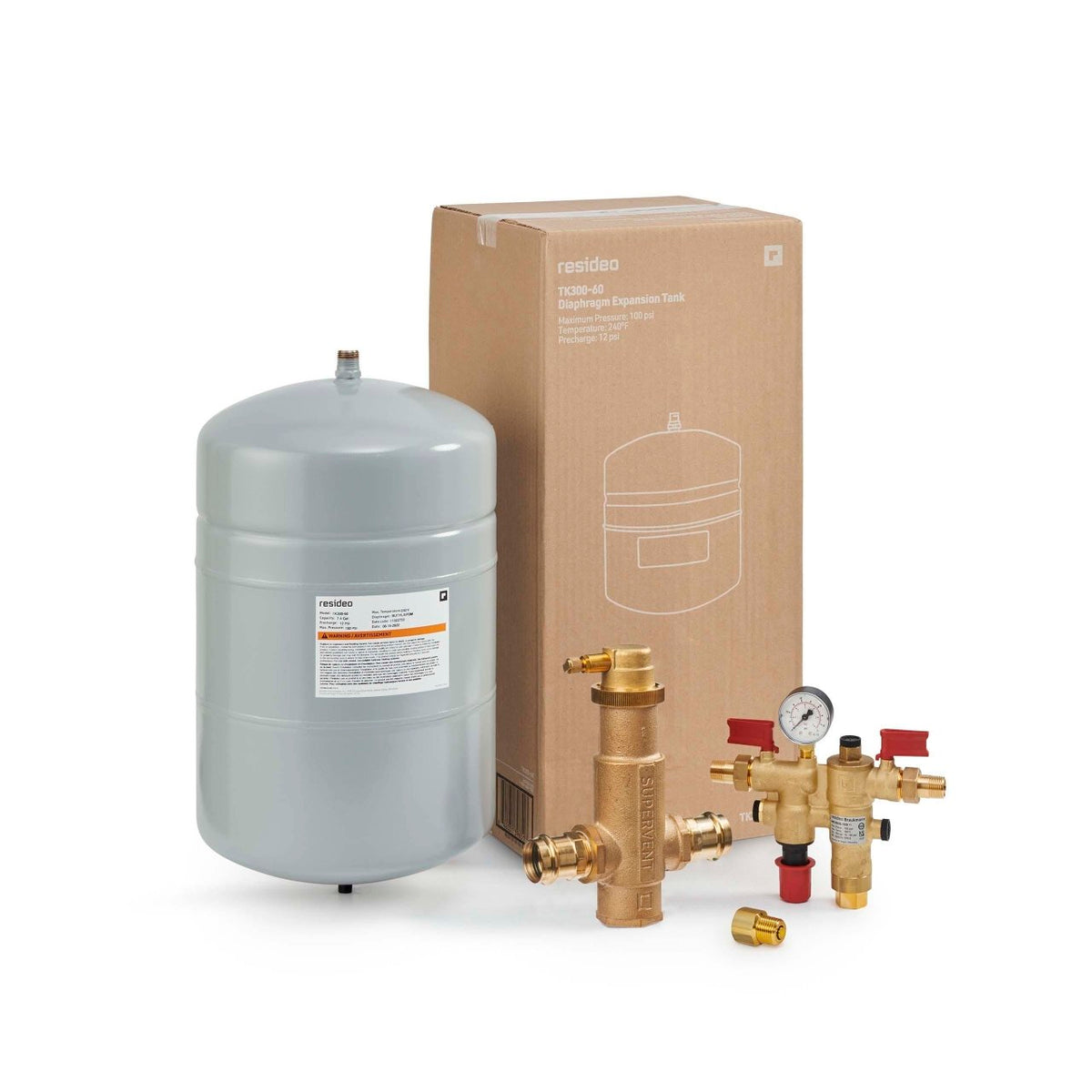

Resideo TK60PV150PNKP/U Boiler Trim Kit with TK300-60, PV150P, SCV and NK300S
Resideo

Resideo TK60PV150PNKP/U Boiler Trim Kit with TK300-60, PV150P, SCV and NK300S

Item #
HONE-TK60PV150PNKP/U
Mfr. part #
TK60PV150PNKP/U
UPC
194159014466
$614.09
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 23.0 lb
  • Box size: 30.25 × 18.4 × 15.25 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #TK60PV150PNKP/U
UPC194159014466

Boiler trim kit combining TK300-60, PV150P, SCV and NK300S.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: TK60PV150PNKP/U
  • Application: Boiler Installation
  • Compatible With: Hot Water, Solar
  • Includes: TK300-60, PV150P, SCV-050, NK300S-100UP
  • Warranty: 1 Year
  • Operating Temperature (Max): 240 °F, 115 °C
  • Connection Size-SuperVent: 1 1/2 in
  • Connection Size-Tank: 1/2 in
  • Connection Type-SuperVent: Female NPT
  • Operating Pressure (Max): 100 psi, 689 kPa
  • Pre-Charge Pressure: 12 psi, 83 kPa
  • Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
  • Product Diameter: 11 in, 279 mm
  • Volume: 7.6 gal, 28.8 L
  • Maximum Acceptance Volume: 2.5 gal, 9.5 L
  • Box Height: 23 in, 584 mm
  • Box Weight: 23 lb, 10.43 kg
  • Product Height: 23 in, 584 mm
  • Product Weight: 20.7 lb, 9.39 kg
  • UPC: 194159014466
  • Country of Origin: US
  • Category: Boiler Trim Kits

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$614.09
Backorder
