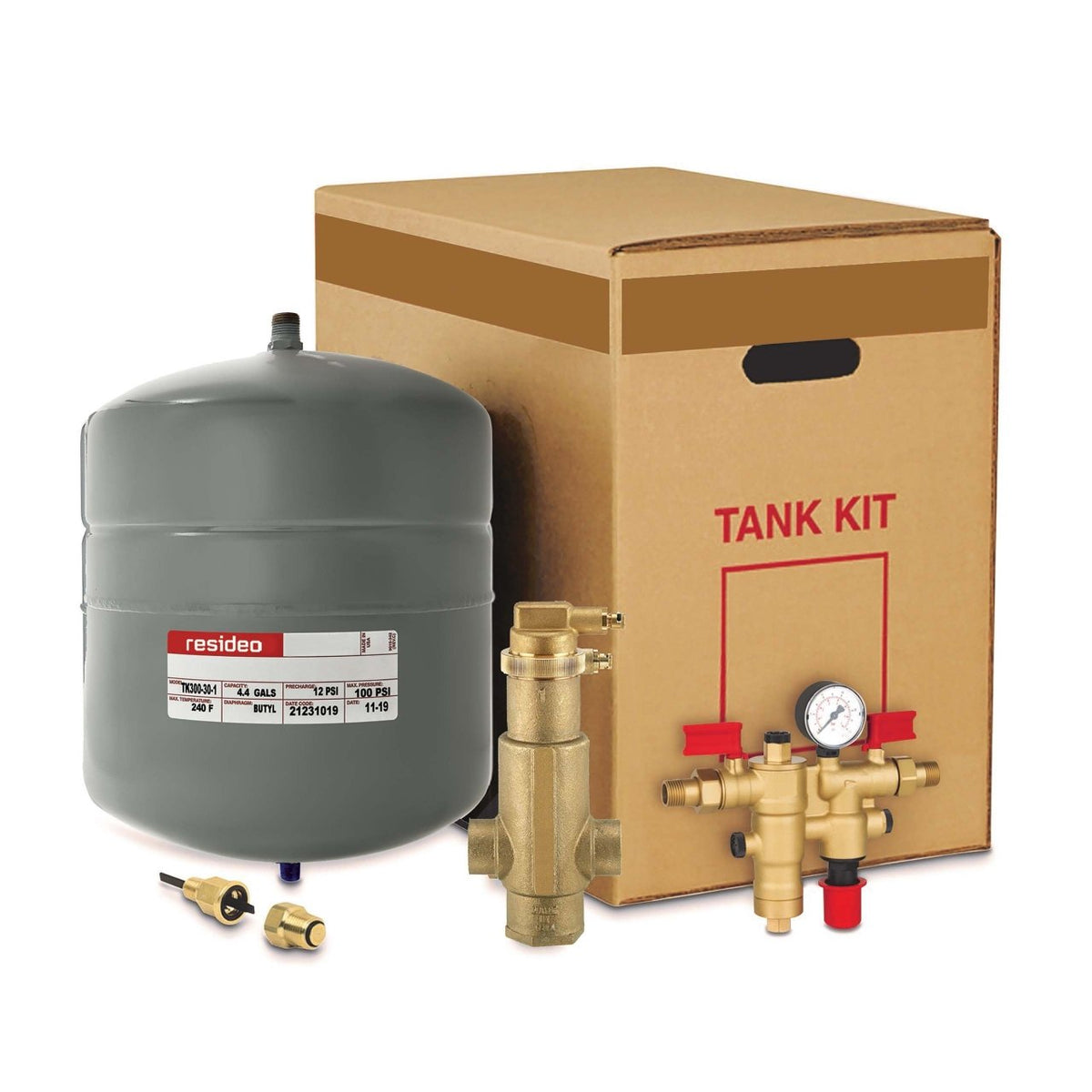

Resideo TK30PV125NK/U Boiler Trim Kit with TK300-30, PV125, SCV-050 and NK300S

Boiler trim kit combining TK300-30, PV125, SCV-050 and NK300S.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: TK30PV125NK/U
• Application: Boiler Installation
• Compatible With: Hot Water, Solar
• Includes: TK300-30, PV125, NK300S-100, SCV-050
• Warranty: 1 Year
• Operating Temperature (Max): 240 °F, 115 °C
• Connection Size-SuperVent: 1 1/4 in
• Connection Size-Tank: 1/2 in
• Connection Type-SuperVent: Female NPT
• Operating Pressure (Max): 100 psi, 689 kPa
• Pre-Charge Pressure: 12 psi, 83 kPa
• Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
• Product Diameter: 11 in, 279 mm
• Volume: 4.4 gal, 16.7 L
• Maximum Acceptance Volume: 2.5 gal, 9.5 L
• Box Height: 15.5 in, 394 mm
• Box Weight: 16.0 lb, 7.3 kg
• Product Height: 15.5 in, 394 mm
• Product Weight: 19.2 lb, 8.7 kg
• Color: Gray
• UPC: 085267564137
• Country of Origin: US
• Category: Boiler Trim Kits
