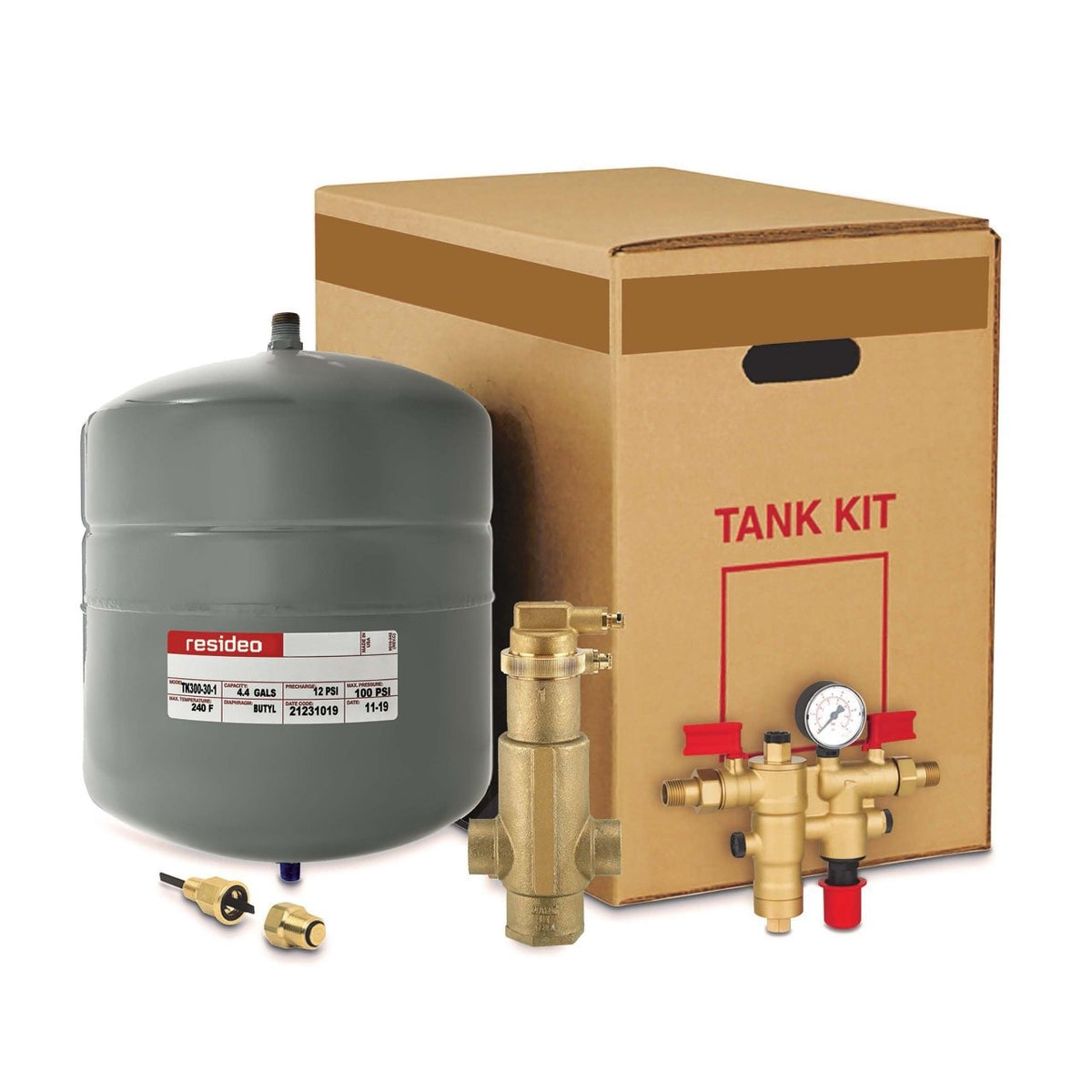

Resideo TK30PV100NK/U Boiler Trim Kit with TK300-30, PV100, SCV-050 and NK300S Boiler Feed Combination
Resideo

Resideo TK30PV100NK/U Boiler Trim Kit with TK300-30, PV100, SCV-050 and NK300S Boiler Feed Combination

Item #
HONE-TK30PV100NK/U
Mfr. part #
TK30PV100NK/U
UPC
085267557733
$429.51
Each
In stock – 4 available
Estimated delivery: –

Usually ships in 1–2 business days.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 19.2 lb
  • Box size: 19.15 × 18.8 × 12.3 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #TK30PV100NK/U
UPC085267557733

Boiler trim kit combining TK300-30, PV100, SCV-050 and NK300S boiler feed combination.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: TK30PV100NK/U
  • Application: Boiler Installation
  • Compatible With: Hot Water, Solar
  • Includes: TK300-30, PV100, NK300S-100, SCV-050
  • Warranty: 1 Year
  • Operating Temperature (Max): 240 °F, 115 °C
  • Connection Size-SuperVent: 1 in
  • Connection Size-Tank: 1/2 in
  • Connection Type-SuperVent: Female NPT
  • Operating Pressure (Max): 100 psi, 689 kPa
  • Pre-Charge Pressure: 12 psi, 83 kPa
  • Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
  • Product Diameter: 11 in, 279 mm
  • Volume: 4.4 gal, 16.7 L
  • Maximum Acceptance Volume: 2.5 gal, 9.5 L
  • Box Height: 15.5 in, 394 mm
  • Box Weight: 16.0 lb, 7.3 kg
  • Product Height: 15.5 in, 394 mm
  • Product Weight: 19.2 lb, 8.7 kg
  • Color: Gray
  • UPC: 085267557733
  • Country of Origin: US
  • Category: Boiler Trim Kits

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
