Description

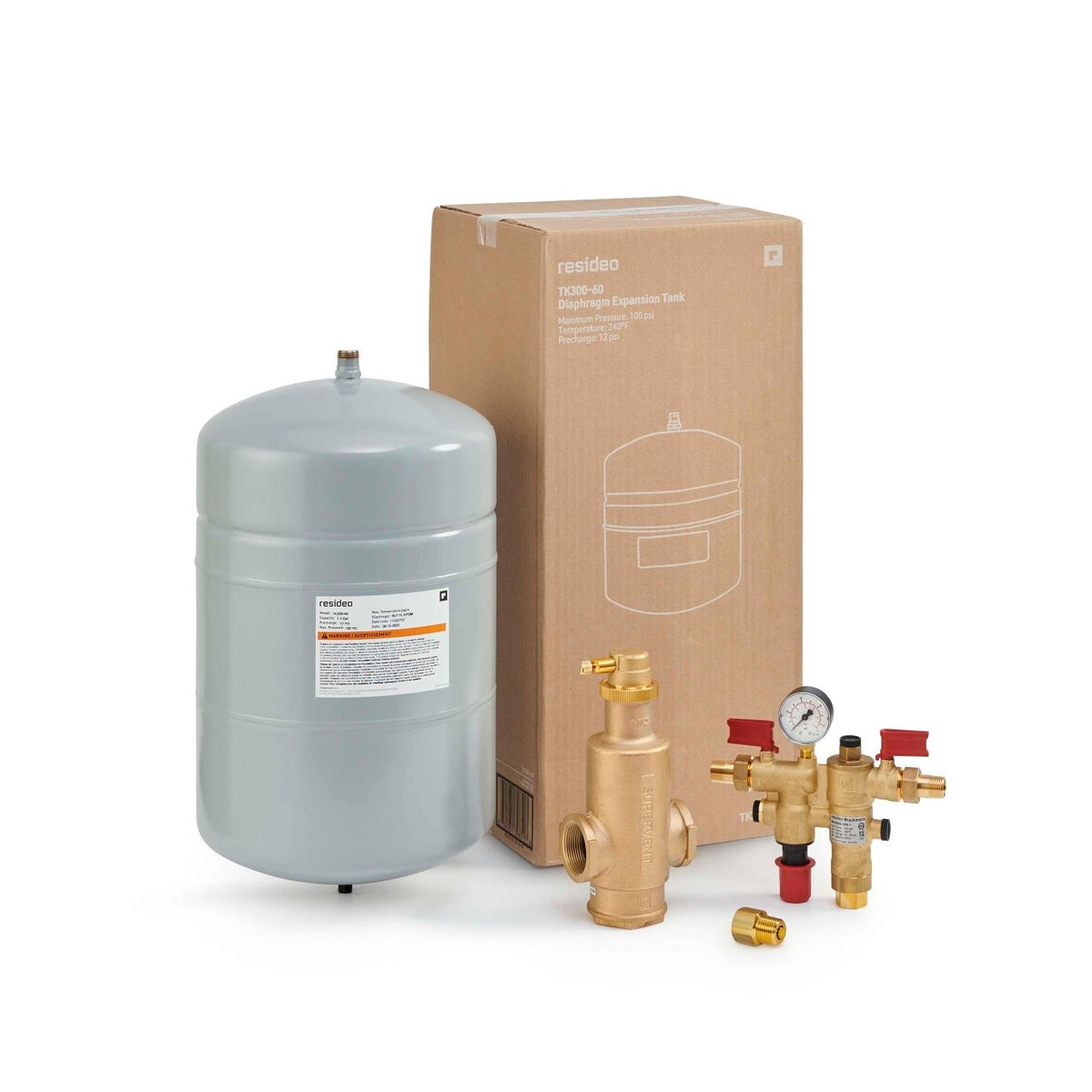

Boiler trim kit combining TK300-60, PV150, SCV and NK300S.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TK60PV150NK/U
- Application: Boiler Installation
- Compatible With: Hot Water, Solar
- Includes: TK300-60, PV150, SCV-050, NK300S-100
- Warranty: 1 Year
- Operating Temperature (Max): 240 °F, 115 °C
- Connection Size-SuperVent: 1 1/2 in
- Connection Size-Tank: 1/2 in
- Connection Type-SuperVent: Female NPT
- Operating Pressure (Max): 100 psi, 689 kPa
- Pre-Charge Pressure: 12 psi, 83 kPa
- Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
- Product Diameter: 11 in, 279 mm
- Volume: 7.6 gal, 28.8 L
- Maximum Acceptance Volume: 2.5 gal, 9.5 L
- Box Height: 23 in, 584 mm
- Box Weight: 22 lb, 9.98 kg
- Product Height: 23 in, 584 mm
- Product Weight: 20.7 lb, 9.39 kg
- UPC: 194159014459
- Country of Origin: US
- Category: Boiler Trim Kits
