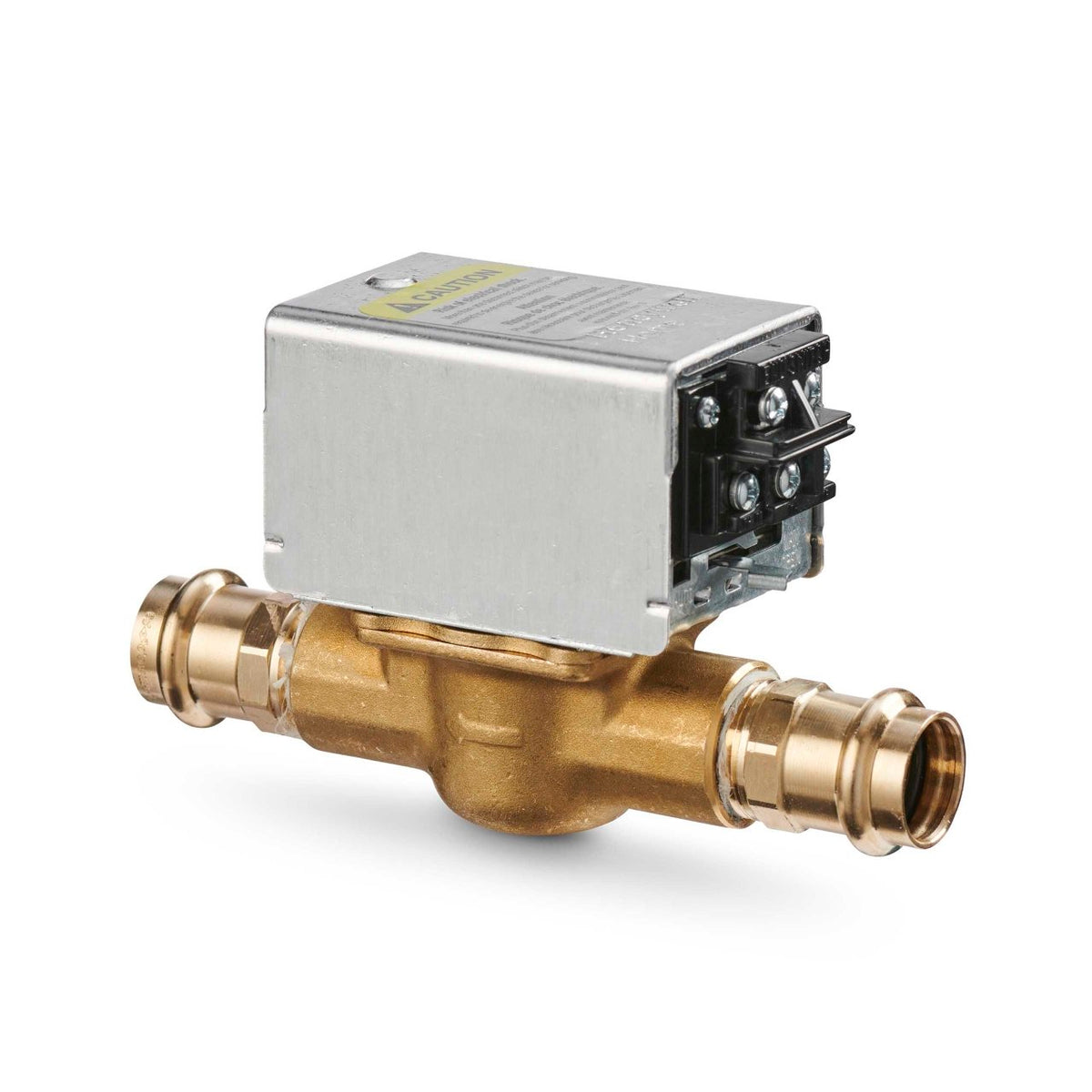

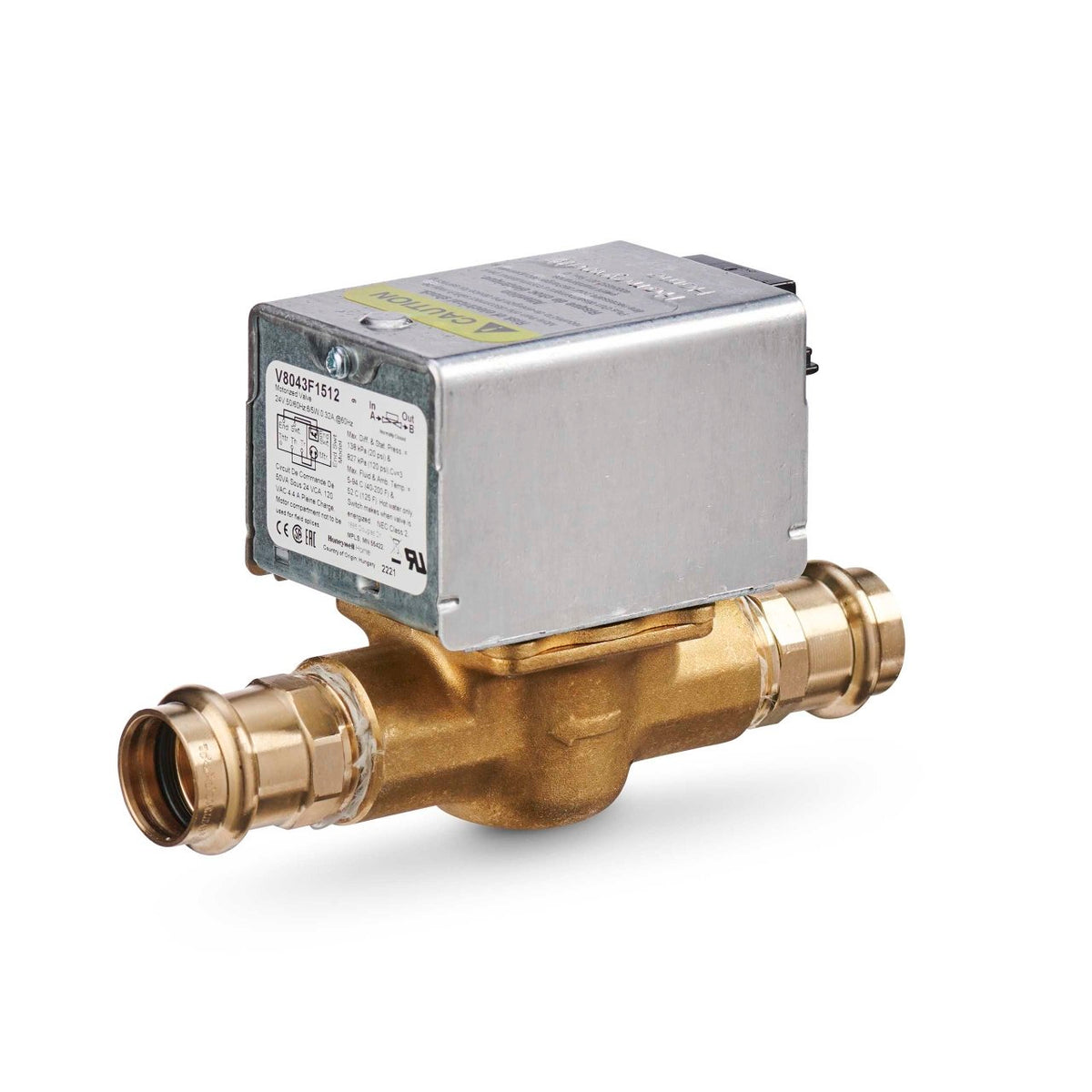

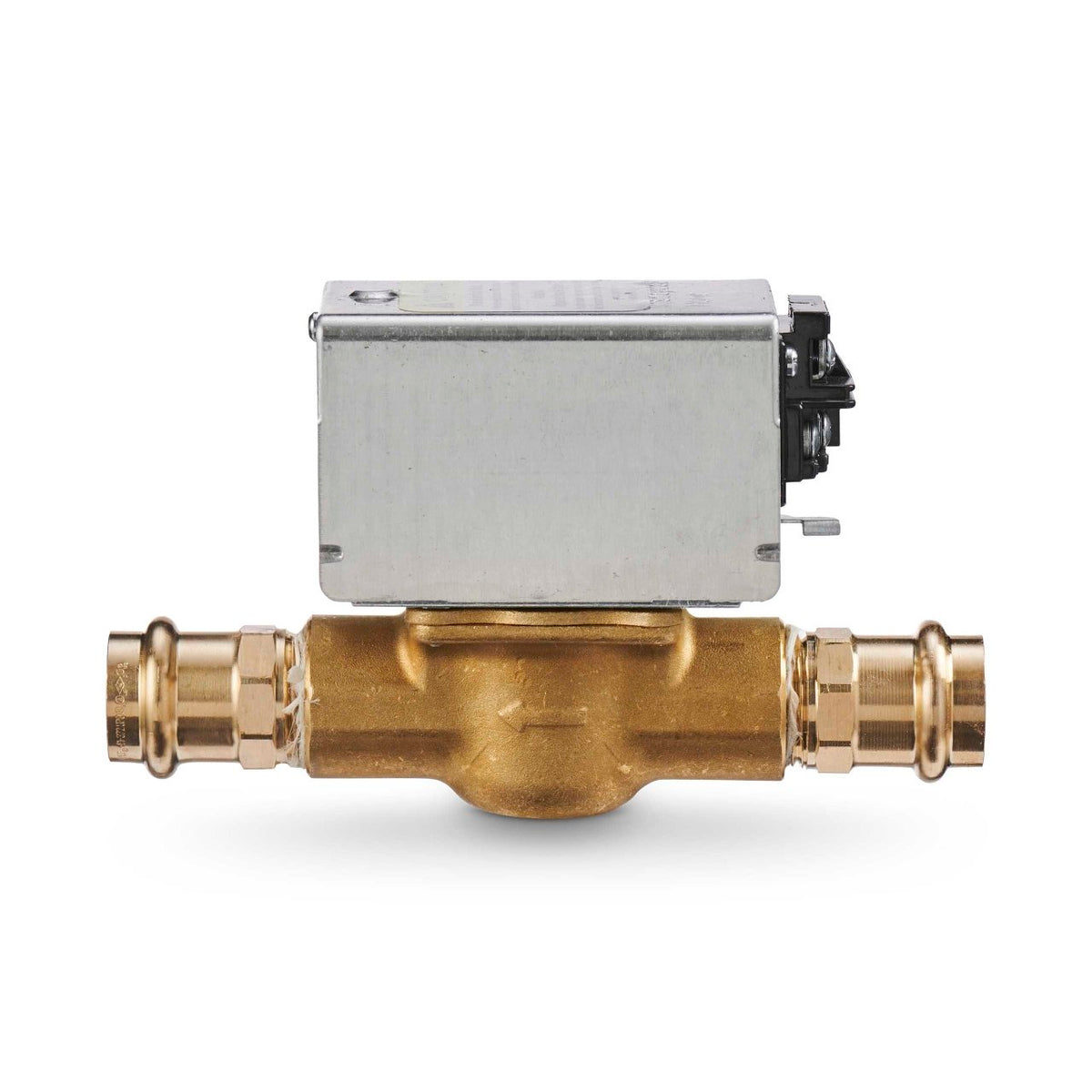

Honeywell Home V8043F1513/U 1 in Press Zone Valve with Terminal Block and End Switch

1 in press-connection valve with terminal block connections and end switch.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: V8043F1513/U
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
• Color: Brass, Black
• Includes: End switch enclosure, Manual Opener
• Product Height: 4 in
• Product Length: 6.88 in
• Product Width: 2.34 in
• Warranty: 1 Year
• Ambient Operating Temperature (Max): 125 °F, 52 °C
• Connection Type: Pro Press
• Differential pressure for close-off (Max): 20 psi, 138 kPa
• Fail-Safe Operation Type: Spring return to close
• Flow Coefficient: 8.5 Cv, 8.5 Kvs
• Media Temperature (Min): 40 °F, 4 °C
• Media Temperature (Max): 200 °F, 93 °C
• Actuator Control Signal: Two position
• Actuator Opening Time: 15 seconds
• Static Pressure Rating: 120 PSI, 827 kPa
• Valve Body Material: Brass
• Valve Body Pattern: Two-way, Straight Through
• Valve Plug Material: Buna-N (NBR) Rubber
• Valve Seat Material: Brass
• Valve Start Position: Closed
• Valve Stem Material: Stainless Steel
• UPC: 085267882446
• Country of Origin: HU
• Category: 2-Way Zone Valve
