Description

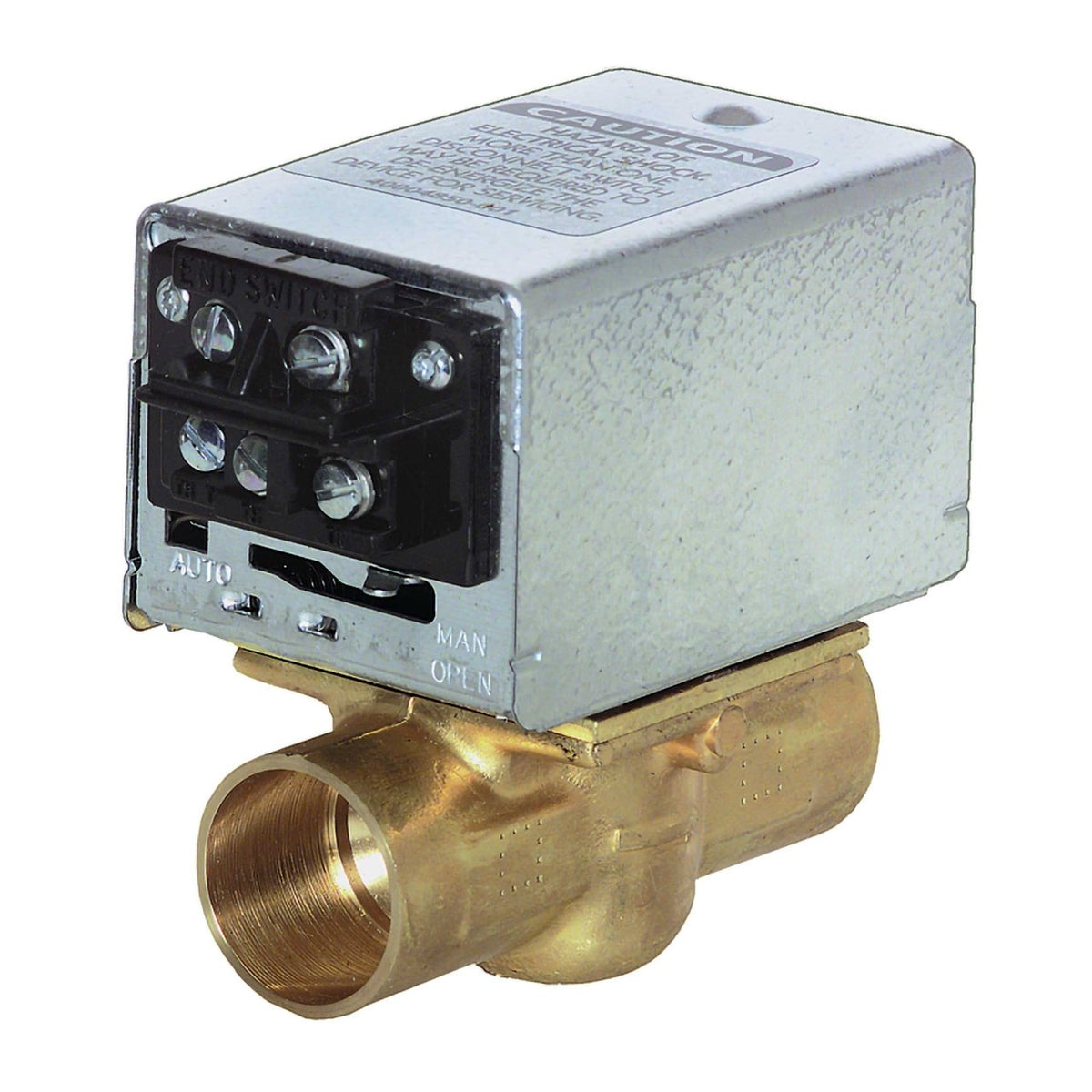

Zone valve with 1 in sweat connection, 8 Cv and 8 psi close-off.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V8043F1101/U
- Power Loss Action: Valve Closed
- Valve Ball Material: Buna-N (NBR) Rubber
- Approvals and Standards: UL Recognized: File MH11826
- Color: Brass, Black
- Includes: End switch enclosure, Manual Opener
- Product Height: 4 in, 102 mm
- Product Length: 2.38 in, 60 mm
- Product Width: 3.69 in, 94 mm
- Warranty: 1 Year
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Connection Type: Sweat
- Differential pressure for close-off (Max): 8 psi, 55 kPa
- Fail-Safe Operation Type: Spring return to close
- Flow Coefficient: 8 Cv; 6.9 Kvs
- Media Temperature (Min): 50 °F, 10 °C
- Media Temperature (Max): 200 °F, 93 °C
- Actuator Control Signal: Two position
- Actuator Opening Time: 15 seconds
- Static Pressure Rating: 125 psi, 862 kPa
- Valve Body Material: Brass
- Valve Body Pattern: Two-way, Straight Through
- Valve Plug Material: Buna-N (NBR) Rubber
- Valve Seat Material: Brass
- Valve Start Position: Closed
- Valve Stem Material: Stainless Steel
- UPC: 085267109796
- Country of Origin: HU
- Category: 2-Way Zone Valve
