Description

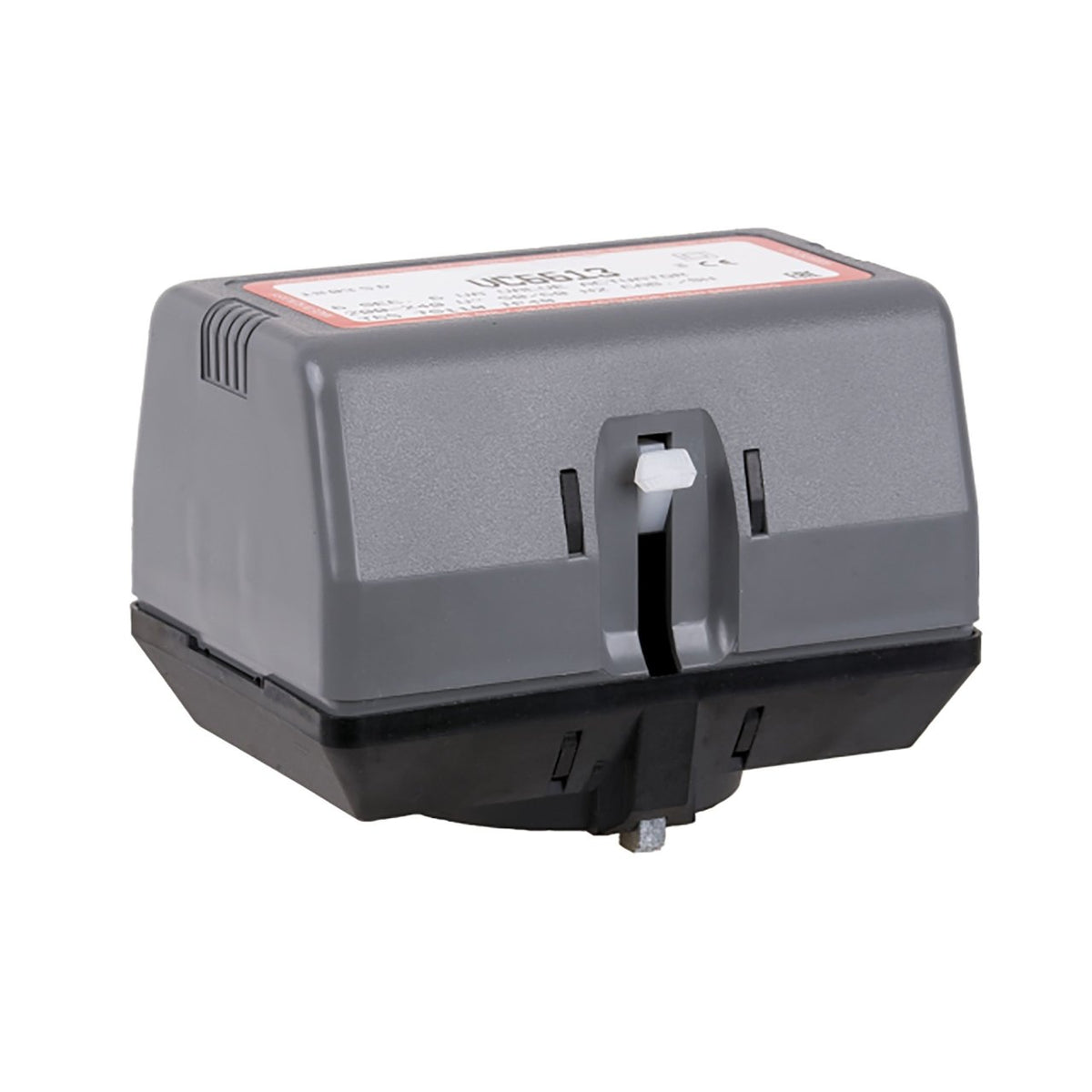

VC series actuator.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VC4013ZZ00/U
- Application: HVAC
- For Use With: VC Series Valve
- Control Signal: SPST
- Warranty: 5 years
- Includes: Valve body
- Media Temperature (Max): 203 °F, 95 °C
- Shipping and Storage Temperature (Min): -40 °F, -40 °C
- Shipping and Storage Temperature (Max): 150 °F, 65 °C
- Fail-Safe Operation Type: Stays in place
- Supply Voltage: 230 V, 50 - 60 Hz
- Power Consumption: 6 VA
- Differential pressure for close-off (Max): 400 kPa
- Product Height: 2.8 in, 70 mm
- Product Weight: 0.73 lb, 0.33 kg
- Product Width: 3.7 in, 94 mm
- UPC: 085267132404
- Country of Origin: HU
- Category: Zone Valve Replacement Heads
