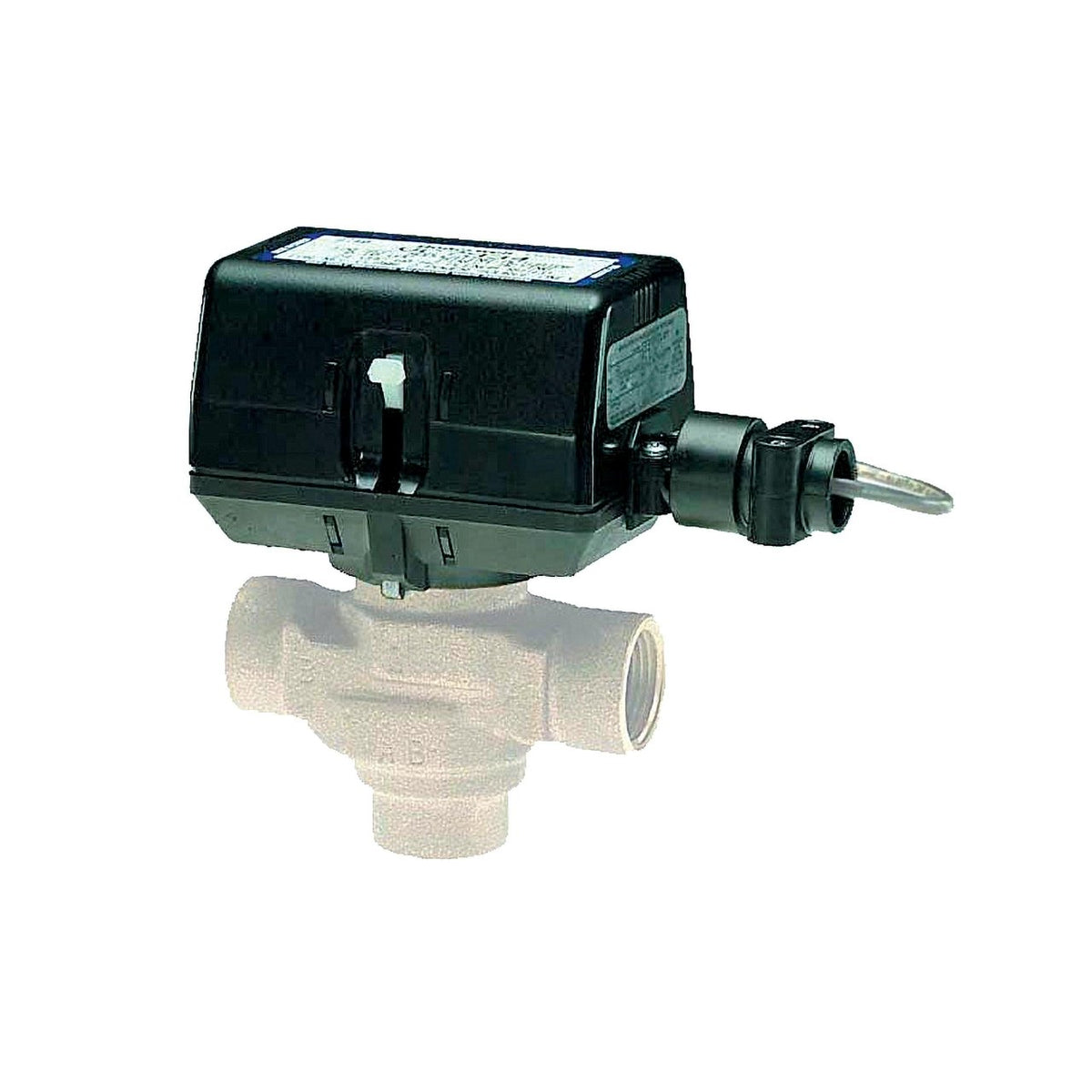

Honeywell Home VC2114ZZ31/U VC Valve Actuator, 24 VAC 50/60 Hz, 3-Wire Cable

VC valve actuator, 24 V 50/60 Hz, with 3-wire cable.

Features

• Use with two-way or three-way valves
• Minimal actuator power consumption
• Quick-connect or one meter cable electrical connections available
• Quick and easy replacement of moving parts
• Actuator head installation does not require draining the system
• On-Off models with six second nominal timing
• Use two-position actuators with 1000 Series 2-way and 6000 Series 3-way VC valve bodies only
• Self-Alignment Shaft Adapter

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VC2114ZZ31/U
• Application: HVAC
• Approvals and Standards: UL Recognized, File# MH11826, CSA Certified: LR1322-367, CE Approval: 89/336/ECC, CE Approval: 73/23/EEC
• For Use With: VC Series Valve
• Compatible With: Use in cold, warm, and hot water applications
• Control Signal: On/Off switch, SPDT
• Warranty: 1 Year
• Includes: Kele label
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 140 °F, 60 °C
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Shipping and Storage Temperature (Max): 150 °F, 65 °C
• Operating Relative Humidity (Min): 5% Non-condensing
• Operating Relative Humidity (Max): 95% Non-condensing
• Fail-Safe Operation Type: Stays in place
• Drive Time: 6 sec
• Supply Voltage: 24 V AC
• Power Supply Frequency: 60 Hz
• Power Consumption: 6 VA
• Actuator Connection: Valve
• Connection Length: 5 ft., 1.5 m
• Connection Type: Plenum-rated cable
• Stroke (Max): VC2114
• Product Height: 2.8 in, 70 mm
• Product Weight: 0.75 lb, 0.34 kg
• Product Width: 3.7 in, 94 mm
• Product Depth: 2.7 in, 68 mm
• Housing Material: Plastic
• UPC: 085267831796
• Country of Origin: HU
• Category: Zone Valve Replacement Heads
