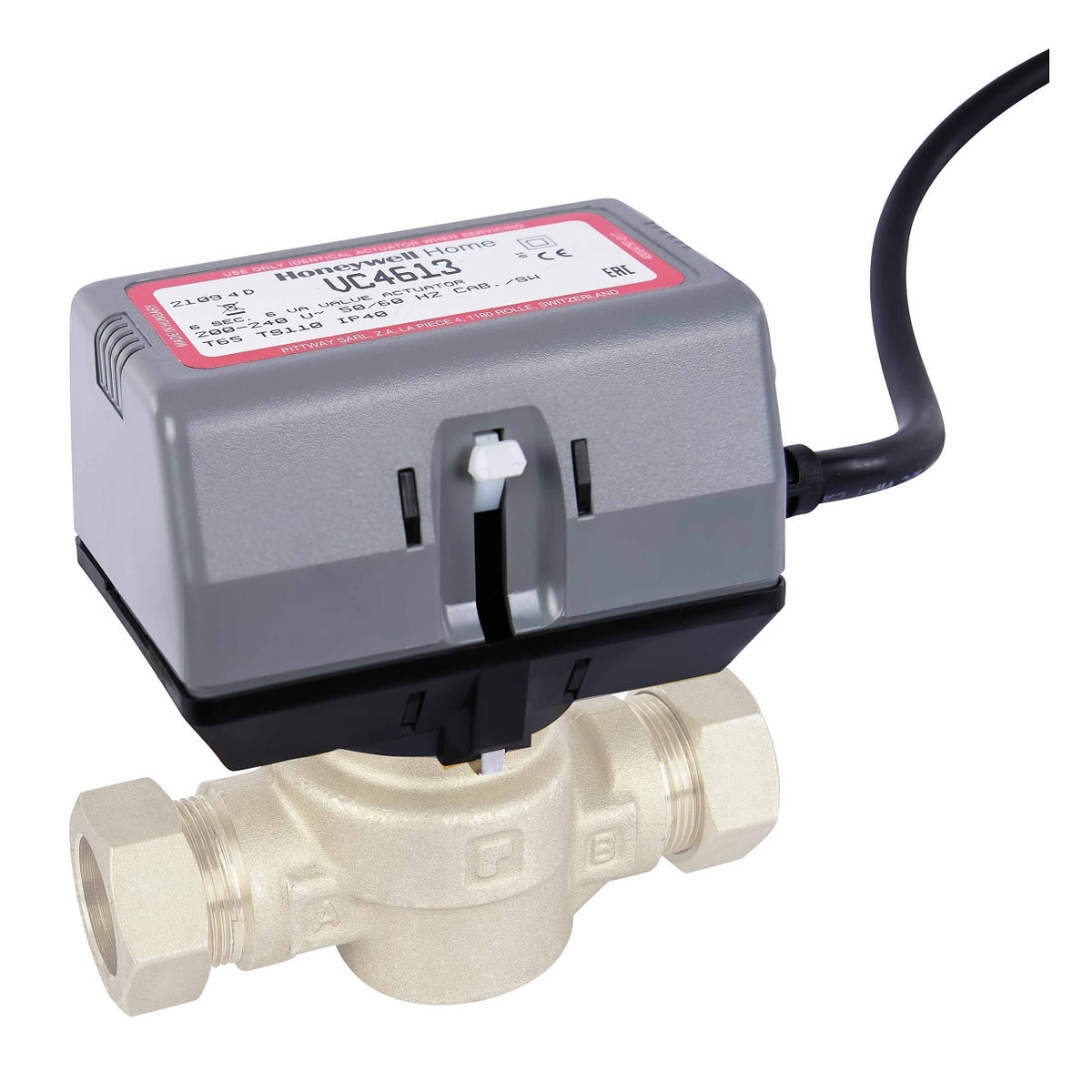

Honeywell Home VC4613ZZ00/E VC Actuator Only, Egg Crate Pack

VC actuator only, in egg crate packaging.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VC4613ZZ00/E
• Application: HVAC
• Approvals and Standards: UL Recognized, File# MH11826, CSA Certified: LR1322-367, 89/336/ECC, 73/23/EEC
• For Use With: VC Series Valve
• Compatible With: Use in cold, warm, and hot water applications
• Control Signal: Two position, SPST
• Warranty: 1 Year
• Includes: Valve body
• Media Temperature (Max): 203 °F, 95 °C
• Mounting Type: Direct Coupled
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Shipping and Storage Temperature (Max): 150 °F, 65 °C
• Operating Relative Humidity (Min): 5 % sans condensation
• Operating Relative Humidity (Max): 95 % sans condensation
• Protection Class: IP40, Double Insulated
• Fail-Safe Operation Type: Stays in place
• Drive Time: 6 sec
• Supply Voltage: 240 V AC
• Power Supply Frequency: 50 Hz, 60 Hz
• Power Consumption: 6 VA
• Differential pressure for close-off (Max): 60 psid, 400 kPa
• Number of Internal Auxiliary Switches: 1
• Actuator Connection: Valve
• Connection Length: 39 in, 1 m
• Connection Type: Cable
• Stroke (Max): 0.4 in, 10 mm
• Product Height: 2.8 in, 70 mm
• Product Weight: 0.84 lb, 0.38 kg
• Product Width: 3.7 in, 94 mm
• Product Depth: 2.7 in, 68 mm
• Housing Material: Plastic
• UPC: 085267132510
• Country of Origin: HU
• Category: Zone Valve Replacement Heads
