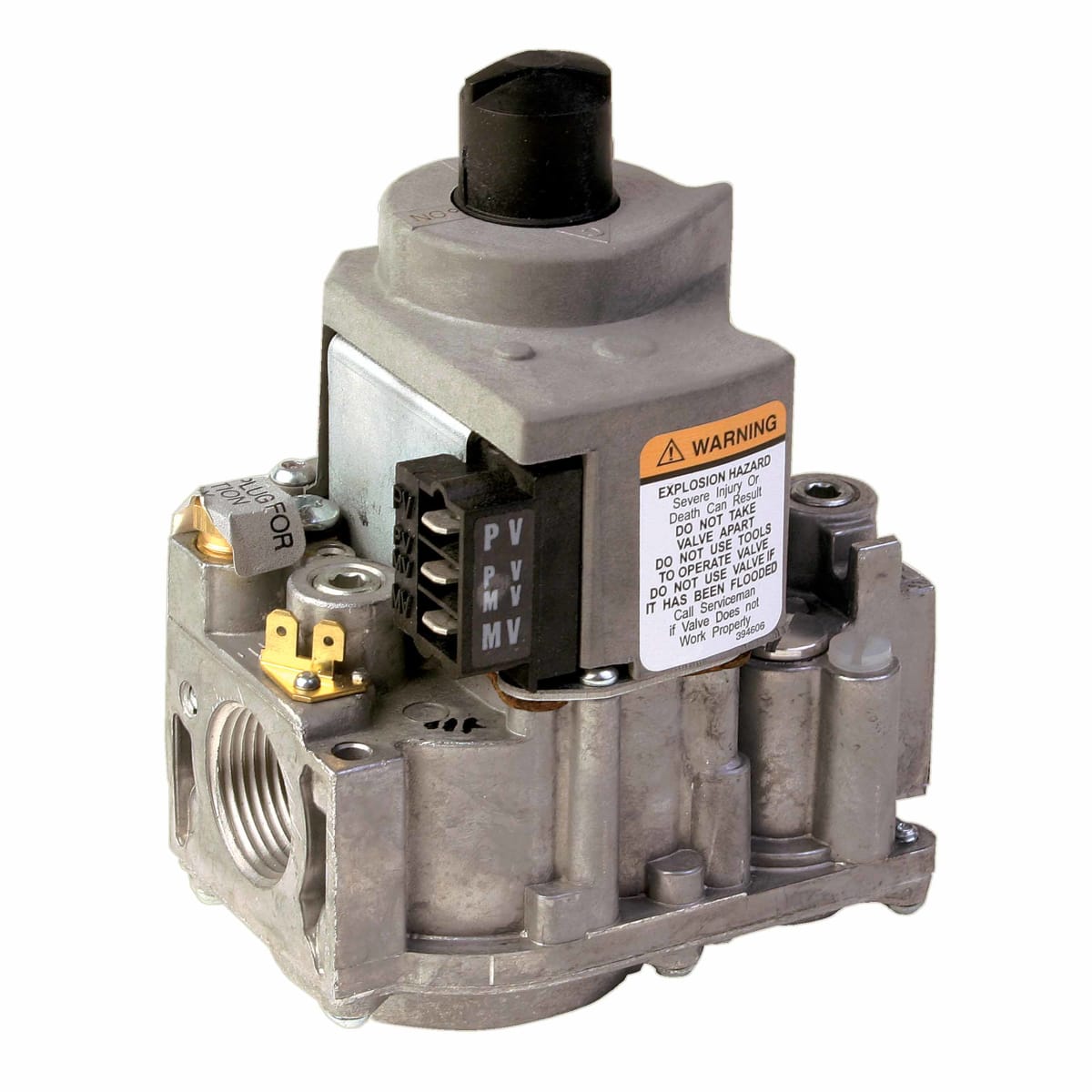

Resideo VR8304M4515/U Intermittent Pilot Gas Valve, 3/4 x 3/4 in, Standard Opening, 24 V
Resideo

Resideo VR8304M4515/U Intermittent Pilot Gas Valve, 3/4 x 3/4 in, Standard Opening, 24 V

Item #
HONE-VR8304M4515/U
Mfr. part #
VR8304M4515/U
UPC
085267114684
$323.40
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout
Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #VR8304M4515/U
UPC085267114684

Reliability You Can Count On These Intermittent Pilot Combination Gas Controls from Resideo have a 3/4 in inlet and 3/4 in. outlet for use in 24 V AC, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh. There are two automatic valves: the solenoid-operated first automatic valve opens on thermostat call for heat, and closes when the call for heat ends. The diaphragm-operated second automatic valve opens under control of a regulator, and closes if the gas or power supply is interrupted. Features include: Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment Compact size Two automatic valves Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted Meet codes requiring dual safety shutoff Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves All adjustments, wiring connections and pilot outlet are accessible from top of control Adjustable regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with ECO connector ON-OFF lighting sequence.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: VR8304M4515/U
  • Application: Single Stage
  • Approvals and Standards: UL Component Recognized MCCZ2.MH5323; CSA International: 112395
  • Color: Black; Gray
  • Compatible With: 24 V AC, gas-fired, standing pilot appliances with capacities from 30 to 415 cfh
  • For Use With: S86F Control Module; S86H Control Module; S860D Control Module; S8600F Control Module; S8600H Control Module; S90A Control Module; S90B Control Module
  • Pressure Rating: 1/2 psi; 3.5 kPa
  • Series: VR8304
  • Warranty: 1 Year
  • Works With Resideo Applications: No
  • UPC: 085267114684
  • Category: Gas Valves

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$323.40
Backorder
