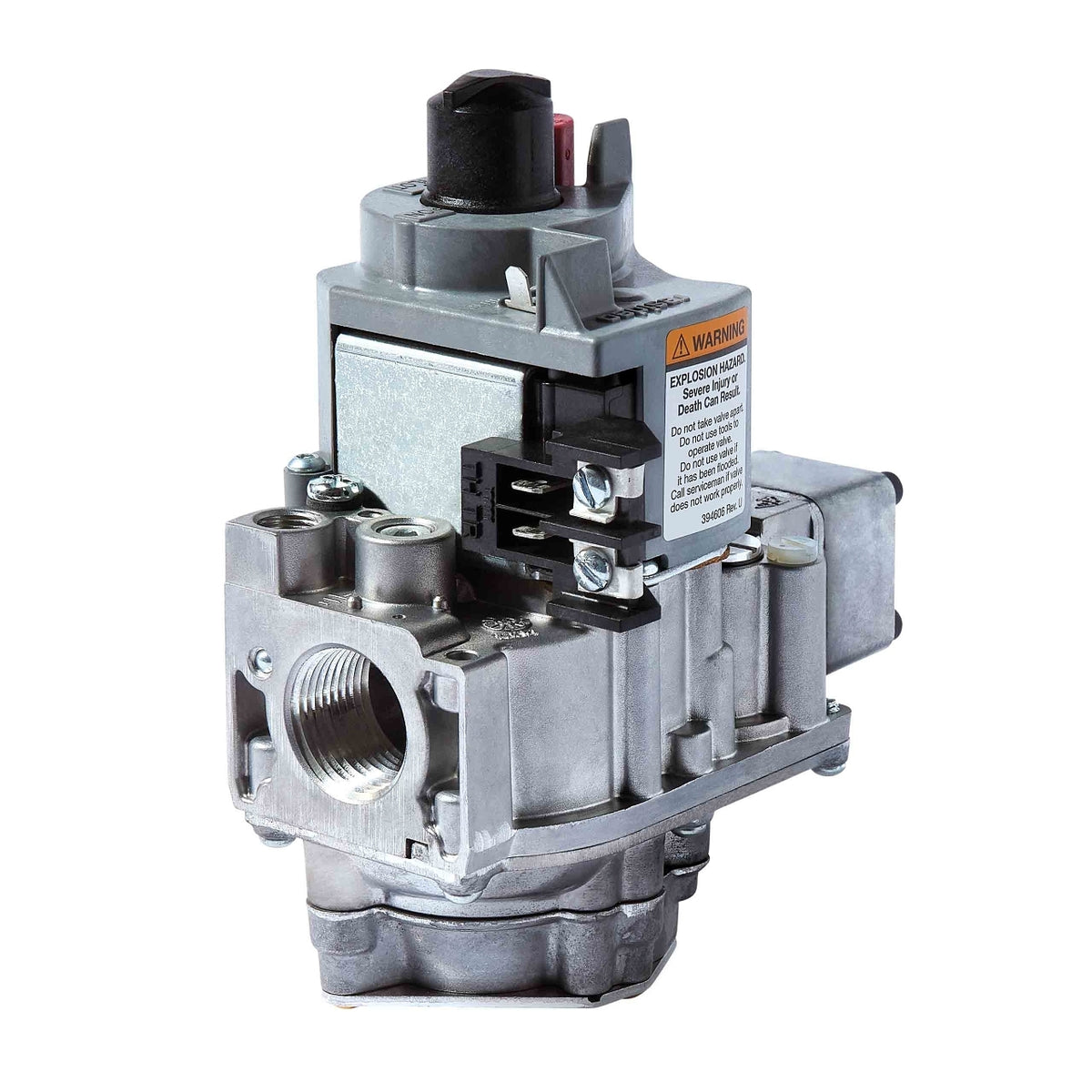

Resideo VR8300A4508/U Standing Pilot Gas Valve, Standard Opening, 3/4 in x 3/4 in, 3.5 in WC

Item #: HONE-VR8300A4508/U
Mfr. part #: VR8300A4508/U
UPC: 085267113847

$190.61

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 2.3 lb
Box size: 7 × 5.95 × 3.6 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	VR8300A4508/U
UPC	085267113847

Standing pilot gas valve with standard opening and 3/4 in x 3/4 in connections, supplied with a conversion kit and two 3/4 in x 1/2 in reducer bushings.

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VR8300A4508/U
Application: Single-Stage Standard Opening Valve for Standard Pilot
Ignition Type: Standing Pilot
Type of Fuel: Natural Gas
Regulator: Standard
Capacity (Max): 300,000 BTU/h Natural Gas
Capacity (Min): 30,000 BTU/h Natural Gas
Operating Voltage: 24 V AC
Inlet Connection Size: 3/4 in
Outlet Connection Size: 3/4 in
Regulation Type: Standard Opening
Pressure Rating: 1/2 psi, 3.5 kPa
Includes: Natural to LP Conversion Kit, Two 3/4 in x 1/2 in Reducer Bushings
Valve Body Pattern: Straight Through with Flange
Ambient Operating Temperature (Max): 175 °F, 79 °C
Ambient Operating Temperature (Min): 0 °F, -18 °C
Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency: 60 Hz
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
Product Height: 5.38 in
Product Length: 2.69 in
Product Width: 4.06 in
UPC: 085267113847
Country of Origin: MX
Category: Gas Valves
