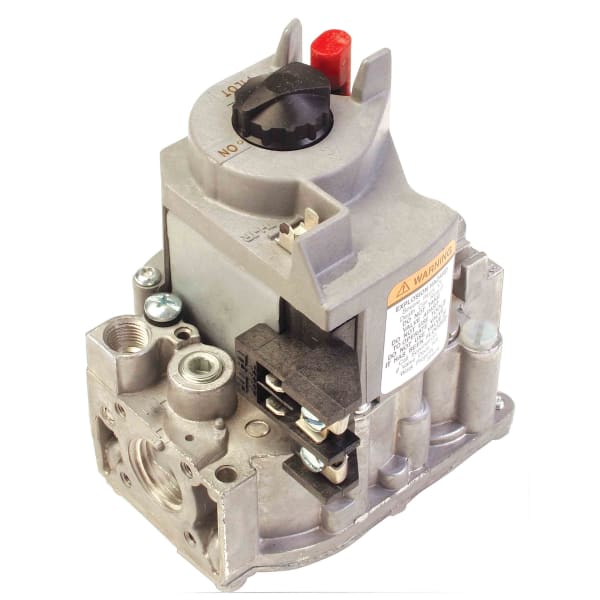

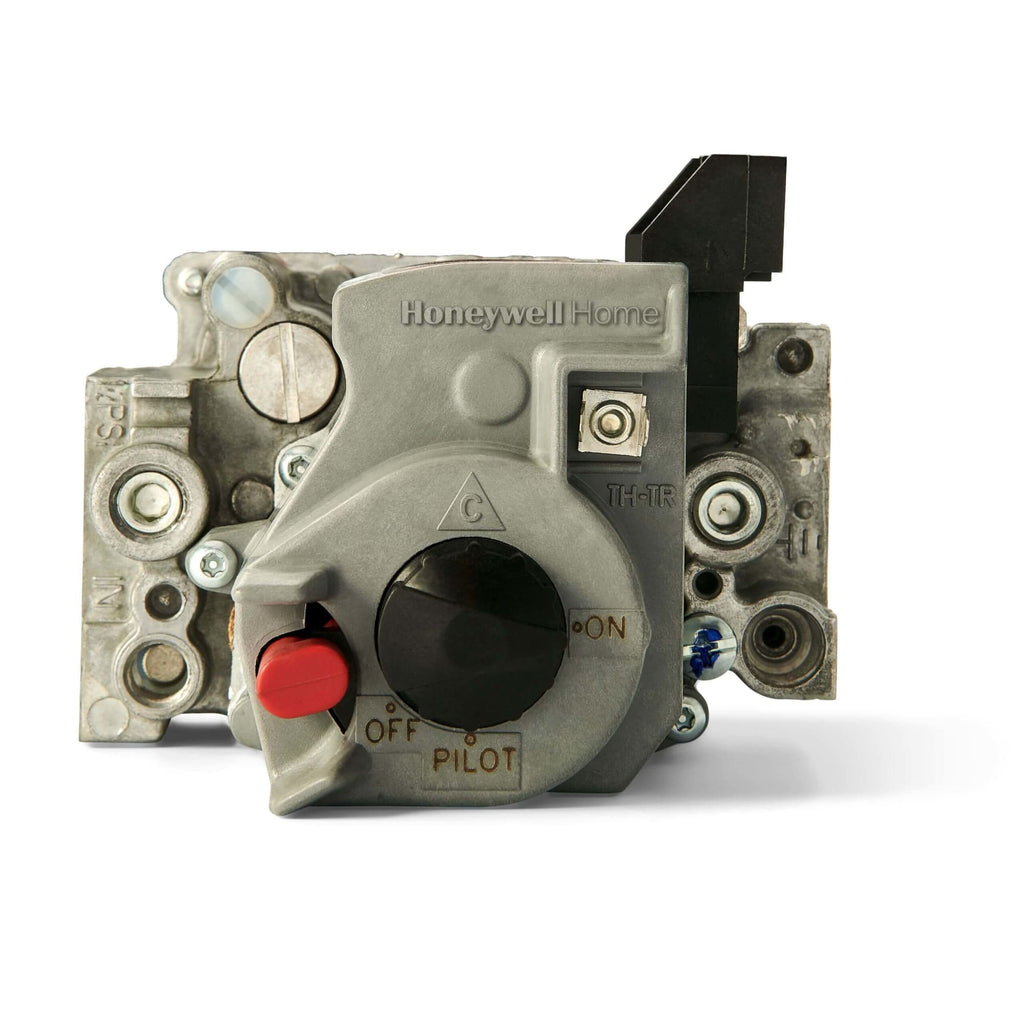

Name: Resideo VR8200H1251/U Single Stage, 24 Vac, Slow Opening, Standing Pilot Gas Valve. 1/2" x 1/2". Set 3.5" WC
Brand: Resideo
SKU: HONE-VR8200H1251/U
Price: 191.77 USD
Availability: InStock

Resideo Single Stage, 24 Vac, Slow Opening, Standing Pilot Gas Valve. 1/2" x 1/2". Set 3.5" WC

Roll over image to zoom in Click on image to zoom

Inlet/Outlet Size	1/2 in. x 1/2 in.
Body Pattern	Straight-through
Capacity (kBtuh)	At 1 in. wc p.d.-- 130,000 BTUh: 20,000 BTUh minimum: 200,000 BTUh maximum Natural Gas
Opening Characteristics	Slow Opening
Voltage	24 Vac
Frequency	60 Hz
Electrical Connections	1/4 in. quick-connect male terminals
Pressure Rating	1/2 psi
Regulator Setpoint	3.5 in. WC
Pressure Tapping	1/8 in. NPT with plug
Operating Temperature	0 F to 175 F
Type of Fuel	Natural (LP with included conversion kit)
Ignition Type	Standing Pilot
Mounting	0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Application	Single Stage
Includes	One 3/4" straight flange; One 1/2" x 3/8" reducer bushings; Natural to LP Conversion Kit
Dimensions	5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
UL	UL Component Recognized MCCZ2.MH5323
CSA	CSA International: 112395
Pilot Gas Outlet	Compression fitting for 1/4 in. OD tubing
Approvals, Australian Gas Association	4752
Pressure Regulator	Slow

The VR8200H1251 is a single-stage gas control valve from Resideo (Honeywell Home) for standing pilot appliances, 24 Vac coil.

The gas valve is the component that admits fuel to the burner and shuts it off. It carries the main shutoff, the pressure regulator that holds manifold pressure steady as supply pressure varies, and the safety interlock that keeps gas off until the control system has proved it is safe to light.

Standing pilot means a small flame burns continuously and lights the main burner on a call for heat. The thermocouple or thermopile in that flame generates the millivolts that hold the pilot valve open — which is why a standing pilot appliance shuts itself off safely if the pilot goes out, with no electronics involved at all.

The valve is slow opening. A slow-opening valve ramps the burner up over a couple of seconds to soften the light-off; a standard-opening valve goes to full rate at once. Match the opening rate of the valve coming out — this is one of the differences that does not show on the outside of the body.

Gas appliance safety. A gas valve must match the appliance it is fitted to — ignition system, capacity, inlet pressure and gas type. Replacement is work for a licensed gas technician, and the appliance manufacturer's parts list is what decides the correct valve, not the physical fit of the threads. If the replacement does not match, the appliance can fail to light, fail to prove flame, or overfire.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VR8200H1251/U
Type: Gas control valve
Ignition system: Standing pilot
Staging: Single-stage
Coil voltage: 24 Vac
Opening rate: Slow opening
UPC: 085267112482
Category: Gas Valves

Full Specifications

Application	Single-Stage Slow Opening Valve for Standing Pilot
Ignition Type	Standing Pilot
Type of Fuel	Natural Gas
Regulator	Slow
Capacity (Max)	200,000 BTU/h Natural Gas
Capacity (Min)	20,000 BTU/h Natural Gas
Operating Voltage	24 V AC
Inlet Connection Size	1/2 in
Outlet Connection Size	1/2 in
Regulation Type	Slow Opening
Pressure Rating	1/2 psi
Includes	One 3/4 in straight flange, One 1/2 in x 3/8 in reducer bushings, Natural to LP Conversion Kit
Valve Body Pattern	Straight Through
Ambient Operating Temperature (Max)	175 °F, 79 °C
Ambient Operating Temperature (Min)	0 °F, -18 °C
Mounting Type	0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency	60 Hz
Pilot Gas Outlet	Compression fitting for 1/4 in. OD tubing
Product Height	5.38 in
Product Length	2.69 in
Product Width	4.06 in
