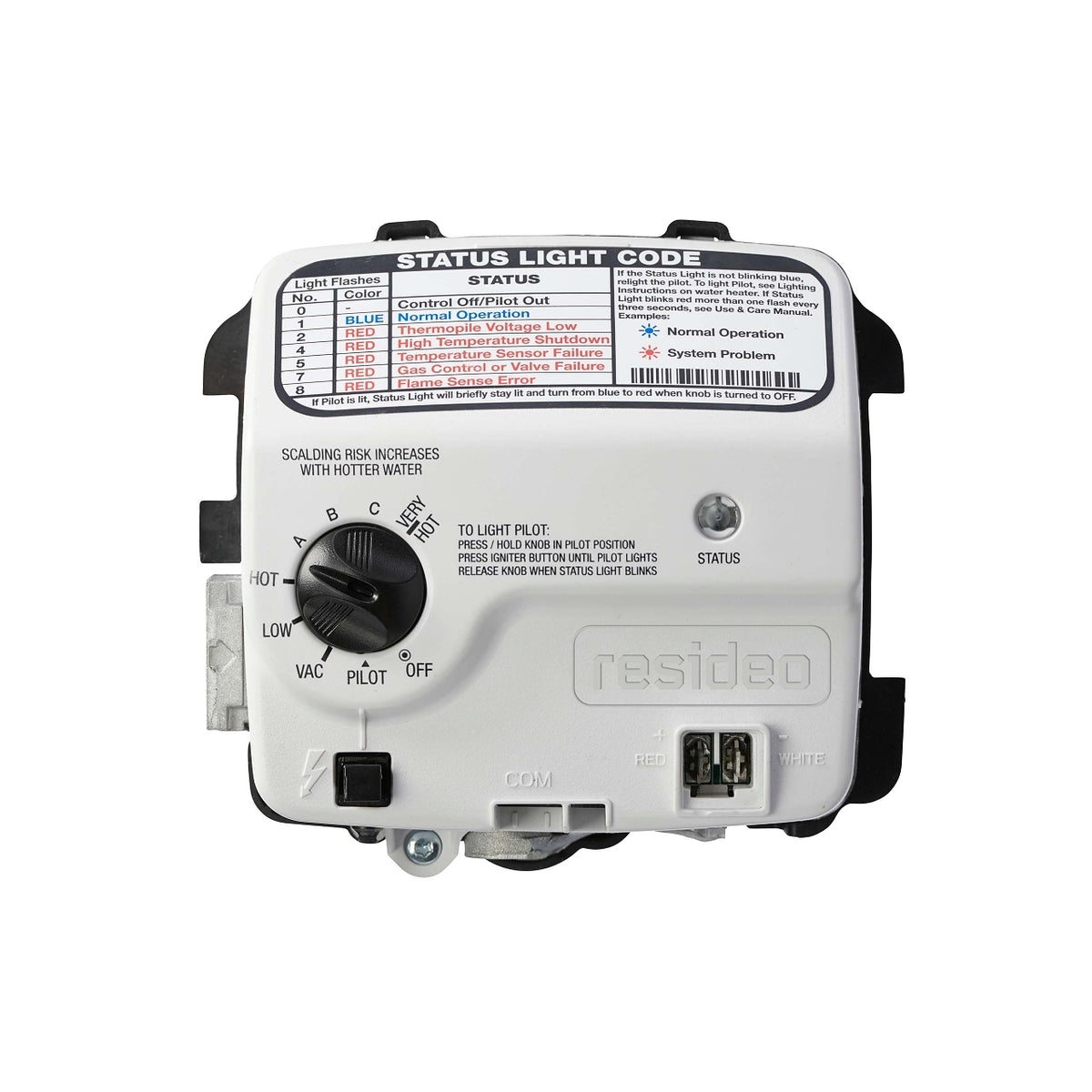

Resideo WT8840C1500/U Water Heater Gas Valve, Trade Replacement for Rheem Atmospheric, 2 in Well

Trade replacement water heater gas valve for Rheem atmospheric valves, with a 2 in well and 4 in WC setting.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: WT8840C1500/U
• Application: Water Heater Control
• Approvals and Standards: CSA Certified: ANSI Z21.20, ANSI Z21.23, ANSI Z21.78, ANSI Z21.87, CAN/CSA-C22.2 No. 199-M89, CAN1-6.6-M78, CSA 4.6, CSA 6.20
• Compatible With: Standing Pilots
• Capacity (Min): 30 Btuh
• Capacity (Max): 75 Btuh
• Ignition Type: Standing Pilot with Peizo
• Type of Fuel: Natural Gas
• Sensor Type: NTC thermistor
• Body Pattern: 90 degree
• Inlet Pressure (Max): 4.0 in w.c.
• Control Input Voltage (Min): 850 mV dc, open circuit
• Control Input Voltage (Max): 350 mV dc, open circuit
• Mounting Type: Mount in the upright position
• Inlet Connection Size: 1/2 in
• Inlet Connection Type: NPT
• Outlet Connection Size: 1/2 in
• Outlet Connection Type: Inverted Flare
• Set point Temperature (Min): 55 °F, 13 °C
• Set point Temperature (Max): 155 °F, 68 °C
• TCO Cutout Temperature: 189 °F, 87 °C
• Shipping and Storage Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 66 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Shipping and Storage Temperature (Max): 150 °F, 66 °C
• Operating Relative Humidity (Max): 95% Non-condensing at 104 °F, 95% Non-condensing at 40 °C
• Warranty: 1 Year
• Color: Premier White®
• Product Weight: 2.17 lb
• UPC: 194159003507
• Country of Origin: MX
• Category: Gas Valves
