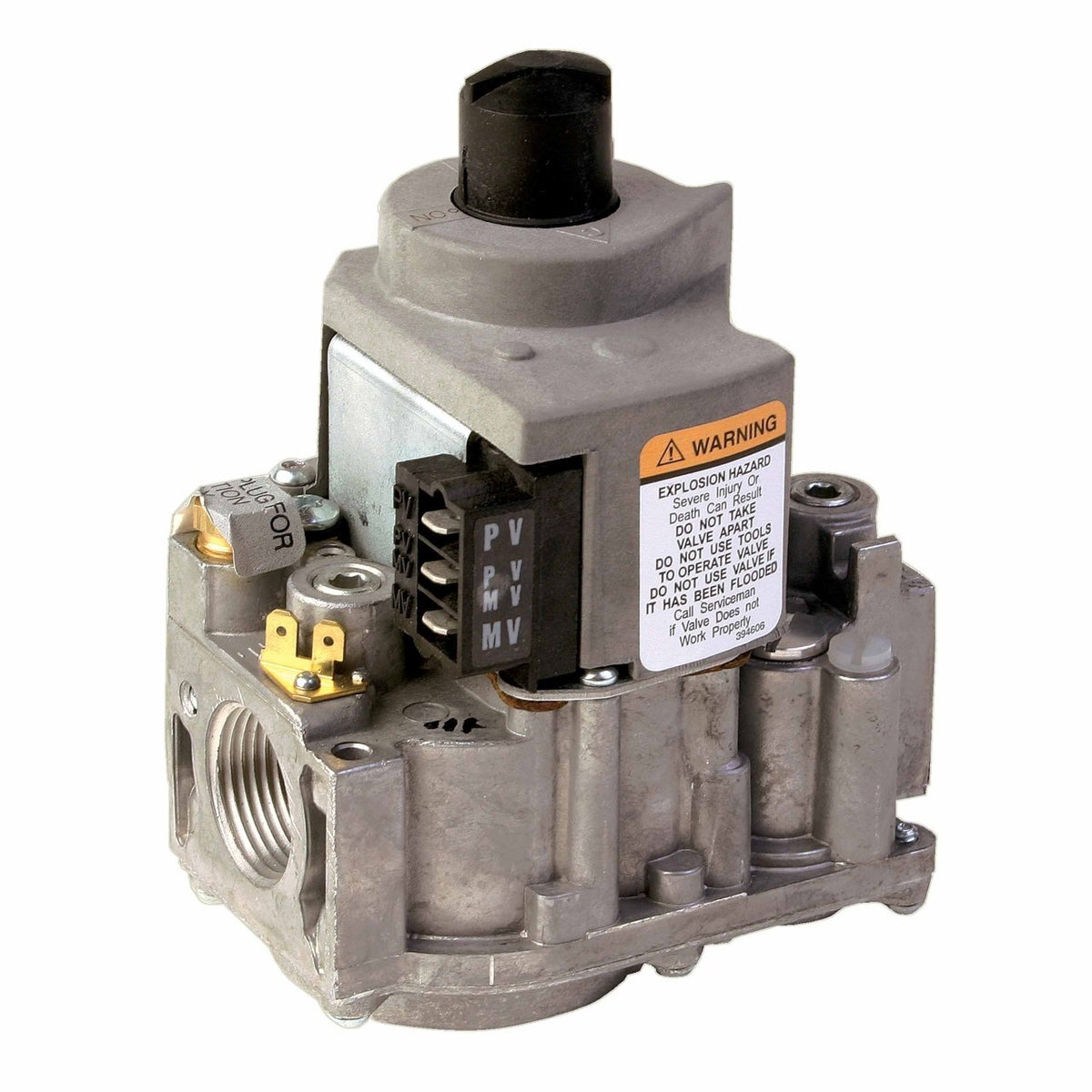

Resideo VR8304Q4511/U Intermittent Pilot Two Stage Gas Valve, Standard Opening, 3/4 in x 3/4 in, 1.7/3.5 in WC

Item #: HONE-VR8304Q4511/U
Mfr. part #: VR8304Q4511/U
UPC: 085267792752

$360.36

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 2.4 lb
Box size: 6.5 × 6.5 × 3.5 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	VR8304Q4511/U
UPC	085267792752

Two stage intermittent pilot gas valve with standard opening for 50/60 Hz, 3/4 in x 3/4 in connections, supplied with a conversion kit and two 3/4 in x 1/2 in reducer bushings.

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VR8304Q4511/U
Application: Two-Stage Standard Opening Valve for Intermittent Pilot
Ignition Type: Intermittent Pilot
Type of Fuel: Natural Gas
Capacity (Min): 30,000 BTU/h
Operating Voltage: 24 V AC
Inlet Connection Size: 3/4 in
Outlet Connection Size: 3/4 in
Regulation Type: Standard Opening
Pressure Rating: 1/2 psi, 3.5 kPa
Operating Pressure (Max): 1/2 psi
For Use With: S86F Control Module, S86H Control Module, S860D Control Module, S8600F Control Module, S8600H Control Module, S90A Control Module, S90B Control Module
Includes: Natural to LP Conversion Kit, Two 3/4 in x 1/2 in Reducer Bushings
Valve Body Pattern: Straight Through
Ambient Operating Temperature (Max): 175 °F, 79 °C
Ambient Operating Temperature (Min): -40 °F, -40 °C
Approvals and Standards: UL Component Recognized, CSA International: 112395
Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency: 60 Hz
Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
Product Height: 5.38 in, 135 mm
Product Width: 2.69 in, 69 mm
UPC: 085267792752
Country of Origin: MX
Category: Gas Valves
