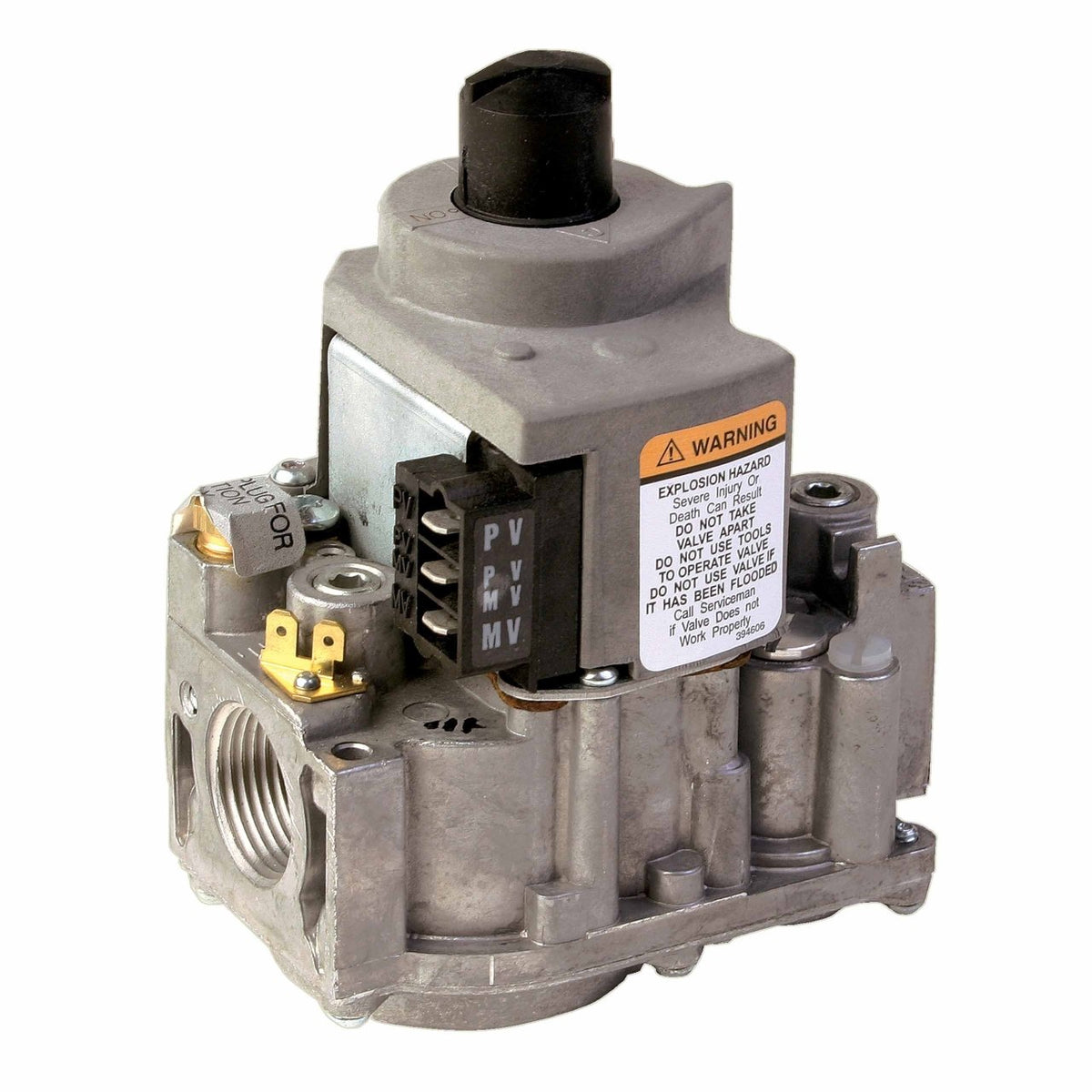

Resideo VR8304H4503/U Intermittent Pilot Gas Valve, Slow Opening, 3/4 in x 3/4 in, 3.5 in WC
Resideo

Resideo VR8304H4503/U Intermittent Pilot Gas Valve, Slow Opening, 3/4 in x 3/4 in, 3.5 in WC

Item #
HONE-VR8304H4503/U
Mfr. part #
VR8304H4503/U
UPC
085267114431
$294.63
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 1.8 lb
  • Box size: 5.9 × 4.8 × 3.45 in
Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #VR8304H4503/U
UPC085267114431

Intermittent pilot gas valve with slow opening, 3/4 in x 3/4 in connections and 3.5 in WC regulator setting, supplied with a conversion kit.

Features

  • ON-OFF lighting sequence

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: VR8304H4503/U
  • Application: Single-Stage Slow Opening Valve for Interittent Pilot
  • Ignition Type: Intermittent Pilot
  • Type of Fuel: Natural Gas, LP with included conversion kit
  • Regulator: Slow
  • Capacity (Max): 415,000 BTU/h
  • Capacity (Min): 30,000 BTU/h
  • Operating Voltage: 24 V AC
  • Inlet Connection Size: 3/4 in
  • Outlet Connection Size: 3/4 in
  • Regulation Type: Slow Opening
  • Pressure Rating: 1/2 psi, 3.5 kPa
  • Operating Pressure (Max): 1/2 psi
  • For Use With: S86F Control Module, S86H Control Module, S860D Control Module, S8600F Control Module, S8600H Control Module, S8610 Control Module, S90A Control Module, S90B Control Module
  • Includes: Natural to LP gas conversion kit
  • Valve Body Pattern: Straight Through
  • Ambient Operating Temperature (Max): 175 °F, 79 °C
  • Ambient Operating Temperature (Min): 0 °F, -18 °C
  • Approvals and Standards: UL Component Recognized: MCCZ2.MH5323, CSA International: 112395
  • Color: Gray
  • Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
  • Operating Frequency: 60 Hz
  • Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
  • Product Height: 5.38 in, 135 mm
  • Product Width: 4.06 in, 104 mm
  • UPC: 085267114431
  • Country of Origin: MX
  • Category: Gas Valves
