Description

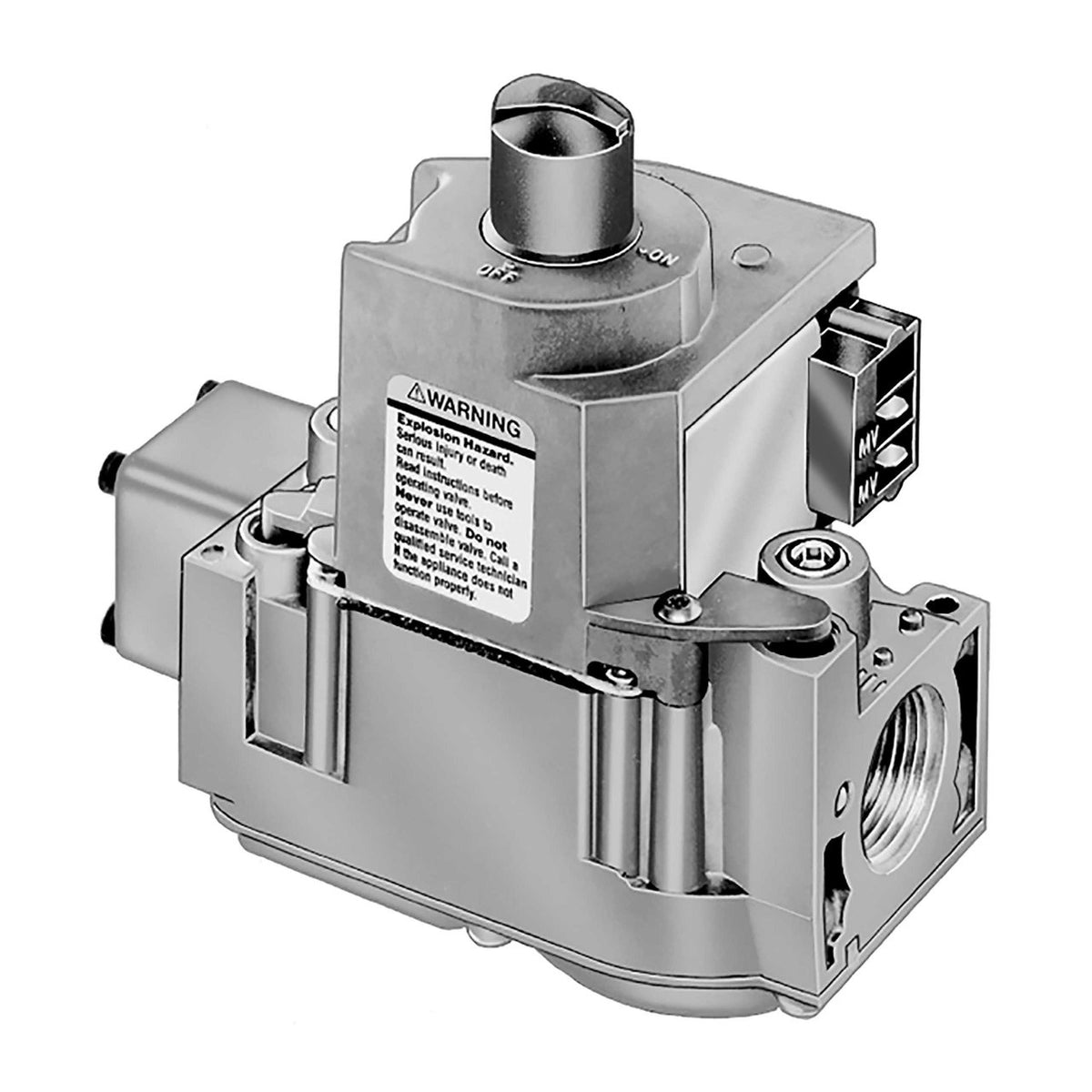

Direct ignition gas valve with step opening and 3/4 in x 3/4 in connections, regulator set at 3.5 in WC full rate and 0.9 in step rate.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8305P4279/U
- Application: Single-Stage Step Opening for Direct Burner Ignition
- Ignition Type: Direct Burner Ignition
- Type of Fuel: Natural Gas
- Regulator: Step
- Capacity (Max): 415,000 BTU/h
- Capacity (Min): 30,000 BTU/h
- Operating Voltage: 24 V AC
- Inlet Connection Size: 3/4 in
- Outlet Connection Size: 3/4 in
- Regulation Type: Step Opening
- Pressure Rating: 1/2 psi, 3.5 kPa
- Operating Pressure (Max): 1/2 psi
- For Use With: S89C, S89E, S89F, S87 Series 5 and later
- Includes: VR8305 setup for Natural Gas includes a 393691 LP Conversion Kit, Kit for Conversion from LP to Natural Gas is available for standard-opening and slow opening models
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): -40 °F, -40 °C
- Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, American Gas Association IAS: AGA Design Certified: File No. L2025007, Canadian Gas Association: CGA Design Certified: File No. L2025007
- Color: Black, Gray
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Product Height: 5.38 in, 135 mm
- Product Width: 4.06 in, 104 mm
- UPC: 085267137782
- Country of Origin: MX
- Category: Gas Valves
