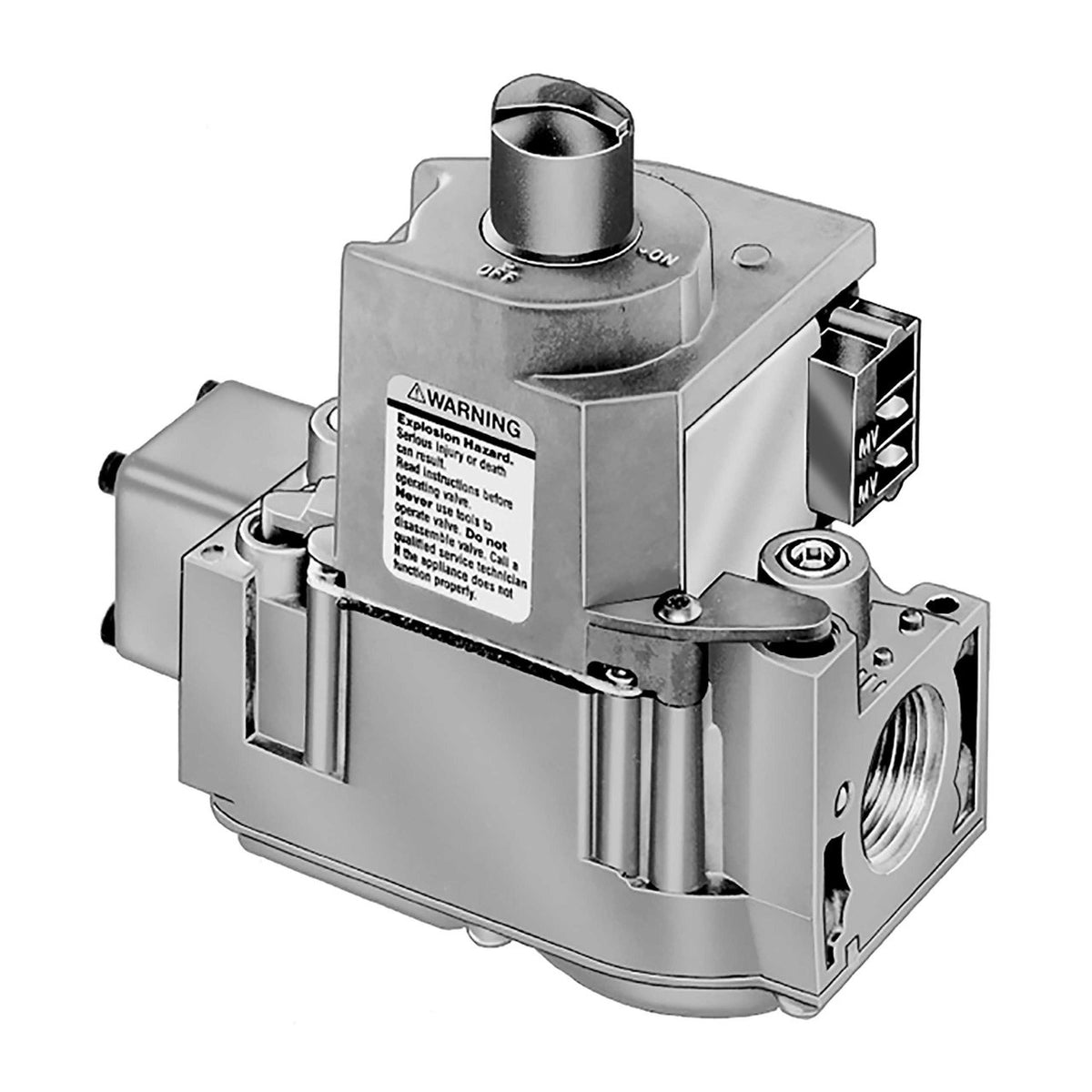

Resideo VR8305Q4153T/U Direct Ignition Two Stage Gas Valve, Standard Opening, 3/4 in x 3/4 in, 1.6/3.7 in WC
Resideo

Resideo VR8305Q4153T/U Direct Ignition Two Stage Gas Valve, Standard Opening, 3/4 in x 3/4 in, 1.6/3.7 in WC

Item #
HONE-VR8305Q4153T/U
Mfr. part #
VR8305Q4153T/U
UPC
085267687850
$215.63
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 1.5 lb
  • Box size: 6.55 × 5.5 × 3.65 in
Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #VR8305Q4153T/U
UPC085267687850

Two stage direct ignition gas valve with standard opening, 3/4 in x 3/4 in connections and 1.6/3.7 in WC settings.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: VR8305Q4153T/U
  • Application: Two-Stage Standard Opening Valve for Direct Burner Ignition
  • Ignition Type: Direct Burner Ignition
  • Type of Fuel: Natural Gas
  • Capacity (Min): 30,000 BTU/h
  • Operating Voltage: 24 V AC
  • Inlet Connection Size: 3/4 in
  • Outlet Connection Size: 3/4 in
  • Regulation Type: Standard Opening
  • Pressure Rating: 1/2 psi, 3.5 kPa
  • For Use With: S89C, S89E, S89F, S87 Series 5 and later
  • Includes: 3/4 in to 1/2 in Reducer Bushings, 396021 LP Conversion Kit
  • Valve Body Pattern: Straight Through
  • Ambient Operating Temperature (Max): 175 °F, 79 °C
  • Ambient Operating Temperature (Min): -40 °F, -40 °C
  • Approvals and Standards: UL Component Recognized: MH8191, CSA International: 112395, American Gas Association design certificate:UP-70-69A, Canadian Gas Association design certificate: UP-70-69A, Australian Gas Association certified:4717, DELTA C: UP-70-69A
  • Color: Gray, Black
  • Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
  • Operating Frequency: 50 Hz, 60 Hz
  • Product Height: 5.38 in, 135 mm
  • Product Weight: 0.39 lb
  • Product Width: 5.06 in, 129 mm
  • UPC: 085267687850
  • Country of Origin: MX
  • Category: Gas Valves

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$215.63
Backorder
