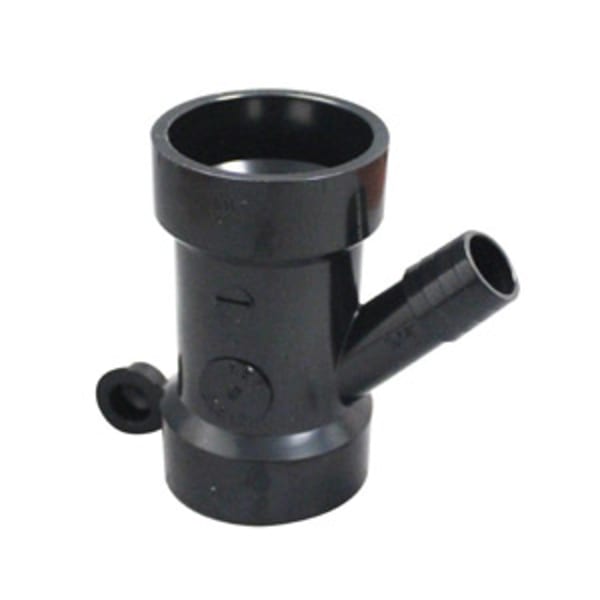

Canplas 112321 1-1/2" x 1-1/2" x 5/8" ABS Appliance WYE

The Canplas 112321 is a 1-1/2" x 1-1/2" x 5/8" ABS appliance wye. It goes into a 1-1/2" ABS drain line and gives a 5/8" barbed branch for an appliance drain hose, such as a dishwasher or other appliance discharge hose.

Key features

• Two 1-1/2" hub ends for 1-1/2" ABS DWV pipe
• 5/8" barbed side outlet that takes a push-on drain hose (secure it with a hose clamp)
• Wye branch enters at an angle, in the direction of flow

Specifications

• Brand: Canplas
• Manufacturer part number: 112321
• Size: 1-1/2" x 1-1/2" x 5/8"
• Type: Appliance wye
• Connections: Hub x hub x barb
• Material: ABS

ABS joins with ABS solvent cement. Local codes set where an appliance discharge may connect to the drain and whether an air gap or high loop is required.
