| Pipe Size | 1/2 in. |
| Connection Type | Includes sweat and threaded connections |
| Valve Type | Fast Fill |
| Close-off Pressure | 14.5 psi minimum (inlet to outlet) |
| Fluid Temperature | Maximum 180 F |
| Ambient Temperature | 33 F to 140 F |
| Controlled Fluid | Water |
| Materials (Body) | Brass |
| Application | Combination (re)filling valve that contains an integrated pressure reducing valve |
| Includes | Boiler fill shut off valve, double check backflow preventer with air vent and discharge connection, valve cartridge, integrated 200 micron strainer, a check valve, pressure reducing valve with valve insert, adjustment spring, and pressure gauge |
| Maximum Safe Operating Pressure (psi) | 150 psi |
| Weight (lb) | 4 lb |
| Weight (kg) | 1.8 kg |
| Approvals, Others | ASSE 1081 |
| Pressure Range (psi) | 10 to 58 psi |
| Minimum flow rate (gpm) | 16 gpm @ 22 psi pressure fall-off |
| Minimum flow rate (lpm) | 60 l/min @ 1.5 bar pressure fall-off |
| Materials (Diaphragm) | Fiber-reinforced EPDM |
| Materials (Interior parts) | Stainless steel fine filter mesh filter |
| Outlet Pressure Adjustment Range (psi) | Factory set at 15 psi (1 bar) |
| Max. Inlet Pressure Rating (psi) | 150 psi (10.3 bar) |
| Approvals, ASSE | 1081 Listed |
Description

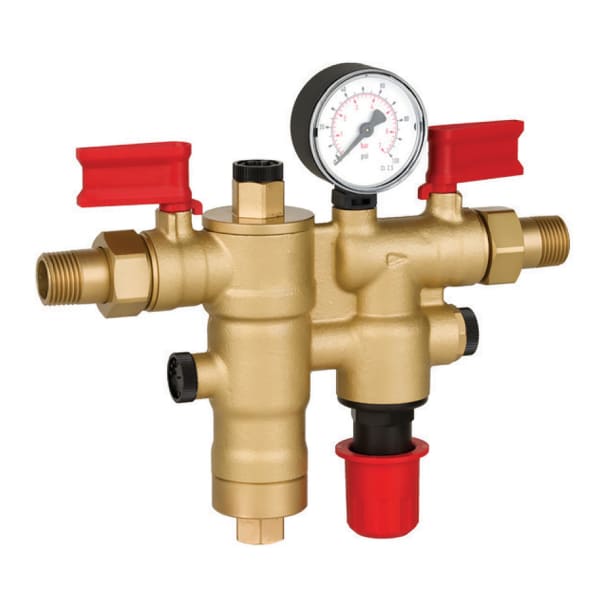

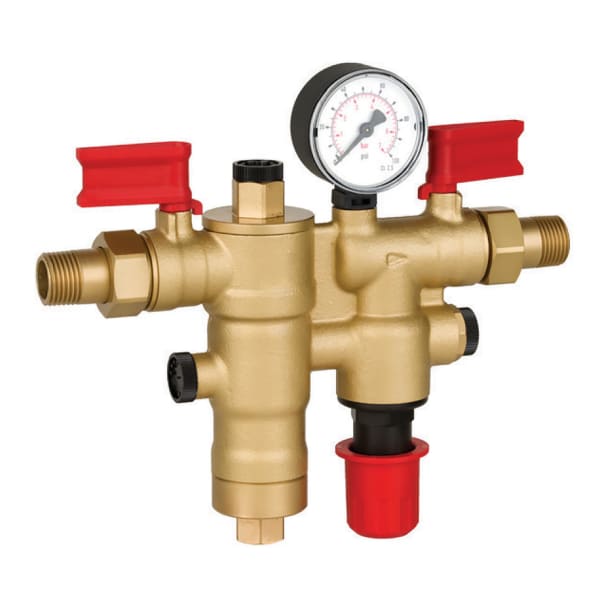

The NK300S-100 is a combination boiler feed valve from Resideo (Honeywell Home), 1/2 in, sweat and threaded connections.
Filling a boiler needs four things in the same line: a shutoff, a backflow preventer so system water can never reach the potable supply, a pressure reducing valve so the fill stops at system pressure instead of at street pressure, and a strainer. A combination valve is all of it in one body, which is fewer joints to make and fewer joints to leak.
The backflow preventer is the part that is not optional. Boiler water is treated water sitting against steel; the code separation between it and the drinking supply is the whole reason this assembly exists in this form.
Fast fill means it can be opened wide to charge a dry system quickly and then returned to regulating, instead of taking an afternoon to fill through a reducing valve at its setpoint.
What is in the body: boiler fill shut off valve, double check backflow preventer with air vent and discharge connection, valve cartridge, integrated 200 micron strainer, a check valve, pressure reducing valve with valve insert, adjustment spring, and pressure gauge.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: NK300S-100
- Type: Combination boiler feed valve
- Pipe size: 1/2 in
- Connection: Includes sweat and threaded connections
- Valve type: Fast Fill
- Close-off pressure: 14.5 psi minimum (inlet to outlet)
- Maximum fluid temperature: 180 F
- Body material: Brass
- Maximum pressure: 150 psi
- Includes: Boiler fill shut off valve, double check backflow preventer with air vent and discharge connection, valve cartridge, integrated 200 micron strainer, a check valve, pressure reducing valve with valve insert, adjustment spring, and pressure gauge
- UPC: 085267561389
- Shipping weight: 3.96 lb
- Category: Boiler Fill Valves
