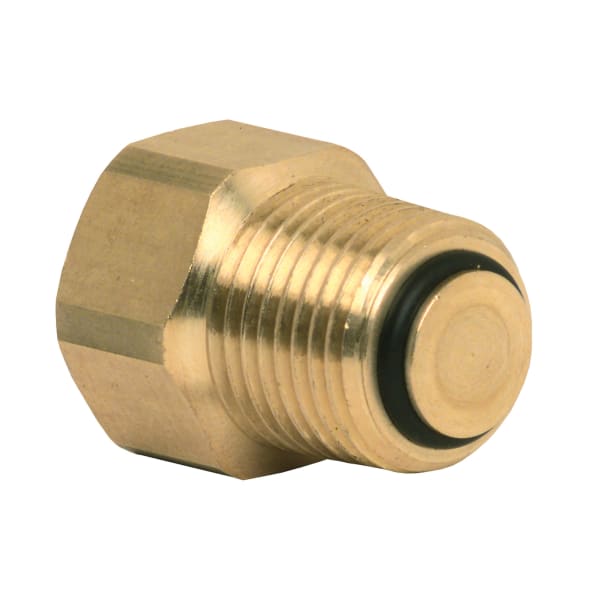

Name: Resideo SCV-050/U Service Check Valve
Brand: Resideo
SKU: HONE-SCV-050/U
Price: 25.51 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Connection Type	Inlet FNPT, Outlet MNPT
Operating Temperature	240 F Maximum
Maximum Safe Operating Pressure (psi)	100 psi
Connection Size (in.)	1/2 in.

The SCV-050 is a service check valve from Resideo (Honeywell Home), 1/2 in.

A service check valve sits between the fill assembly and the boiler and lets water go one way. That keeps boiler water — which carries whatever inhibitor and whatever sediment the system has picked up — from backing into the fill line when system pressure exceeds supply pressure.

It also lets the fill assembly be isolated and serviced without draining the system back through it.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: SCV-050/U
Type: Service check valve
Connection: Inlet FNPT, Outlet MNPT
Connection size: 1/2 in
Maximum temperature: 240 F
Maximum pressure: 100 psi
UPC: 085267298957
Shipping weight: 0.2 lb
Category: Boiler Fill Valves

Full Specifications

Product Features	Service Check Valves for air vents and expansion tanks allow easy field service without draining system
Valve Type	Boiler Valve, Filling Valve
Compatible With	DS06 Pressure Regulating Valves
DN Size	DN15
Inlet Connection Size	1/2 in
Inlet Connection Type	Female NPT
Outlet Connection Size	1/2 in
Outlet Connection Type	Male NPT
Media Temperature (Max)	240 °F, 115 °C
Operating Pressure (Max)	100 psi, 689 kPA
