Sioux Chief 652-AWG Hydra-Rester 1/2" PEX F1960

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Sioux Chief 652-A 1/2" MIP Hydra-Rester ASSE-A Sioux Chief 652-AS 1/2" Male Sweat Hydra-Rester ASSE-A.

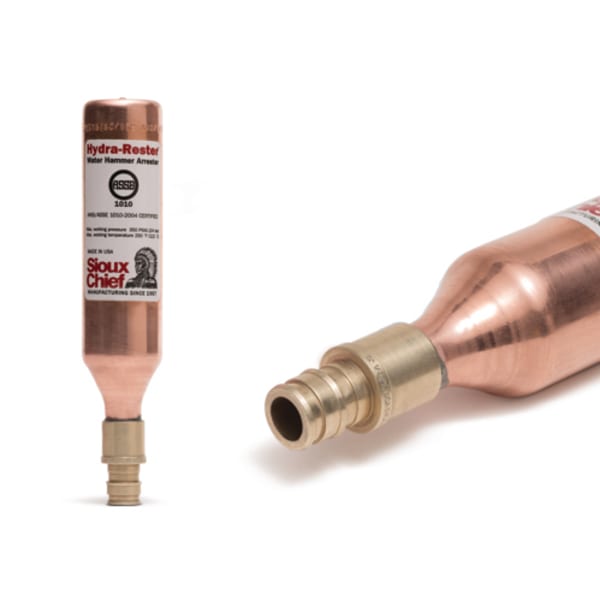

Sioux Chief 652-AWG is a HydraRester water hammer arrester, size A, with a 1/2" PEX F1960 expansion connection.

HydraRester arresters absorb the pressure spike (water hammer) created when quick-closing valves shut off, such as those on washing machines, dishwashers and flush valves. Size A is rated for 1-11 fixture units, following the ANSI/ASSE 1010 sizing system; pick the size from the fixture-unit load of the branch it protects.

The arrester is certified by ASSE to ANSI/ASSE 1010, lifetime cycle tested to withstand 10,000 shock cycles, and can be installed at any angle without an access panel.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 652-AWG
• Size: A (ASSE 1010)
• Fixture units: 1-11
• Connection: 1/2" F1960 expansion
• Standards: ANSI/ASSE 1010
• UPC: 739236423122
• Category: F1960 Expansion Fittings

See also: water hammer arresters, F1960 expansion fittings, all Sioux Chief.
