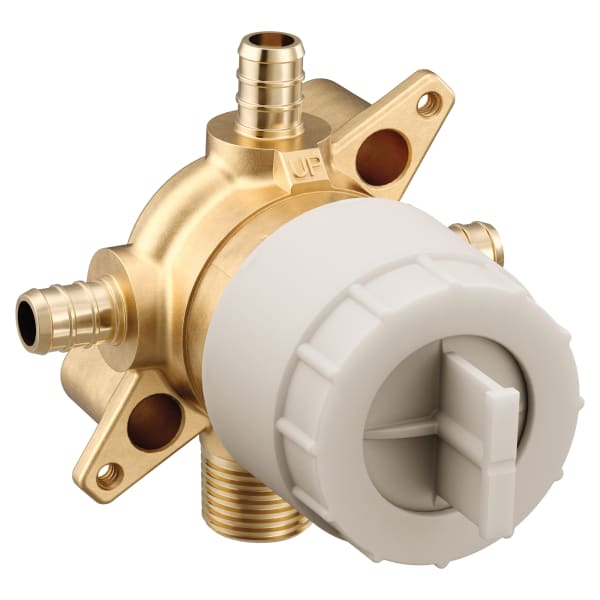

Moen U140X M-CORE 3-Series 4 Port Tub and Shower Mixing Valve with Crimp Ring PEX Connections

Moen U140X is the M-CORE 3-Series 4 Port Tub and Shower Mixing Valve with Crimp Ring PEX Connections.

This is an M-CORE 3-Series 4-port tub and shower mixing valve, the rough-in body installed behind the finished wall. M-CORE trim kits install over it and are ordered separately.

It has Crimp ring PEX connections. Choose the connection type that matches the supply piping, set the valve depth to the finished wall, and confirm the trim you plan to use is an M-CORE trim of the matching series.

What's included

• M-CORE 4-port tub/shower brass rough valve (no stops)
• Flush / test plug
• Plaster ground
• 1/2" crimp-ring PEX inlets, CC/IPS tub outlet

Cartridge: Not included in this rough-in. The M-CORE cartridge ships with the Moen M-CORE trim kit.

Trim (sold separately)

The handle and escutcheon are not included. Finish this valve with a Moen M-CORE trim kit (for example M-CORE 3-Series). Posi-Temp (1222) trims do not fit M-CORE valves.

Specifications

• Brand: Moen
• Manufacturer Part #: U140X
• Valve platform: M-CORE 3-Series
• Ports: 4
• Connections: Crimp ring PEX
• UPC: 026508319536
• Category: Shower and Tub-Shower Valves
