Moen M-CORE 3-Series 3 Port Shower Mixing Valve with CC/IPC Connections and Stops

Roll over image to zoom in Click on image to zoom

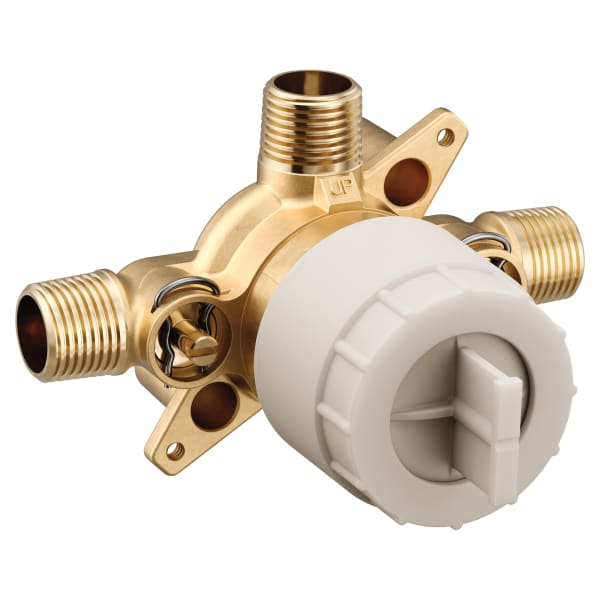

Moen U130CIS M-CORE 3-Series 3 Port Shower Mixing Valve with CC/IPC Connections and Stops

Name: Moen U130CIS M-CORE 3-Series 3 Port Shower Mixing Valve with CC/IPC Connections and Stops
Brand: Moen
SKU: MOEN-U130CIS
Price: 87.20 USD
Availability: InStock

MoenSKU: MOEN-U130CIS

Price:

$87.20

Stock:

Only 6 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.3 lb
Box size: 5.1 × 5 × 5 in

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Commercial or Residential	Primarily Residential
Inlet Size	1/2

Moen U130CIS is the M-CORE 3-Series 3 Port Shower Mixing Valve with CC/IPC Connections and Stops.

This is an M-CORE 3-Series 3-port shower mixing valve, the rough-in body installed behind the finished wall. M-CORE trim kits install over it and are ordered separately.

It has CC/IPC connections and integral stops, which let you shut off the supply at the valve for service. Choose the connection type that matches the supply piping, set the valve depth to the finished wall, and confirm the trim you plan to use is an M-CORE trim of the matching series.

What's included

M-CORE 3-port (shower-only) brass rough valve
1/4-turn stops on each inlet
Flush / test plug
Plaster ground
1/2" CC/IPS connections

Cartridge: Not included in this rough-in. The M-CORE cartridge ships with the Moen M-CORE trim kit.

Trim (sold separately)

The handle and escutcheon are not included. Finish this valve with a Moen M-CORE trim kit (for example M-CORE 3-Series). Posi-Temp (1222) trims do not fit M-CORE valves.
