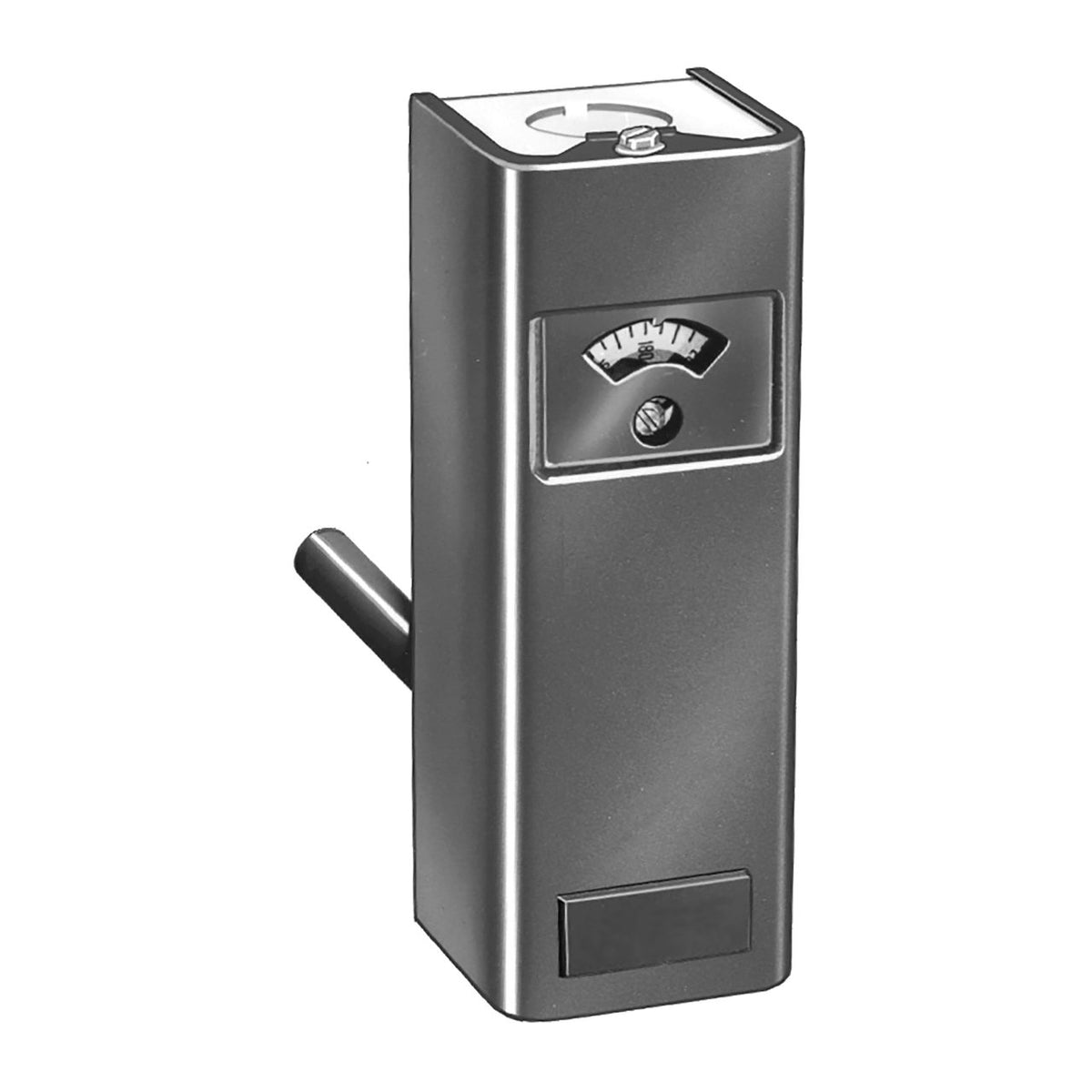

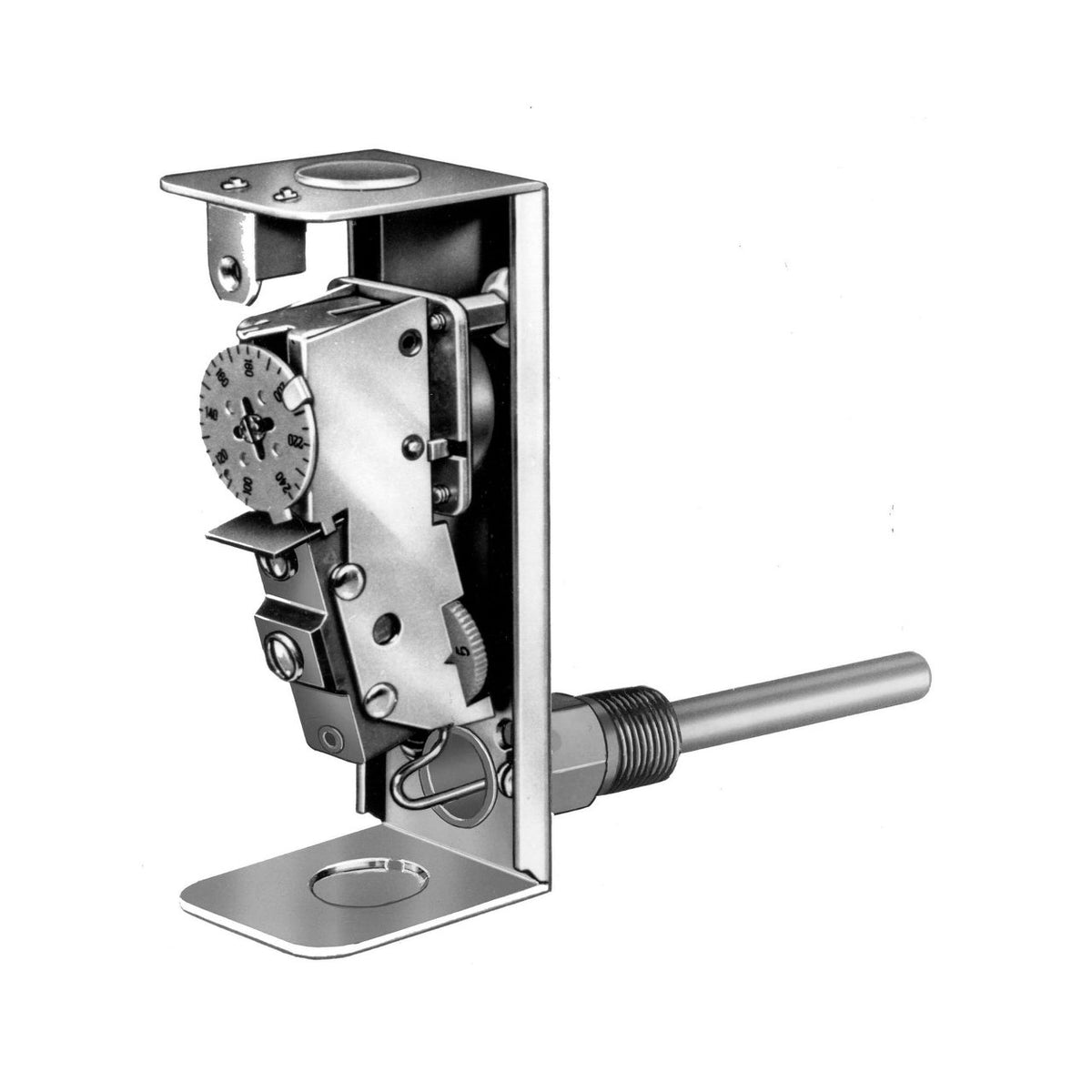

Resideo L4006G1006/U Aquastat

Aquastat.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: L4006G1006/U
• Application: Circulator Control and High Limit
• Color: Gray
• Compatible With: Hot Water, Hydronic Heating Systems
• Operating Temperature (Min): 100 °F, 38 °C
• Operating Temperature (Max): 200 °F, 93 °C
• Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
• Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
• Switch Action: Contacts break on temperature rise
• Switch Type: 2x SPST
• Insulation Depth: 4 in
• Bulb Diameter: 3/8 in, 10 mm
• Bulb Length: 2 7/8 in, 73 mm
• Bulb Material: Copper (Cu)
• Product Height: 5.63 in, 143 mm
• Product Width: 2 in, 51 mm
• Ambient Temperature (Max): 150 °F, 66 °C
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267048941
• Country of Origin: MX
• Category: Aquastats & Wells
