Description

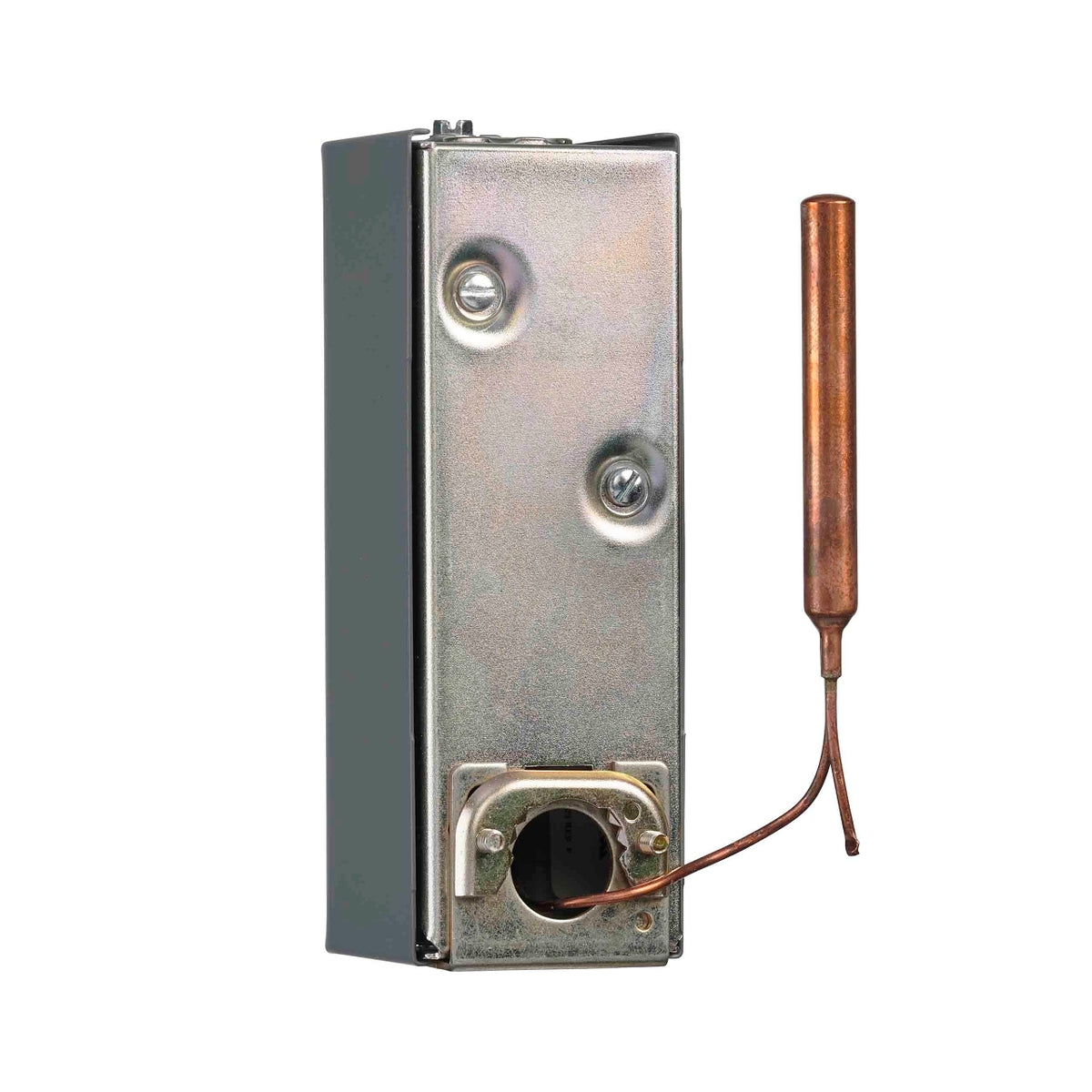

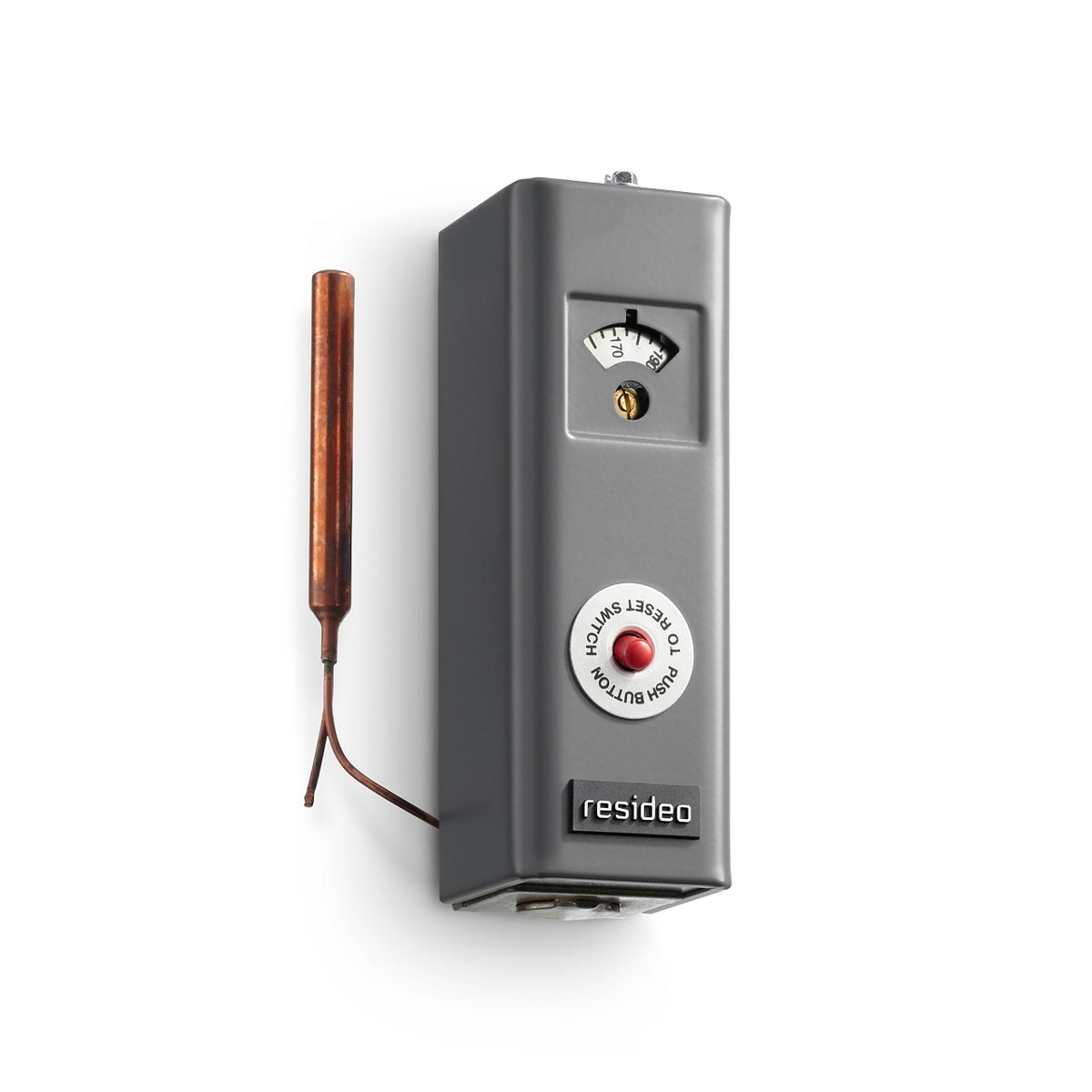

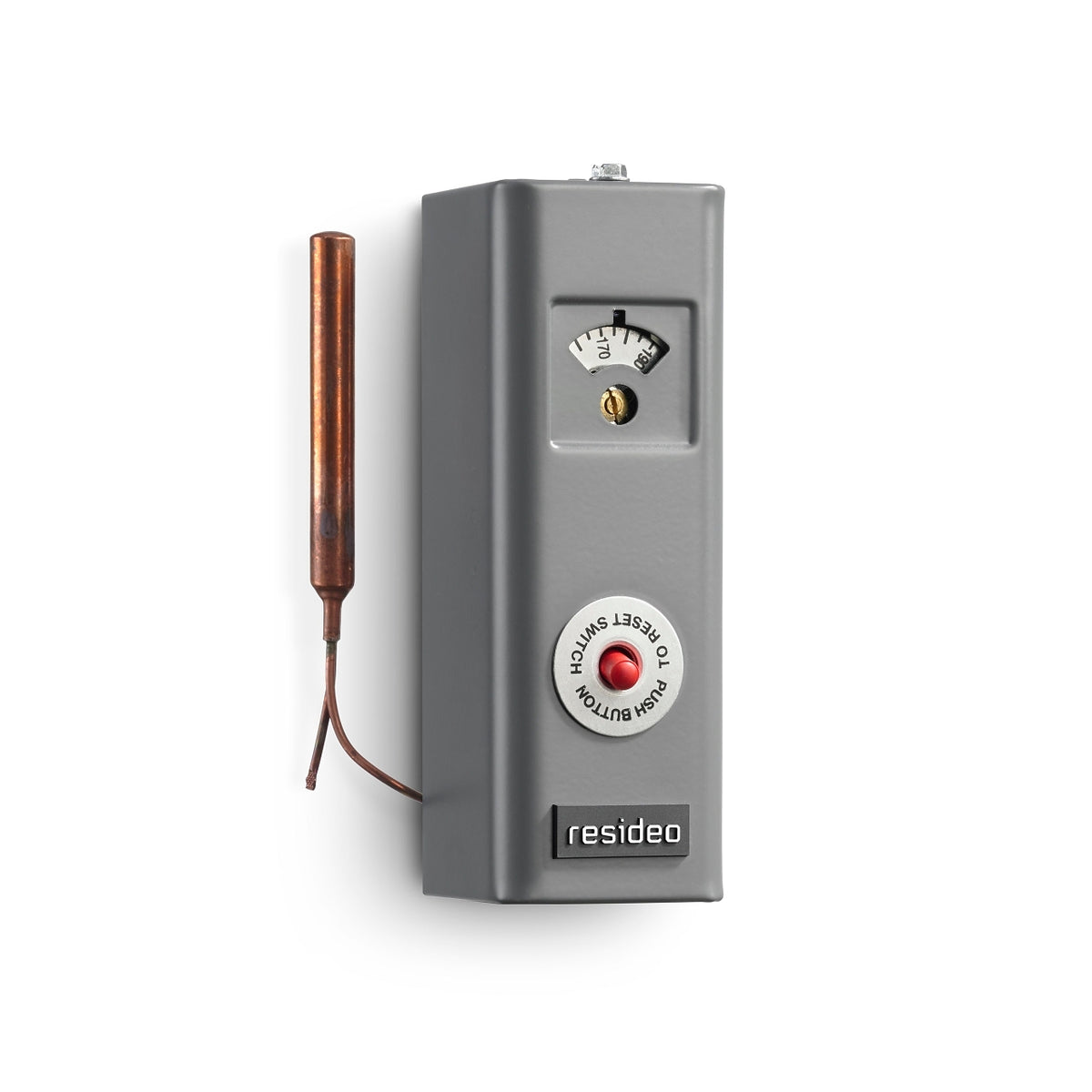

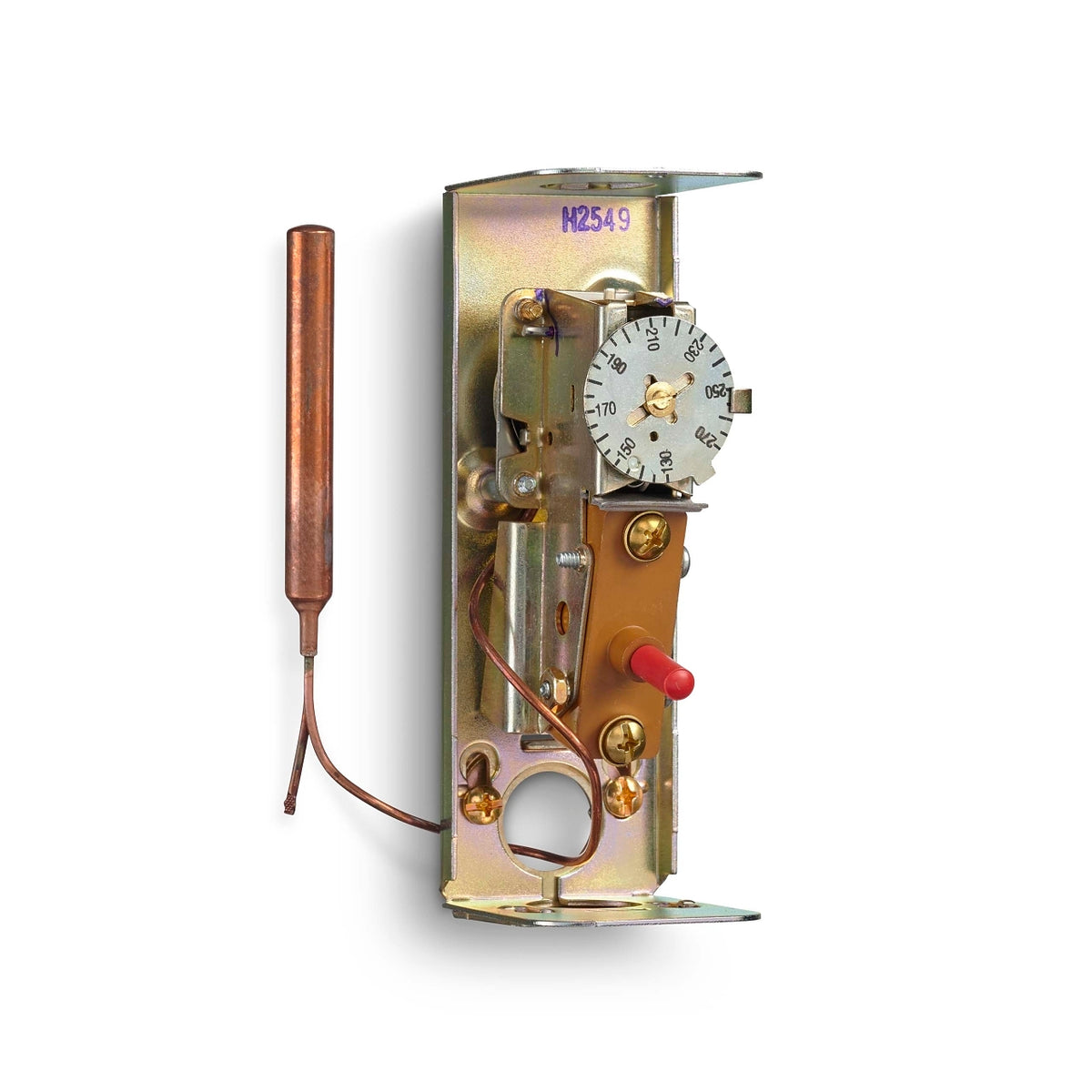

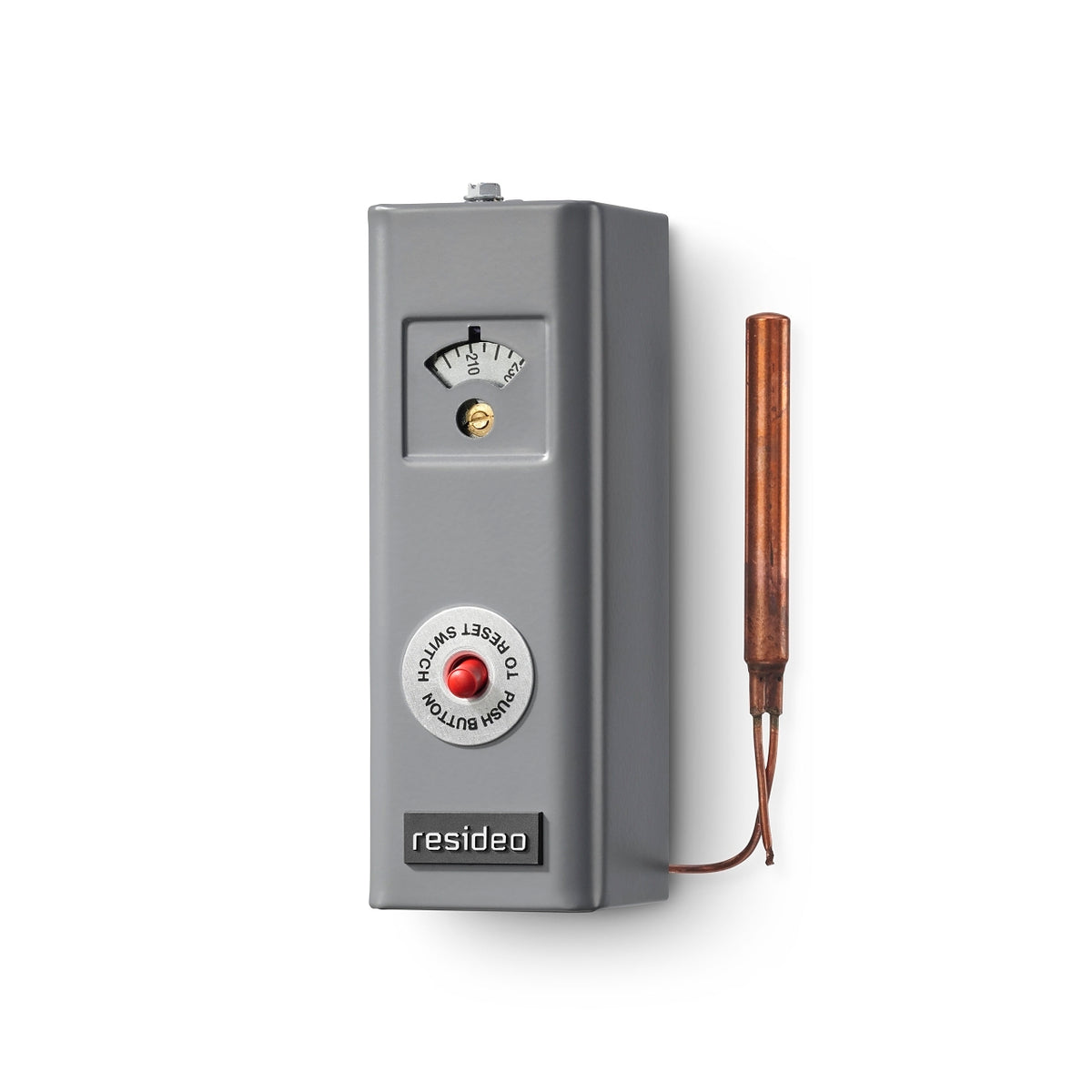

Manual reset aquastat that breaks on temperature rise, 130–270°F range with 250°F stop, supplied with a 1/2 in well.
Features
- Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to setpoint
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Direct or well immersion of the sensing element
- Models available for strap-on mounting
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
- Models include heat-conductive compound
- Select models have wells
- UL limit rated device
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: L4006E1000/U
- Application: High Limit Control
- Approvals and Standards: AGA Certified, UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
- Color: Metallic
- Compatible With: Hot Water, Hydronic Heating Systems
- Includes: Stop factory-set at 250 F (121 C)
- Mounting Type: Horizontal Mount, Vertical Mount
- Differential Temperature: Manual Reset
- Limit Stop: Factory set at 250 °F, Factory set at 121 °C
- Operating Temperature (Min): 130 °F, 54 °C
- Operating Temperature (Max): 270 °F, 132 °C
- Electrical Ratings at Full Load: 8A at 120 Vac, 1.3A at 240 Vac
- Electrical Ratings at Locked Rotor: 48A at 120 Vac, 30.6A at 240 Vac
- Electrical Ratings Millivolt: 0.25 A at 0.25 to 12 Vdc
- Switch Action: SPST, Contacts break on temperature rise
- Well Spud Size: 1/2 in 14 NPT, 13 mm 14 NPT
- Capillary Length: 1 1/2 in
- Bulb Diameter: 3/8 in, 10 mm
- Bulb Length: 2-7/8 in, 73 mm
- Product Height: 5.63 in
- Product Length: 2 in
- Product Width: 2.13 in
- Product Weight: 1.46 lb
- Hazmat Information: Dangerous Goods in Excepted Quantities
- UPC: 085267048873
- Country of Origin: MX
- Category: Aquastats & Wells
