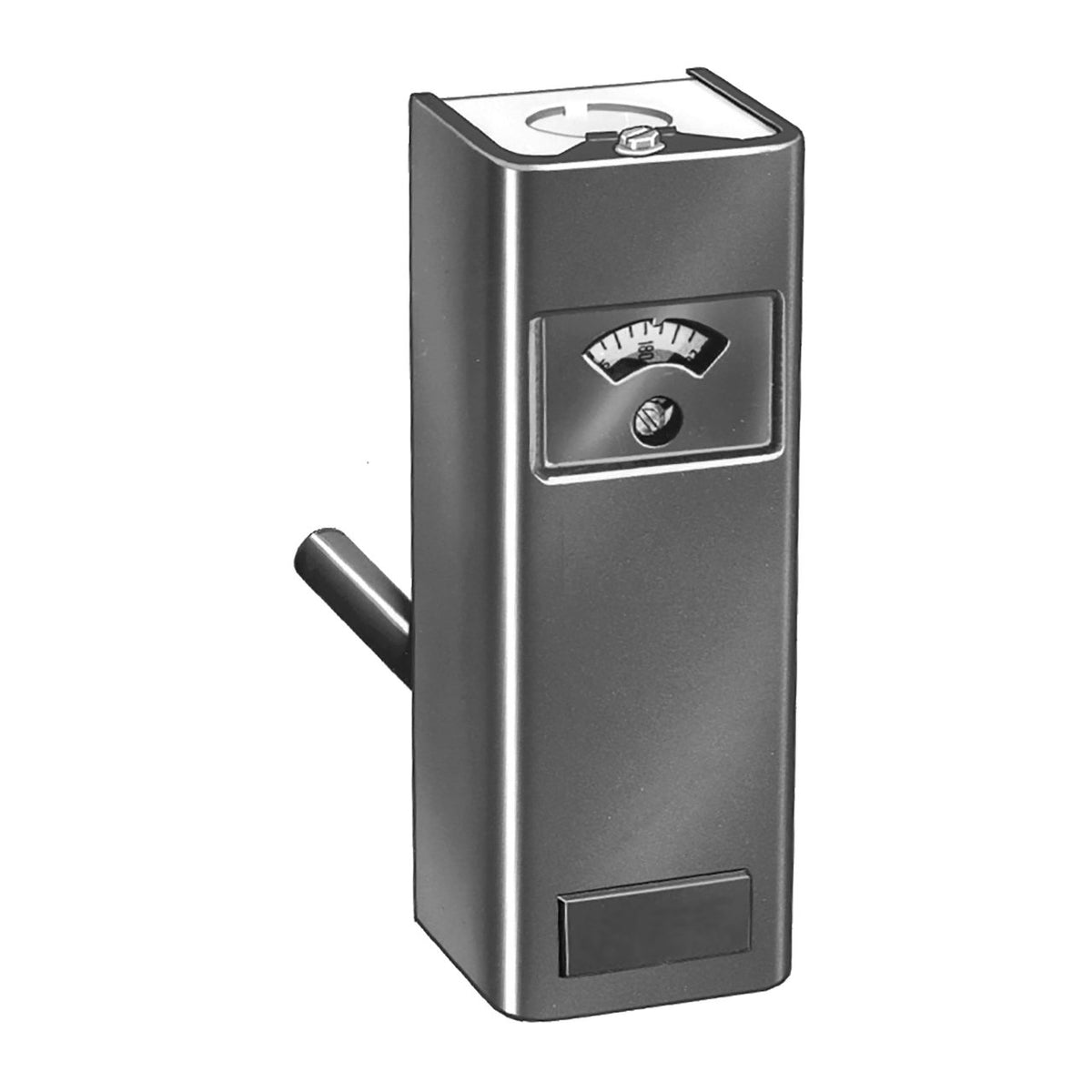

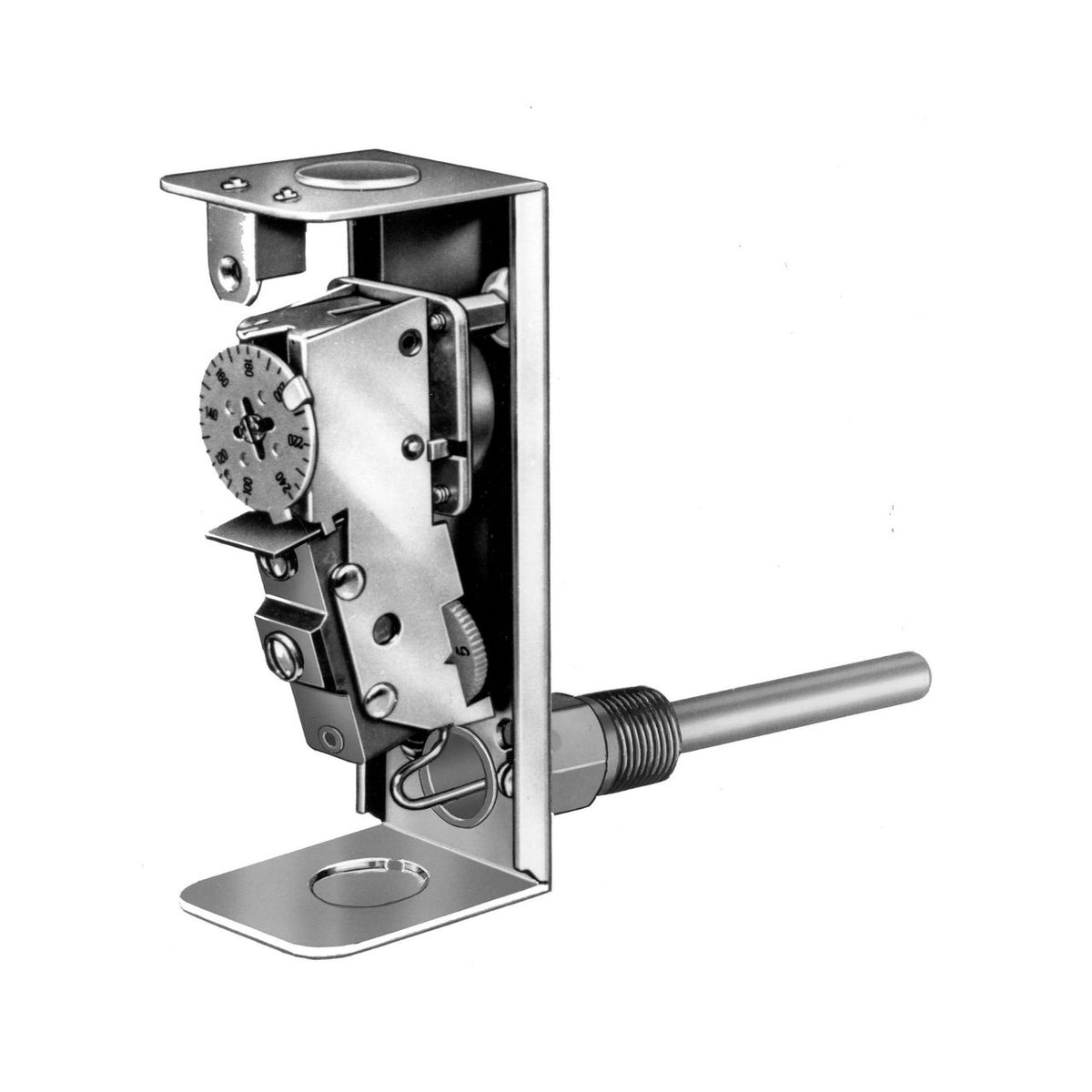

Resideo L4006B1007/U Aquastat, Makes on Rise, 100–240°F, Non-Adjustable Differential

Aquastat that makes on temperature rise, 100–240°F range with non-adjustable differential, horizontal 1/2 in x 3-3/8 in element for a 1-1/2 in insulation well.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: L4006B1007/U
• Application: Circulator Control
• Approvals and Standards: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1, AGA Certified
• Color: Gray
• Compatible With: Hot Water, Hydronic Heating Systems
• Includes: 1/2 in Well - 123869A
• Differential Temperature: 5 °F Fixed, 3 °C Fixed
• Operating Temperature (Min): 100 °F, 38 °C
• Operating Temperature (Max): 240 °F, 116 °C
• Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
• Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
• Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 V DC
• Switch Action: Contacts break on temperature rise
• Switch Type: SPST
• Well Spud Size: 1/2 in 14 NPT, 13 mm 14 NPT
• Insulation Depth: 1.5 in
• Capillary Length: 1 1/2 in
• Bulb Diameter: 3/8 in, 10 mm
• Bulb Length: 2 7/8 in, 73 mm
• Bulb Material: Copper (Cu)
• Product Height: 5.63 in, 143 mm
• Product Width: 2 in, 51 mm
• Ambient Temperature (Max): 150 °F, 66 °C
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267048804
• Country of Origin: MX
• Category: Aquastats & Wells
